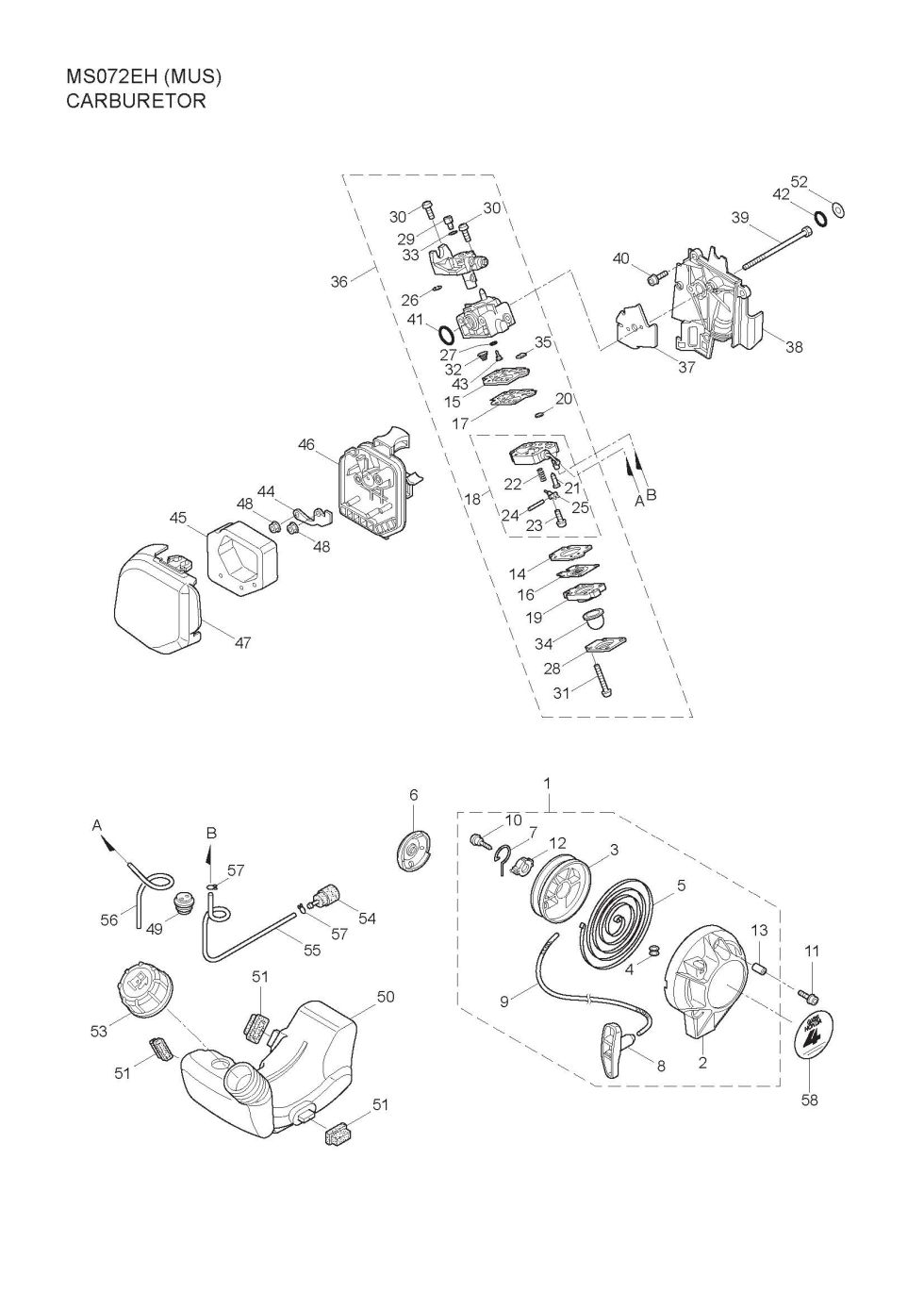

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS072EH. You have selected the Carburetor diagram for the Maruyama MS072EH Engine Driven Sprayers. Below you will find an interactive part diagram for the MS072EH Carburetor. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS072EH parts not shown in this diagram you may select from one of the other MS072EH part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 640159 640159 - USE: 642376
$37.99
3 640161 640161 - REEL RECOIL STARTER
$17.99
4 626716 626716 - GUIDE, ROPE
$8.99
5 640162 640162 - SPRING RECOIL STARTE
$23.99
6 640163 640163 - RECOIL STARTER PULLE
$11.99
7 640164 640164 - SWING ARM MS072H
$8.99
8 626721 626721 - KNOB, RECOIL STARTER
$18.99
9 626722 626722 - ROPE,RECOIL STARTER
$16.99
10 626723 626723 - NLA SCREW SET
$5.99
12 626724 626724 - COLLAR
$5.99
13 633492 633492 - COLLAR A HEAD COVER
$2.99
14 626734 626734 - NLA GASKET, METERING
$10.99
15 640168 640168 - USE: 642386
$8.99
16 640169 640169 - DIAPHRAM MS072H
$29.99
17 626738 626738 - NLA DIAPHRAGM PUMP
$15.99
18 640170 640170 - BODY ASSY.,PUMP
$48.99
19 626740 626740 - BODY ASSY, AIR PURGE
$33.99
20 640171 640171 - SCREEN INLET
$2.99
21 626742 626742 - NLA VALVE, INLET NEE
$17.99
22 626743 626743 - SPRING, METERING LEV
$9.99
24 626745 626745 - NLA PIN, METERING LE
$7.99
25 626746 626746 - LEVER, METERING
$11.99
26 640172 640172 - RETAINING RING
$5.99
27 626748 626748 - USE: 261871
$6.99
28 626749 626749 - NLA COVER PRIMING PU
$13.99
29 626750 626750 - SWIVEL
$16.99
30 626751 626751 - NLA SCREW THROTTLE C
$5.99
31 626752 626752 - NLA SCREW, PUMP COVE
$5.99
32 626753 626753 - NLA SPRING, PUMP
$5.99
33 626754 626754 - NLA WASHER
$5.99
34 626755 626755 - PUMP,PRIMER
$16.99
36 643085 643085 - NLA CARB ASSY
$167.99
37 626761 626761 - PACKING, CARBURETOR
$6.99
41 626766 626766 - NLA O-RING
$2.99
44 640181 640181 - PLATE
$11.99
45 640182 640182 - AIR CLEANER ELEMENT
$2.99
46 640183 640183 - USE: 642402
$2.99
47 640184 640184 - USE: 642403
$44.99
48 626244 626244 - NLA FLANGE NUT 5MM
$2.99
49 626784 626784 - GROMMET FUEL TUBE
$16.99
50 640192 640192 - FUEL TANK
$48.99
51 640193 640193 - RUBBER DAMPER
$5.99
53 640195 640195 - NLA CAP ASSY FUEL
$23.99
54 626790 626790 - FUEL FILTER
$25.99
57 626793 626793 - NLA CLIP, TUBE
$5.99
