 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |

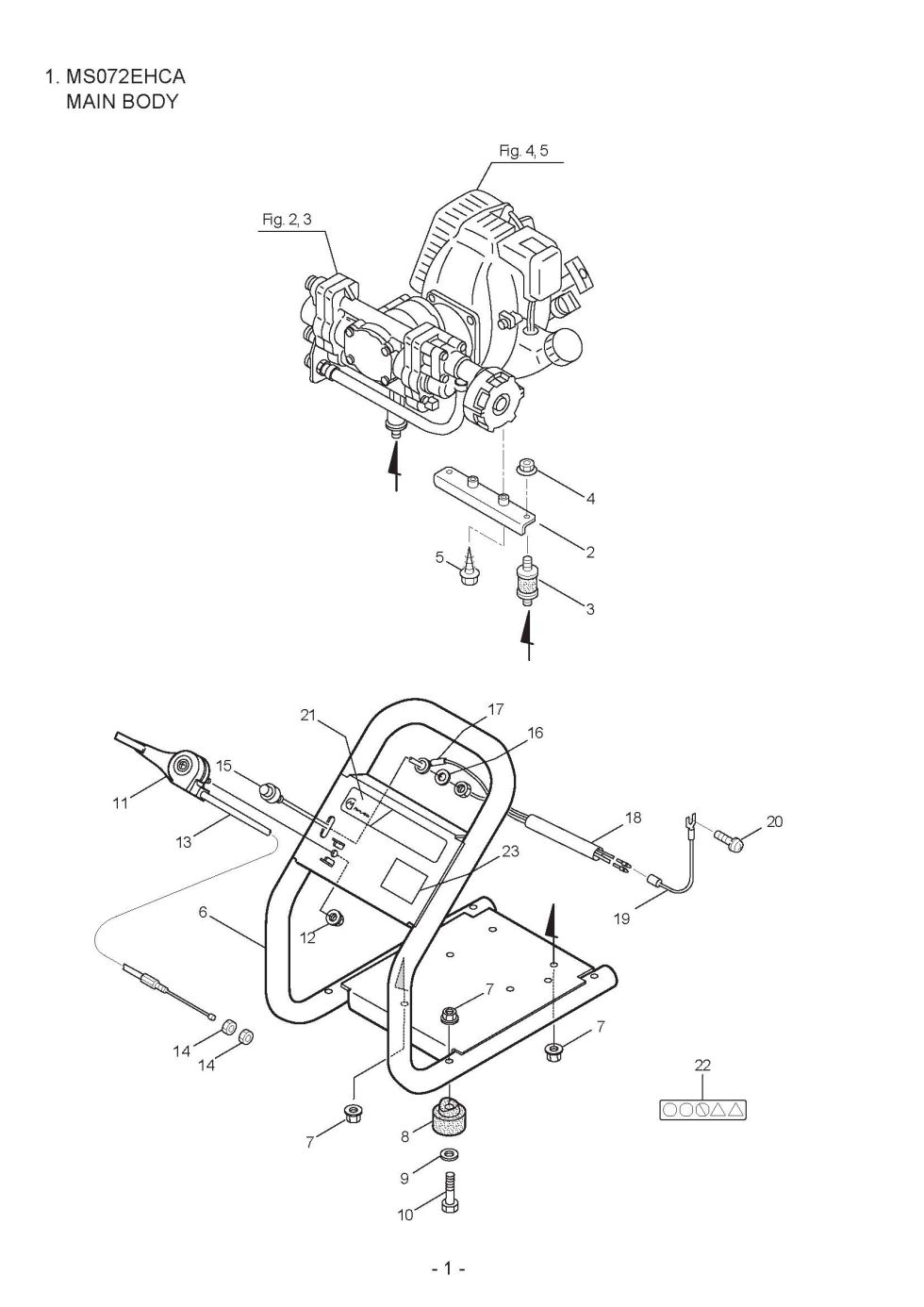

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS072EH-CA. You have selected the Main Body diagram for the Maruyama MS072EH-CA Piston Pumps. Below you will find an interactive part diagram for the MS072EH-CA Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS072EH-CA parts not shown in this diagram you may select from one of the other MS072EH-CA part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 124705 | 124705 - BRACKET ASSY |
$19.99
|
|
| 3 | 264531 | 264531 - BUFFER |
$8.99
|
|
| 4 | 127230 | 127230 - FLANGE NUT |
$2.99
|
|
| 5 | 127236 | 127236 - TAPPING SCREW |
$2.99
|
|
| 6 | 122315 | 122315 - FRAME |
$213.99
|
|
| 8 | 100559 | 100559 - BUFFER |
$7.99
|
|
| 9 | 019056 | 019056 - WASHER |
$2.99
|
|
| 10 | 082117 | 082117 - BOLT |
$2.99
|
|
| 11 | 115148 | 115148 - THROTTLE LEVER |
$17.99
|
|
| 12 | 127226 | 127226 - FLANGE NUT |
$2.99
|
|
| 13 | 125023 | 125023 - THROTTLE WIRE |
$7.99
|
|
| 14 | 127218 | 127218 - NUT |
$2.99
|
|
| 15 | 119280 | 119280 - STOP SWITCH |
$24.99
|
|
| 16 | 126573 |
126573 - WASHER |
$2.99
|
|
| 17 | 119281 | 119281 - EARTH CORD |
$5.99
|
|
| 18 | 119282 | 119282 - VINYL HOSE |
$2.99
|
|
| 19 | 118348 | 118348 - WIRE |
$2.99
|
|
| 20 | 092044 | 092044 - SCREW |
$2.99
|
|
| 22 | 266959 | 266959 - LABEL |
$6.99
|
|
| 23 | 285188 | 285188 - LABEL |
$2.99
|
