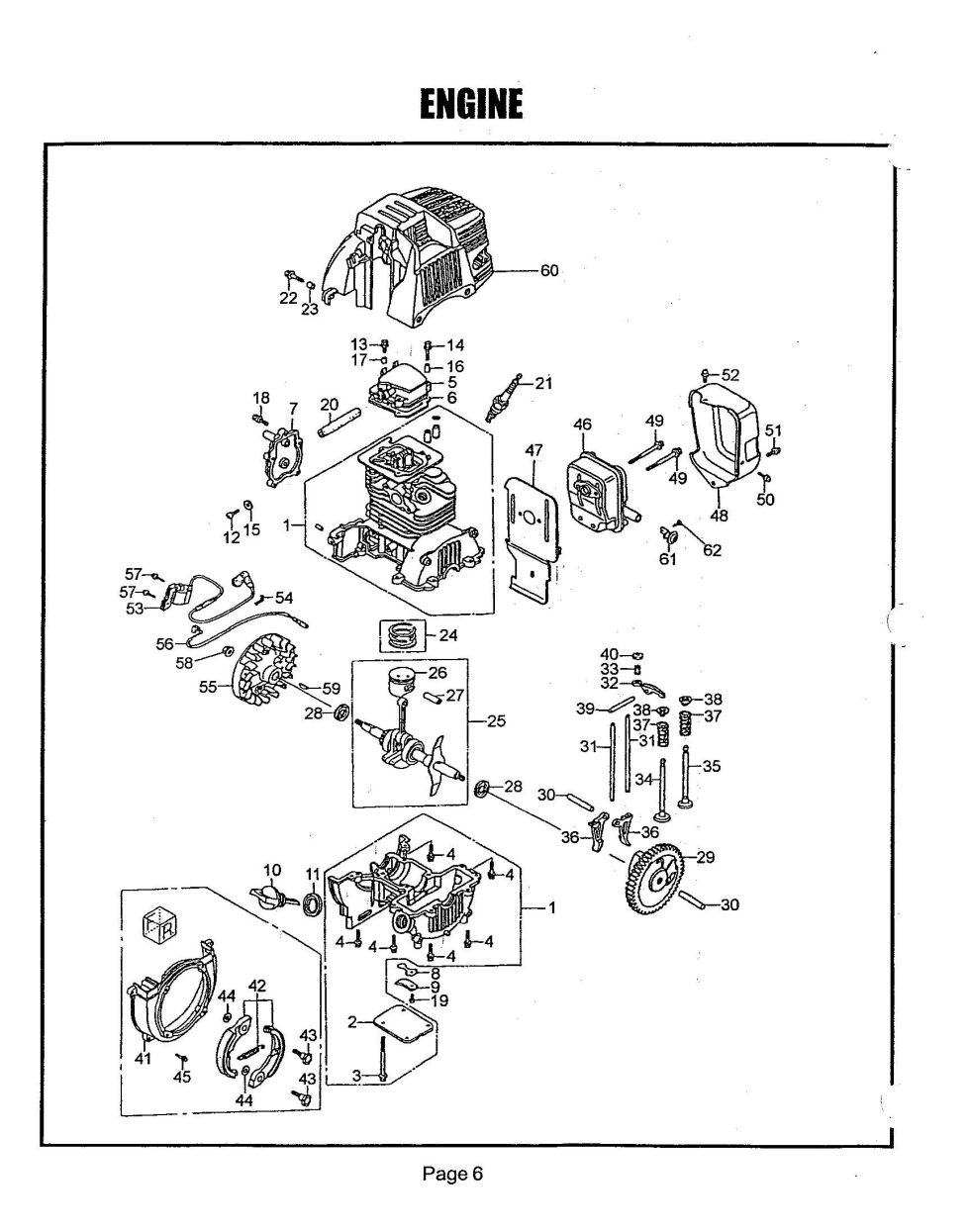

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS071EH. You have selected the Engine diagram for the Maruyama MS071EH Piston Pumps. Below you will find an interactive part diagram for the MS071EH Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS071EH parts not shown in this diagram you may select from one of the other MS071EH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
1 626664 626664 - NLA CRANKCASE SET CO
$298.99
2 626670 626670 - COVER, OIL OUTLET VA
$21.99
3 626674 626674 - NLA FLANGE BOLT
$2.99
4 626675 626675 - NLA BOLT, FLANGE (5X
$5.99
5 626666 626666 - COVER COMP, HEAD
$41.99
6 626667 626667 - GASKET,HEAD COVER
$11.99
7 626668 626668 - COVER, CAMSHAFT
$29.99
8 626671 626671 - NLA OUTLET, MACHINED
$12.99
9 626672 626672 - NLA PLATE STOPPER
$7.99
10 626673 626673 - CAP, OIL FILLER
$12.99
11 626334 626334 - GASKET OIL FILLER CA
$13.99
12 626676 626676 - NLA SCREW, PAN
$2.99
13 626677 626677 - FLANGE BOLT
$6.99
14 626678 626678 - NLA BOLT, FLANGE (5X
$10.99
15 626679 626679 - NLA WASHER, SEALING
$6.99
16 626680 626680 - COLLAR, HEAD COVER
$5.99
17 626681 626681 - COLLAR, TOP COVER
$6.99
18 626682 626682 - NLA BOLT
$2.99
19 626683 626683 - NLA SCREW, PAN
$2.99
20 626684 626684 - TUBE
$6.99
21 627048 627048 - USE: 626870
$20.99
24 626696 626696 - NLA RING SET, PISTON
$29.99
25 626693 626693 - CRANKSHAFT, COMP
$116.99
26 626689 626689 - NLA PISTON
$57.99
27 626691 626691 - PIN, PISTON
$18.99
28 626695 626695 - NLA OIL SEAL, 12X5X6
$16.99
29 626698 626698 - NLA CAMSHAFT ASSY
$45.99
30 626699 626699 - ROLLER (5X23.8)
$6.99
31 626700 626700 - ROD, PUSH
$13.99
32 626701 626701 - ARM, VALVE ROCKER
$21.99
33 626702 626702 - PIVOT, ROCKER ARM
$9.99
34 626703 626703 - NLA MACHINED DISC IN
$24.99
35 626705 626705 - NLA MACHINED DISC EX
$28.99
36 626706 626706 - LIFTER, VALVE
$21.99
37 626707 626707 - NLA SPRING, VALVE
$2.99
38 626708 626708 - RETAINER, VALVE SPRI
$11.99
39 626709 626709 - ROLLER
$9.99
40 626710 626710 - NLA NUT,TAPPET ADJUS
$2.99
41 626726 626726 - COVER, FAN
$62.99
42 626729 626729 - CLUTCH ASSY
$62.99
43 626730 626730 - BOLT,CLUTCH (6MM)
$9.99
44 626732 626732 - CLUTCH WASHER (6X15)
$5.99
46 626874 626874 - NLA MUFFLER COMP
$47.99
47 626779 626779 - GUIDE, AIR EX
$21.99
48 626780 626780 - TOP INNER COVER
$26.99
49 626781 626781 - BOLT, FLANGE (5X50)
$6.99
50 626782 626782 - NLA SCREW-WASHER (5X
$2.99
51 626763 626763 - NLA SCREW-WASHER (5X
$2.99
52 626783 626783 - NLA SCREW-WASHER (5X
$2.99
53 626794 626794 - NLA COIL ASSY, IGNIT
$111.99
54 626795 626795 - NLA TUBE A, CORRUGAT
$6.99
55 626796 626796 - NLA FLYWHEEL COMP
$76.99
56 626798 626798 - CORD, STOP SWITCH
$24.99
57 626799 626799 - NLA BOLT-WASHER (5X1
$2.99
58 625920 625920 - NLA NUT, FLANGE 8MM
$2.99
59 626800 626800 - WOODRUFF KEY (16X12)
$6.99
60 626801 626801 - NLA COVER COMP
$62.99
61 626878 626878 - NLA SPARK ARRESTER
$27.99
62 583786 583786 - NLA TAPPING SCREW
$2.99
