 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

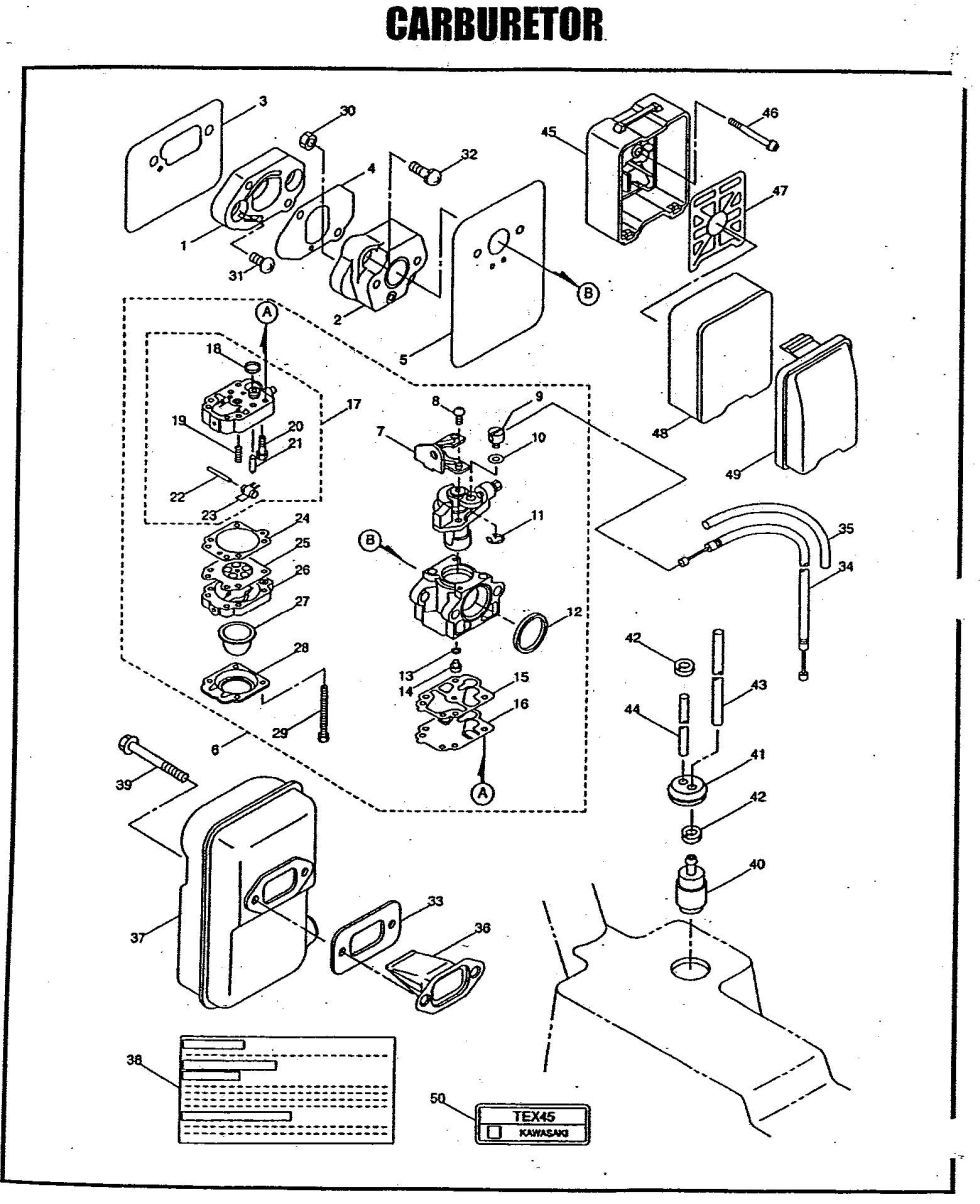

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 625867 | 625867 - ADAPTER |
$38.99
|
|
| 2 | 625866 | 625866 - INSULATOR |
$29.99
|
|
| 3 | 625862 | 625862 - GASKET |
$10.99
|
|
| 4 | 625863 | 625863 - GASKET (BL4500) |
$19.99
|
|
| 5 | 625864 | 625864 - GASKET |
$14.99
|
|
| 6 | 630147 | 630147 - CARBURETOR ASSY |
$166.99
|
|
| 7 | 624525 | 624525 - BRACKET |
$35.99
|
|
| 8 | 577179 | 577179 - SCREW |
$8.99
|
|
| 9 | 598415 | 598415 - ARM |
$21.99
|
|
| 10 | 624532 | 624532 - WASHER |
$7.99
|
|
| 11 | 577175 | 577175 - SNAP RING |
$8.99
|
|
| 12 | 624528 | 624528 - NLA PACKING |
$2.99
|
|
| 13 | 577182 | 577182 - USE: 261871 |
$8.99
|
|
| 14 | 630148 | 630148 - MAIN JET #51 |
$26.99
|
|
| 15 | 577184 | 577184 - GASKET |
$22.99
|
|
| 16 | 577185 | 577185 - DIAPHRAGM |
$18.99
|
|
| 17 | 626812 | 626812 - USE: 626822 |
$45.99
|
|
| 18 | 624430 | 624430 - FILTER |
$23.99
|
|
| 19 | 624434 | 624434 - SPRING |
$13.99
|
|
| 20 | 624432 | 624432 - SCREW |
$11.99
|
|
| 21 | 624431 | 624431 - FLOAT VALVE |
$18.99
|
|
| 22 | 624433 | 624433 - PIN |
$8.99
|
|
| 23 | 624429 | 624429 - LEVER |
$19.99
|
|
| 24 | 598407 | 598407 - USE: 262993 |
$7.99
|
|
| 25 | 944219 | 944219 - USE: 261873 |
$12.99
|
|
| 26 | 598413 | 598413 - BODY |
$79.99
|
|
| 27 | 577191 | 577191 - USE: 261874 |
$15.99
|
|
| 28 | 598409 | 598409 - COVER, PRIMER PUMP |
$27.99
|
|
| 29 | 598417 | 598417 - SCREW |
$2.99
|
|
| 30 | 594598 | 594598 - NUT |
$2.99
|
|
| 31 | 625868 | 625868 - SCREW |
$2.99
|
|
| 32 | 579565 | 579565 - SCREW |
$2.99
|
|
| 33 | 579566 | 579566 - GASKET |
$15.99
|
|
| 34 | 120702 | 120702 - THROTTLE WIRE |
$16.99
|
|
| 35 | 069502 | 069502 - VINYL HOSE |
$2.99
|
|
| 36 | 579567 | 579567 - SPARK ARRESTER |
$54.99
|
|
| 37 | 625869 | 625869 - MUFFLER COMP |
$110.99
|
|
| 38 | 630154 | 630154 - NLA DECAL |
$5.99
|
|
| 39 | 944440 | 944440 - BOLT |
$2.99
|
|
| 40 | 625872 | 625872 - FILTER, FUEL |
$28.99
|
|
| 41 | 597949 | 597949 - GROMMET |
$18.99
|
|
| 42 | 597948 | 597948 - USE: 649366 |
$2.99
|
|
| 43 | 625873 | 625873 - TUBE |
$24.99
|
|
| 44 | 625874 | 625874 - TUBE(3X6X130L) |
$13.99
|
|
| 45 | 630150 | 630150 - AIR FILTER CASE ASSY |
$29.99
|
|
| 46 | 630153 | 630153 - SCREW(M5X30) |
$7.99
|
|
| 47 | 630152 |
630152 - USE: 263717 (obsolete) use part #263717 |
$14.99
|
|
| 48 | 630149 | 630149 - AIR FILTER ELEMENT |
$30.99
|
|
| 49 | 630151 |
630151 - USE: 263713 (obsolete) use part #263713 |
$19.99
|
|
| 50 | 626816 | 626816 - NLA DECAL |
$2.99
|
