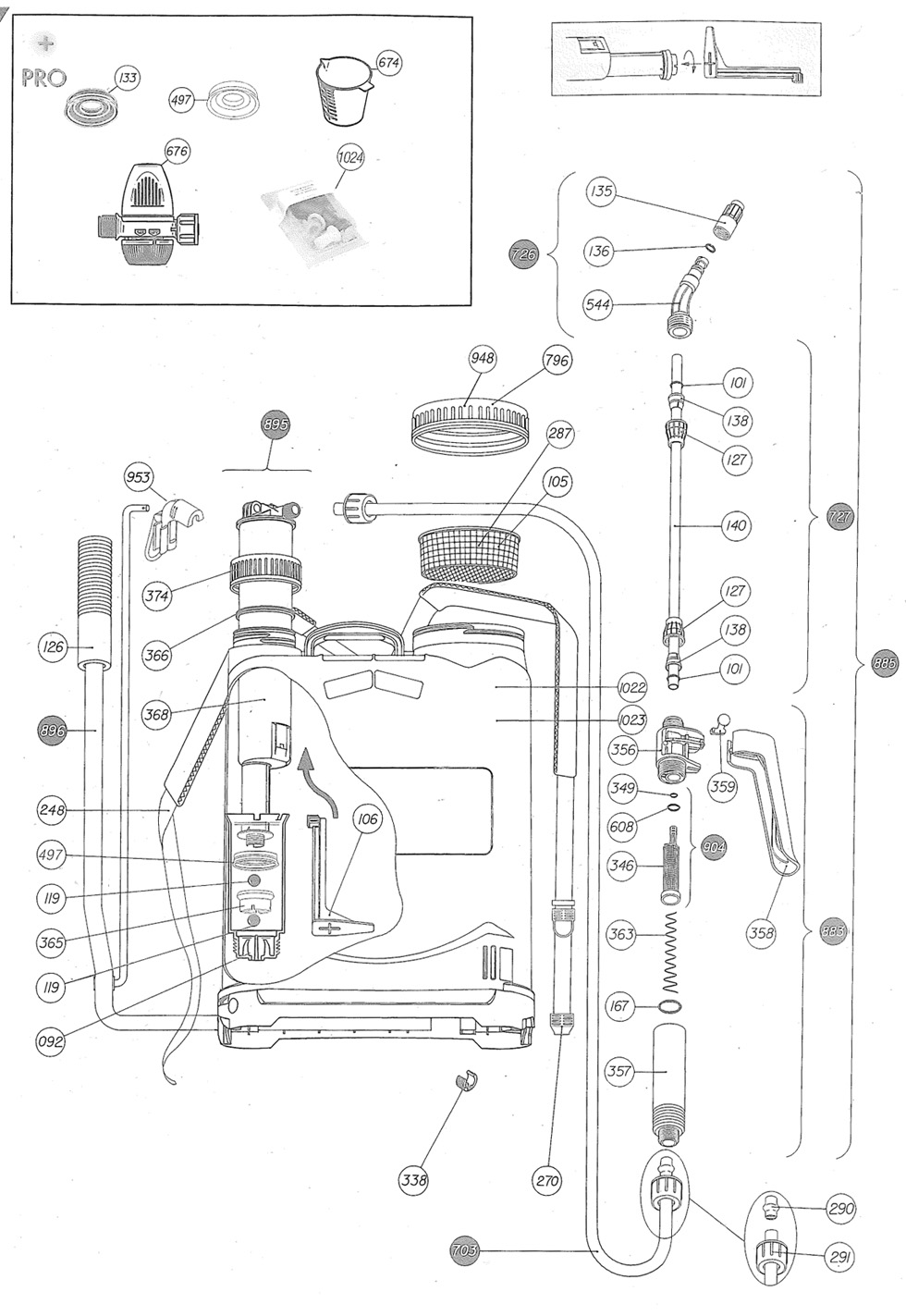

Thanks for using the MaruyamaParts.com parts lookup system. In order to find parts for your MX4 please select from the assemblies below. If you are not able to find the parts for your Maruyama MX4 or this is not your model and you need to find parts for a different Maruyama Manual Sprayers please email us or use our Live Chat function for help. Thanks again for shopping with us for your Maruyama MX4 parts and accessories.

Position number SKU Product title Price
092 842092 842092 - CYLINDER WITH BALL
$24.99
101 842043 842043 - ROUND GASKET AN-8
$2.99
105 842080 842080 - TANK FILTER 16 L.
$7.99
106 842102 842102 - AGITATOR
$2.99
119 842041 842041 - STAINLESS STELL BALL
$2.99
126 842095 842095 - GRIP
$2.99
127 842065 842065 - CONE NUT
$2.99
133 842079 842079 - RUBBER SEAL
$2.99
135 842076 842076 - NOZZLE 1
$2.99
136 842042 842042 - ROUND GASKET AN-5
$2.99
138 842068 842068 - 1CONE
$2.99
140 842082 842082 - 1TUBE
$13.99
167 842044 842044 - ROUND GASKET AN-14
$2.99
248 842090 842090 - STRAP
$8.99
270 842091 842091 - STRAP WITH HOOK
$9.99
290 842060 842060 - HOSE BUSHING
$2.99
291 842111 842111 - NUT
$2.99
338 842096 842096 - BASE BUSHING
$2.99
346 842103 842103 - LANCE FILTER
$2.99
349 842047 842047 - ROUND GASKET AN-3
$2.99
357 842098 842098 - GRIP
$2.99
359 842100 842100 - HOOKING
$2.99
363 842088 842088 - SPRING LANCE
$2.99
365 842086 842086 - SEALING VALVE
$2.99
366 842104 842104 - LOCKING WASHER
$7.99
368 842085 842085 - PRESSURE CHAMBER
$18.99
374 842108 842108 - GUIDE LID
$2.99
497 842087 842087 - OPAQUE SYNTHETIC SEA
$2.99
544 842054 842054 - SPRAYER
$2.99
608 842048 842048 - ROUND GASKET AN-6
$2.99
674 842089 842089 - 100 ML DOSER
$2.99
676 842057 842057 - PRESSURE REGULATOR
$29.99
703 842084 842084 - COMPLETE HOSE
$23.99
726 842063 842063 - ELBOW WITH NOZZLE
$8.99
727 842083 842083 - TUBE WITH NUTS
$22.99
796 842109 842109 - TANK COVER AND VALVE
$9.99
883 842093 842093 - COMPLETE HANDLE
$24.99
885 842101 842101 - COMPLETE LANCE
$30.99
895 842107 842107 - COMPLETE CHAMBER
$28.99
896 842106 842106 - COMPLETE LEVER
$32.99
904 842105 842105 - FILTER WITH GASKET
$7.99
953 842094 842094 - LANCE HOOK
$2.99
1022 842116 842116 - 16 L. TANK
$57.99
1024 842055 842055 - NOZZLES SET
$24.99
