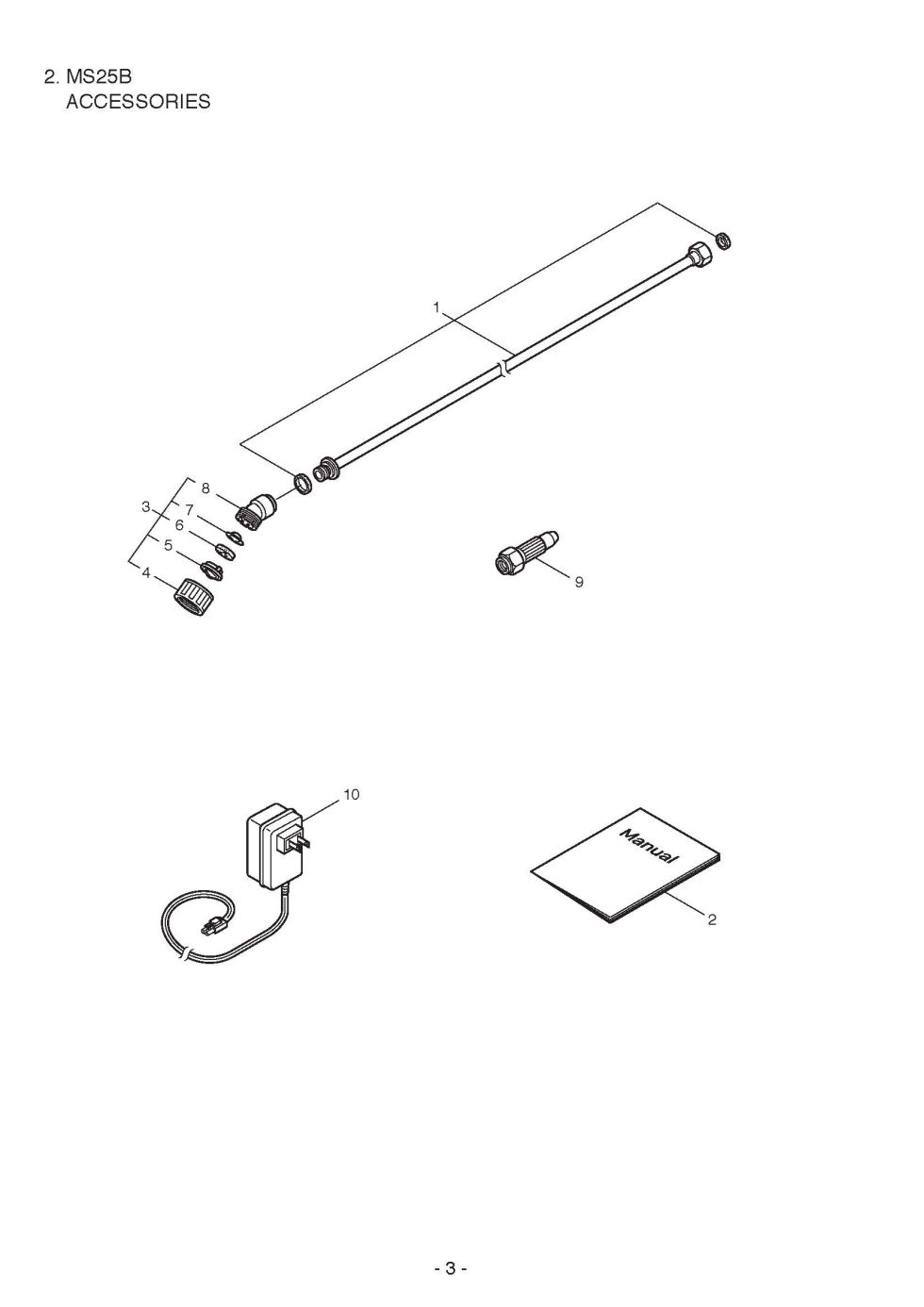

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS25B. You have selected the Accessories diagram for the Maruyama MS25B Battery Operated Sprayers. Below you will find an interactive part diagram for the MS25B Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS25B parts not shown in this diagram you may select from one of the other MS25B part assemblies or select a different Battery Operated Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Battery Operated Sprayers parts.

Position number SKU Product title Price
1 127271 127271 - NLA NOZZLE PIPE A
$19.99
2 127873 127873 - INSTRUCTION MANUAL
$21.99
3 112866 112866 - WIDE NOZZLE ASSY
$23.99
4 112843 112843 - CAP
$8.99
5 112867 112867 - NOZZLE PLATE
$24.99
6 112846 112846 - PACKING
$2.99
7 112845 112845 - STRAINER
$2.99
8 112868 112868 - NLA BODY
$19.99
9 127460 127460 - NOZZLE ASSY
$33.99
10 127975 127975 - BATTERY CHARGER
$55.99
