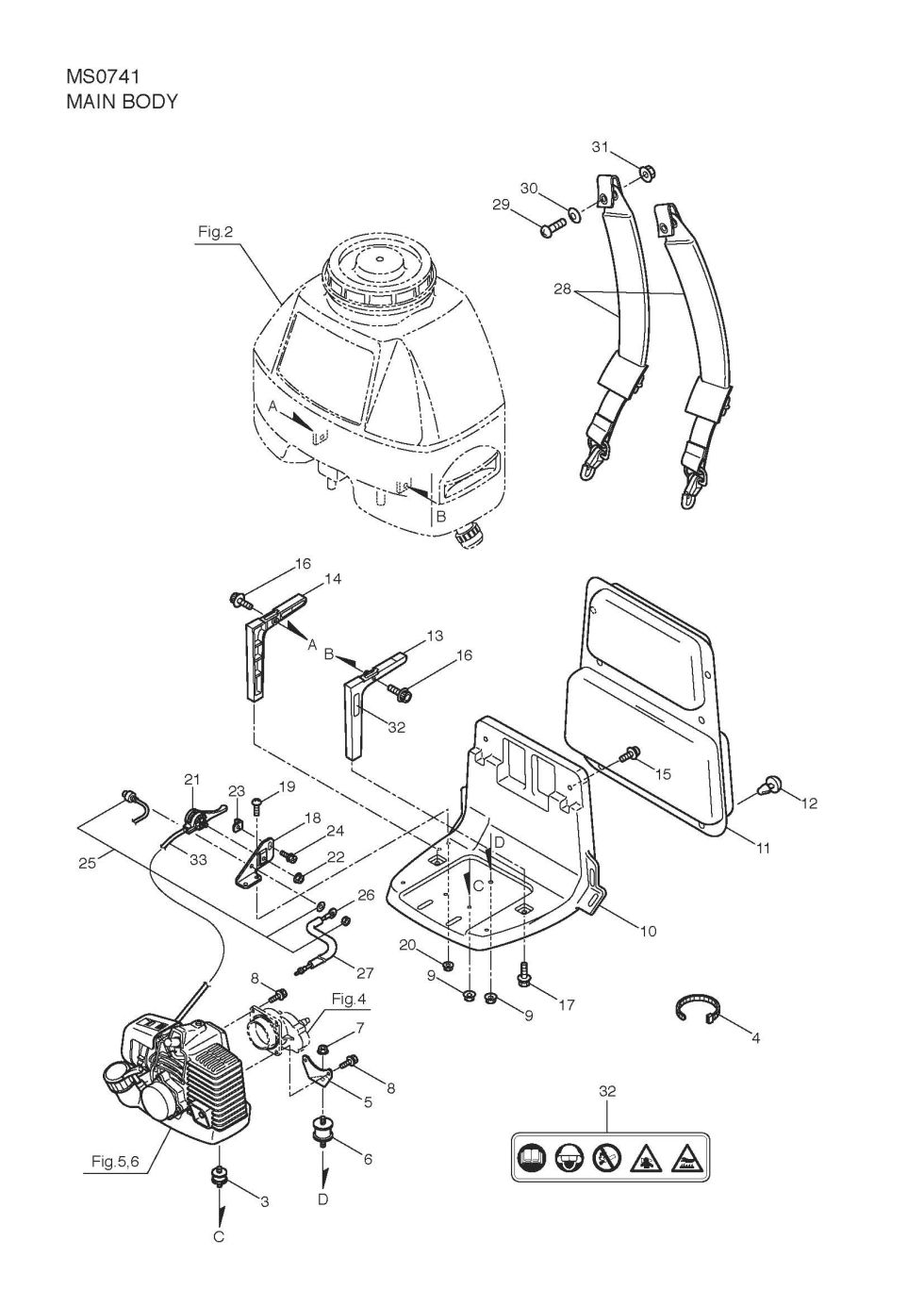

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS0741. You have selected the Main Body diagram for the Maruyama MS0741 Engine Driven Sprayers. Below you will find an interactive part diagram for the MS0741 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS0741 parts not shown in this diagram you may select from one of the other MS0741 part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 3 | 182114 | 182114 - PACKING |
$8.99
|
|
| 4 | 104343 | 104343 - BAND |
$2.99
|
|
| 5 | 125803 | 125803 - STAY |
$2.99
|
|
| 6 | 101877 | 101877 - BUFFER |
$21.99
|
|
| 7 | 126756 | 126756 - NUT M6 |
$2.99
|
|
| 8 | 126178 | 126178 - CAP SCREW |
$2.99
|
|
| 9 | 127228 | 127228 - NUT |
$2.99
|
|
| 10 | 128939 | 128939 - FRAME |
$71.99
|
|
| 11 | 122807 | 122807 - PAD |
$18.99
|
|
| 12 | 100749 | 100749 - PAD RETAINER |
$2.99
|
|
| 13 | 118002 | 118002 - STAY (R) |
$16.99
|
|
| 14 | 118004 | 118004 - STAY (L) |
$16.99
|
|
| 15 | 127238 | 127238 - SCREW |
$2.99
|
|
| 16 | 123952 | 123952 - CAP SCREW |
$2.99
|
|
| 17 | 127233 | 127233 - BOLT |
$2.99
|
|
| 18 | 113674 | 113674 - STAY |
$15.99
|
|
| 19 | 081415 | 081415 - SCREW M5X.8X16 |
$2.99
|
|
| 20 | 127226 | 127226 - FLANGE NUT |
$2.99
|
|
| 21 | 115148 | 115148 - THROTTLE LEVER |
$17.99
|
|
| 23 | 128940 |
$31.99
|
||
| 24 | 817004 | 817004 - BOLT |
$2.99
|
|
| 25 | 114895 | 114895 - STOP BUTTON |
$23.99
|
|
| 26 | 114896 | 114896 - GROUND WIRE |
$6.99
|
|
| 27 | 114901 | 114901 - VINYL HOSE |
$2.99
|
|
| 28 | 120624 | 120624 - KNAPSACK BAND ASSY |
$30.99
|
|
| 29 | 127221 | 127221 - SCREW M6X16 |
$2.99
|
|
| 30 | 127224 | 127224 - WASHER 6X23XT1.6 |
$2.99
|
|
| 31 | 127237 | 127237 - NUT M6 |
$2.99
|
|
| 32 | 266959 | 266959 - LABEL |
$6.99
|
|
| 33 | 121616 | 121616 - THROTTLE CABLE |
$13.99
|
