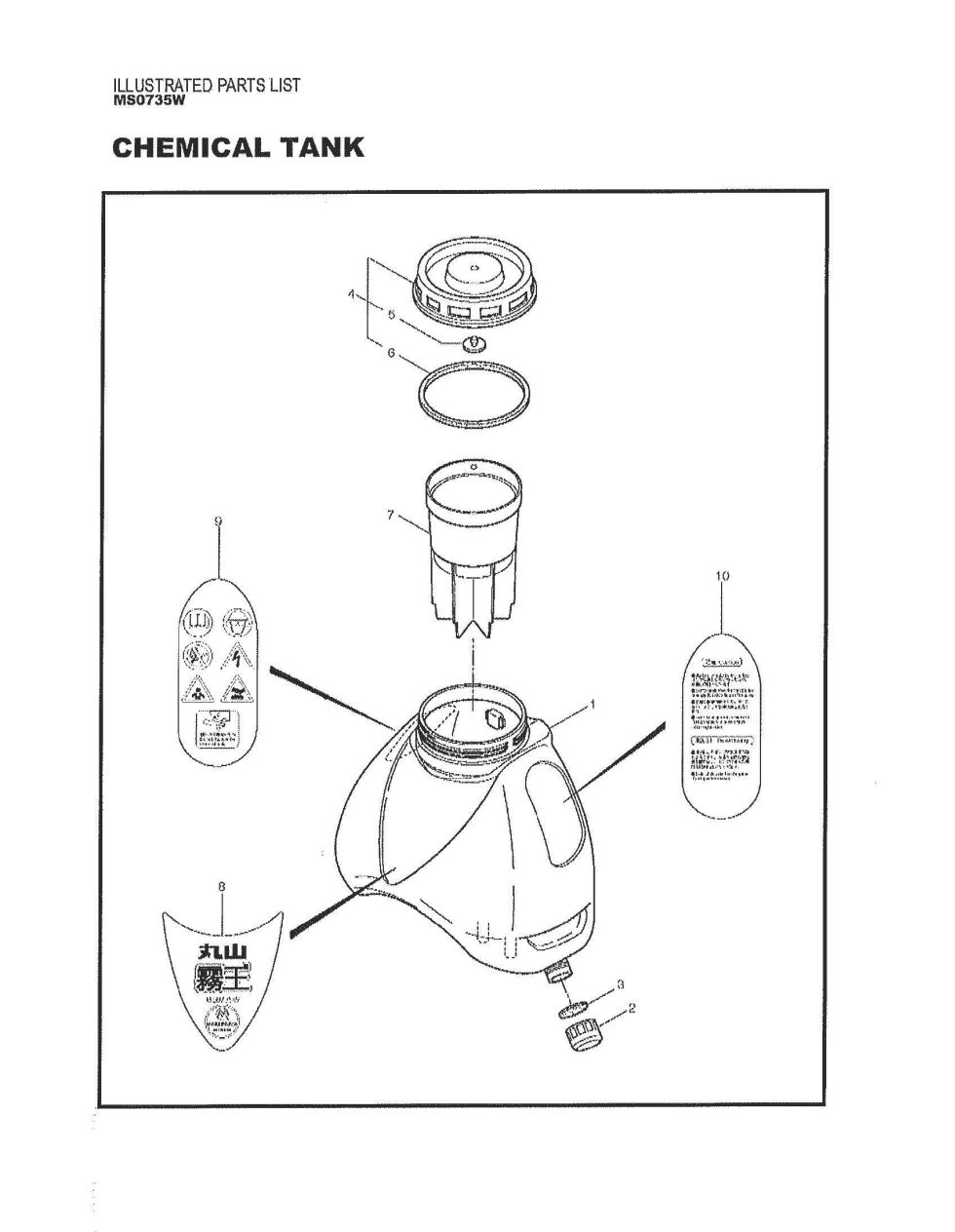

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS0735W. You have selected the Chemical Tank diagram for the Maruyama MS0735W Engine Driven Sprayers. Below you will find an interactive part diagram for the MS0735W Chemical Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS0735W parts not shown in this diagram you may select from one of the other MS0735W part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 125692 | 125692 - CHEMICAL TANK ASSY M |
$99.99
|
|
| 2 | 118147 | 118147 - BLIND CAP |
$5.99
|
|
| 3 | 029299 | 029299 - BLIND PACKING |
$2.99
|
|
| 4 | 121853 | 121853 - CHEMICAL TANK CAP AS |
$21.99
|
|
| 6 | 022362 | 022362 - PACKING, CHEMICAL TA |
$16.99
|
|
| 7 | 125061 | 125061 - STRAINER MS0735W |
$13.99
|
|
| 8 | 126283 | 126283 - LABEL |
$8.99
|
|
| 9 | 126285 | 126285 - LABEL |
$5.99
|
|
| 10 | 126286 | 126286 - LABEL |
$2.99
|
