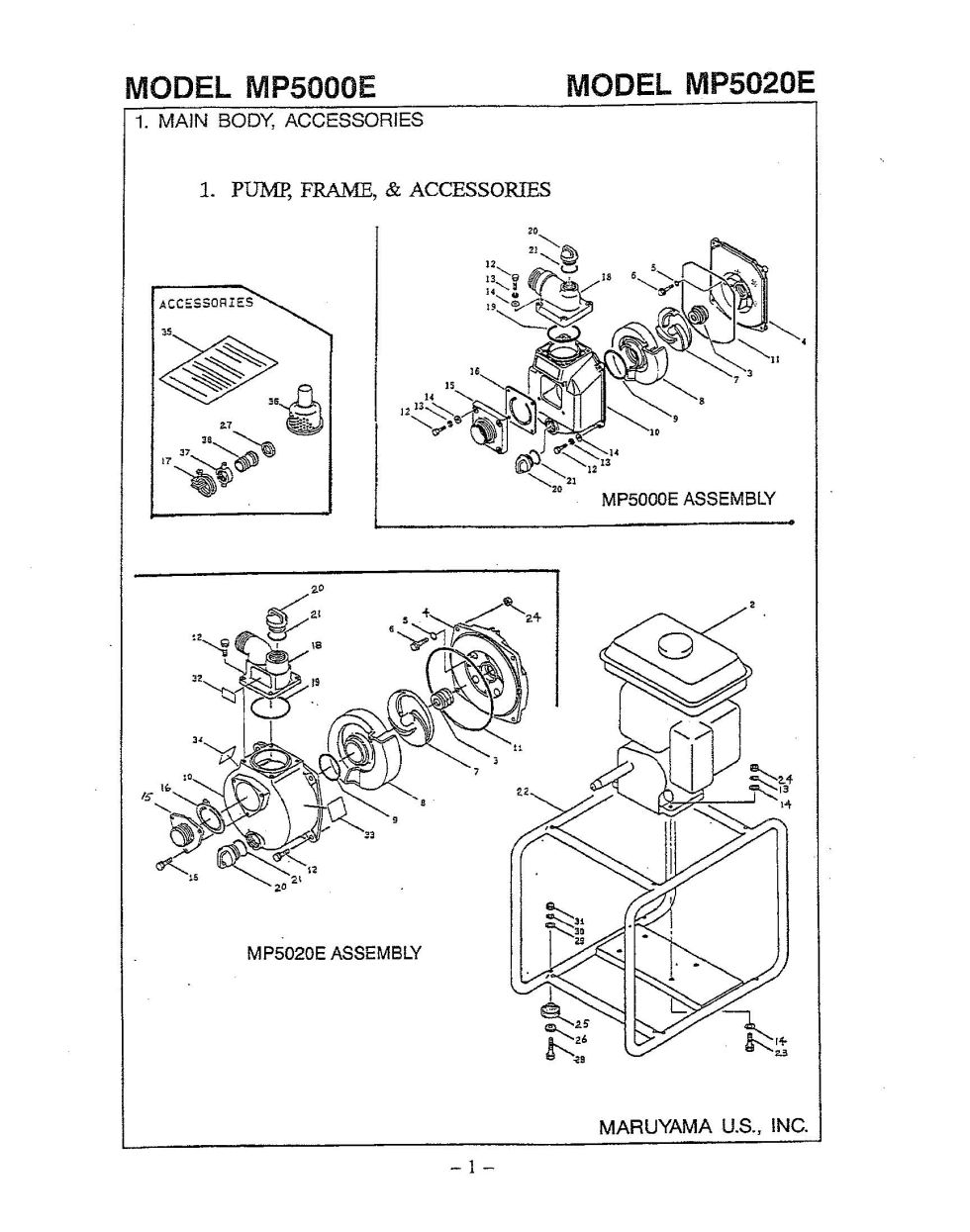

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MP5000E, MP5020E. You have selected the Pump, Frame, and Accessories diagram for the Maruyama MP5000E, MP5020E Water Pumps. Below you will find an interactive part diagram for the MP5000E, MP5020E Pump, Frame, and Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MP5000E, MP5020E parts not shown in this diagram you may select from one of the other MP5000E, MP5020E part assemblies or select a different Water Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Water Pumps parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 3 | 240072 | 240072 - MECHANICAL SEAL |
$46.99
|
|
| 4 (MP5000E) | 240073 | 240073 - NLA CASING COVER |
$105.99
|
|
| 4 (MP5020E) | 240480 | 240480 - CASING COVER |
$67.99
|
|
| 5 | 014190 | 014190 - O-RING |
$2.99
|
|
| 6 | 089721 | 089721 - BOLT |
$2.99
|
|
| 7 (MP5000E) | 240074 | 240074 - IMPELLER |
$72.99
|
|
| 7 (MP5020E) | 240389 | 240389 - USE: 240074 |
$45.99
|
|
| 8 (MP5000E) | 240075 | 240075 - NLA SCROLL |
$108.99
|
|
| 8 (MP5020E) | 240584 | 240584 - SCROLL |
$101.99
|
|
| 9 (MP5000E) | 015858 | 015858 - O-RING (G75) |
$2.99
|
|
| 9 (MP5020E) | 012392 | 012392 - O-RING |
$2.99
|
|
| 10 (MP5000E) | 240076 | 240076 - NLA CASING |
$245.99
|
|
| 10 9MP5020E) | 240585 | 240585 - CASING |
$119.99
|
|
| 11 (MP5000E) | 027767 | 027767 - O-RING |
$6.41
|
|
| 11 (MP5020E) | 016601 | 016601 - O-RING |
$14.99
|
|
| 12 (MP5000E) | 080130 | 080130 - BOLT M8X30X22 |
$2.99
|
|
| 12 (MP5020E) | 092530 | 092530 - SCREW, HEX M8X25 |
$2.99
|
|
| 13 | 015845 | 015845 - SPRING WASHER |
$2.99
|
|
| 14 | 012489 | 012489 - WASHER |
$2.99
|
|
| 15 (MP5000E) | 240077 | 240077 - NLA INLET PORT |
$51.99
|
|
| 15 (MP5020E) | 240586 | 240586 - SUCTION PORT |
$37.99
|
|
| 16 (MP5000E) | 240079 | 240079 - NLA CHECK VALVE |
$24.99
|
|
| 16 (MP5020E) | 240484 | 240484 - CHECK VALVE |
$22.99
|
|
| 17 | 240098 | 240098 - HOSE BAND |
$6.99
|
|
| 18 (MP5000E) | 240081 | 240081 - NLA DISCHARGE PORT |
$65.99
|
|
| 18 (MP5020E) | 240587 | 240587 - DISCHARGE PORT |
$59.99
|
|
| 19 (MP5000E) | 011340 | 011340 - ORING |
$2.99
|
|
| 19 (MP5020E) | 012393 | 012393 - O-RING |
$2.99
|
|
| 20 | 240082 | 240082 - BLIND PLUG |
$6.99
|
|
| 21 | 018690 | 018690 - O-RING |
$2.99
|
|
| 22 | 240715 | 240715 - NLA FRAME |
$100.99
|
|
| 23 | 080138 | 080138 - BOLT |
$2.99
|
|
| 25 | 240714 | 240714 - USE: 028843 |
No Longer Available Obsolete. |
|
| 26 | 028842 | 028842 - WASHER |
$7.99
|
|
| 27 | 082124 | 082124 - BOLT |
$2.99
|
|
| 29 | 012488 | 012488 - WASHER M6 |
$2.99
|
|
| 30 | 012502 | 012502 - SPRING WASHER |
$2.99
|
|
| 32 | 240368 | 240368 - LABEL |
$2.99
|
|
| 33 | 240019 | 240019 - LABEL |
$2.99
|
|
| 34 | 240500 | 240500 - NLA LABEL |
$2.99
|
|
| 35 (MP5000E) | 240090 | 240090 - NLA INSTRUCT MANU |
$10.99
|
|
| 36 (MP5000E) | 240093 | 240093 - USE: 240495 |
$32.99
|
|
| 36 (MP5020E) | 240495 | 240495 - STRAINER |
$23.99
|
|
| 37 | 240096 | 240096 - HOSE FEMALE NUT |
$11.99
|
|
| 38 | 240097 | 240097 - HOSE FEMALE COUPLING |
$2.99
|
