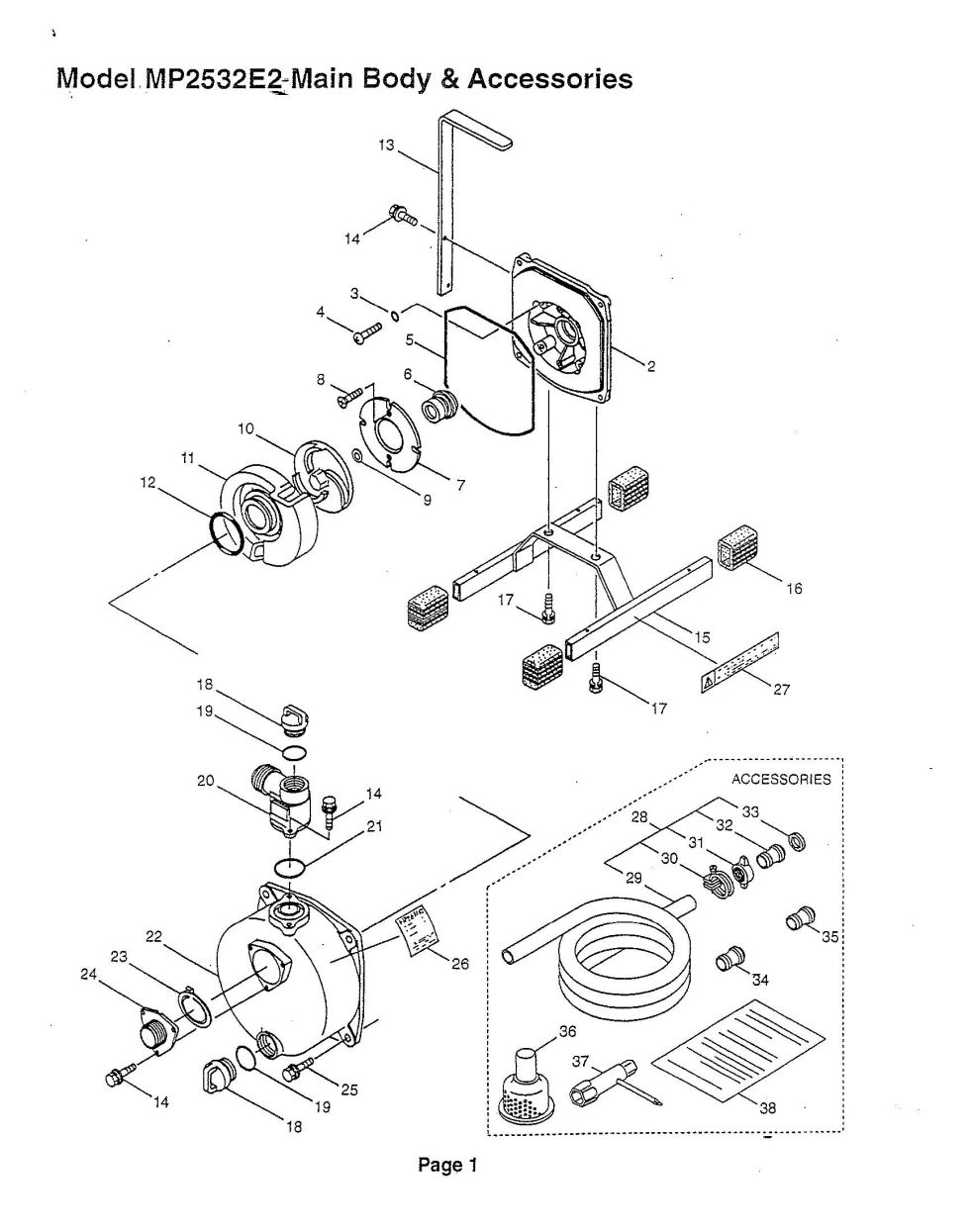

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MP2532E2. You have selected the Main Body and Accessories diagram for the Maruyama MP2532E2 Water Pumps. Below you will find an interactive part diagram for the MP2532E2 Main Body and Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MP2532E2 parts not shown in this diagram you may select from one of the other MP2532E2 part assemblies or select a different Water Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Water Pumps parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 240750 | 240750 - CASING COVER |
$70.99
|
|
| 3 | 013918 | 013918 - O-RING |
$2.99
|
|
| 4 | 550162 | 550162 - NLA SCREW |
$2.99
|
|
| 5 | 014070 | 014070 - O-RING |
$11.99
|
|
| 6 | 240002 | 240002 - MECHANICAL SEAL |
$24.99
|
|
| 7 | 240654 | 240654 - PLATE |
$13.99
|
|
| 8 | 081709 | 081709 - SCREW |
$2.99
|
|
| 9 | 240760 | 240760 - NLA SPACER |
$2.99
|
|
| 10 | 240772 | 240772 - IMPELLER |
$50.99
|
|
| 11 | 240773 | 240773 - USE: 284618 |
$53.99
|
|
| 12 | 027533 | 027533 - O-RING |
$2.99
|
|
| 13 | 240779 | 240779 - HANDLE |
$29.99
|
|
| 14 | 092519 | 092519 - BOLT |
$2.99
|
|
| 15 | 240774 | 240774 - NLA BASE |
$56.99
|
|
| 16 | 240017 | 240017 - DAMPER |
$8.99
|
|
| 17 | 092513 | 092513 - BOLT |
$2.99
|
|
| 18 | 240012 | 240012 - BLIND PLUG |
$2.99
|
|
| 19 | 020285 | 020285 - O-RING |
$2.99
|
|
| 20 | 240556 | 240556 - DISCHARGE VALVE |
$29.99
|
|
| 21 | 014178 | 014178 - O-RING |
$2.99
|
|
| 22 | 240652 | 240652 - NLA CASING |
$80.99
|
|
| 23 | 240554 | 240554 - CHECK VALVE |
$22.99
|
|
| 24 | 240553 | 240553 - USE: 240719 |
$16.99
|
|
| 25 | 092520 | 092520 - BOLT |
$2.99
|
|
| 26 | 240776 | 240776 - LABEL |
$11.99
|
|
| 27 | 107483 | 107483 - USE: 120675 |
$2.99
|
|
| 28 | 240031 | 240031 - NLA SUCTION HOSE |
$78.99
|
|
| 29 | 240027 | 240027 - USE: 998341 |
$36.99
|
|
| 30 | 240030 | 240030 - HOSE BAND |
$10.99
|
|
| 31 | 240028 | 240028 - USE: 272283 |
$5.99
|
|
| 32 | 240029 | 240029 - USE: 240858 |
$2.99
|
|
| 34 | 240101 | 240101 - NLA ADAPTER |
$2.99
|
|
| 35 | 240568 | 240568 - USE: 240861 |
$2.99
|
|
| 36 | 240564 | 240564 - STRAINER |
$21.99
|
|
| 37 | 210418 | 210418 - BOX WRENCH/DRIVER |
$16.99
|
