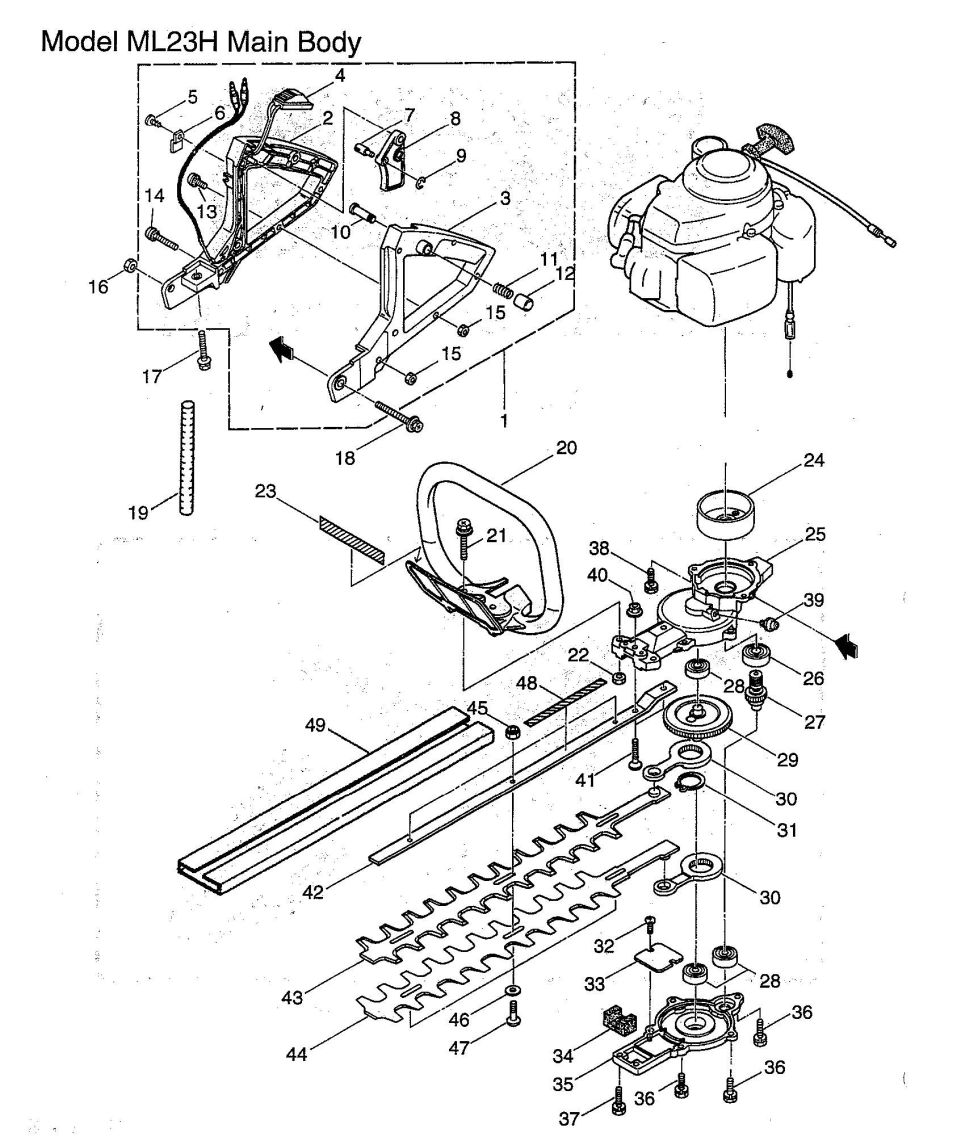

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your ML23H. You have selected the Main Body diagram for the Maruyama ML23H M-Line Equipment. Below you will find an interactive part diagram for the ML23H Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the ML23H parts not shown in this diagram you may select from one of the other ML23H part assemblies or select a different M-Line Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama M-Line Equipment parts.

Position number SKU Product title Price
1 270017 270017 - NLA REAR HANDLE ASSY
$107.99
2 997270 997270 - NS REAR HANDLE R
$20.99
3 997267 997267 - NS REAR HANDLE (L)
$18.99
4 270018 270018 - NLA SWITCH, STOP
$32.99
5 997258 997258 - SCREW(M4X10)
$2.99
6 997259 997259 - CABLE HOLDER
$2.99
7 997260 997260 - SWIVEL
$24.99
8 997262 997262 - THROTTLE LEVER
$13.99
9 997263 997263 - RING SNAP
$2.99
10 997264 997264 - PIN, LEVER
$16.99
11 997265 997265 - SPRING
$6.99
12 997266 997266 - FIXING KNOB
$8.99
13 997268 997268 - SCREW(M4X16)
$2.99
14 997269 997269 - SCREW(M4X30)
$2.99
15 997271 997271 - NLA HEX NUT(M4)
$2.99
16 997253 997253 - HEX NUT(M6)
$2.99
17 581910 581910 - NLA BOLT
$2.99
18 581909 581909 - NLA BOLT
$2.99
19 270023 270023 - TUBE
$18.99
20 582441 582441 - FRONT HANDLE
$87.99
21 270029 270029 - BOLT M6X35
$2.99
23 591449 591449 - NLA LABEL
$5.99
24 270021 270021 - DRUM
$45.99
25 584661 584661 - UPPER CASE
$144.99
26 580767 580767 - BALL BEARING (#6001-
$29.99
27 270020 270020 - USE: 584666
$64.99
28 580768 580768 - BALL BEARING
$33.99
29 591443 591443 - CRANK COMPLETE
$148.99
30 997282 997282 - USE: 271466
$62.99
31 580777 580777 - SNAP RING
$7.99
32 991924 991924 - SCREW
$2.99
33 991919 991919 - PLATE ROD SLIDE
$19.99
34 997286 997286 - FELT
$19.99
35 997288 997288 - LOWER CASE
$47.99
36 580791 580791 - HEX HEAD BOLT
$2.99
37 580790 580790 - HEX HEAD BOLT
$2.99
38 270030 270030 - BOLT(M6X20)
$2.99
39 991937 991937 - NIPPLE, GREASE
$6.99
40 997244 997244 - USE: 127226
$2.99
41 997284 997284 - SCREW M5X16
$2.99
42 997277 997277 - NLA GUIDE PLATE-16
$70.99
43 270051 270051 - NLA UPPER BLADE 16 I
$117.99
44 270052 270052 - NLA LOWER BLADE 16 I
$117.99
45 991941 991941 - USE: 290560
$2.99
46 991913 991913 - WASHER
$2.99
47 991914 991914 - SCREW
$10.99
48 591450 591450 - LABEL
$5.99
49 270053 270053 - COVER OF BLADE
$28.99
