Carburator and Fuel Tank

Carburator and Fuel Tank

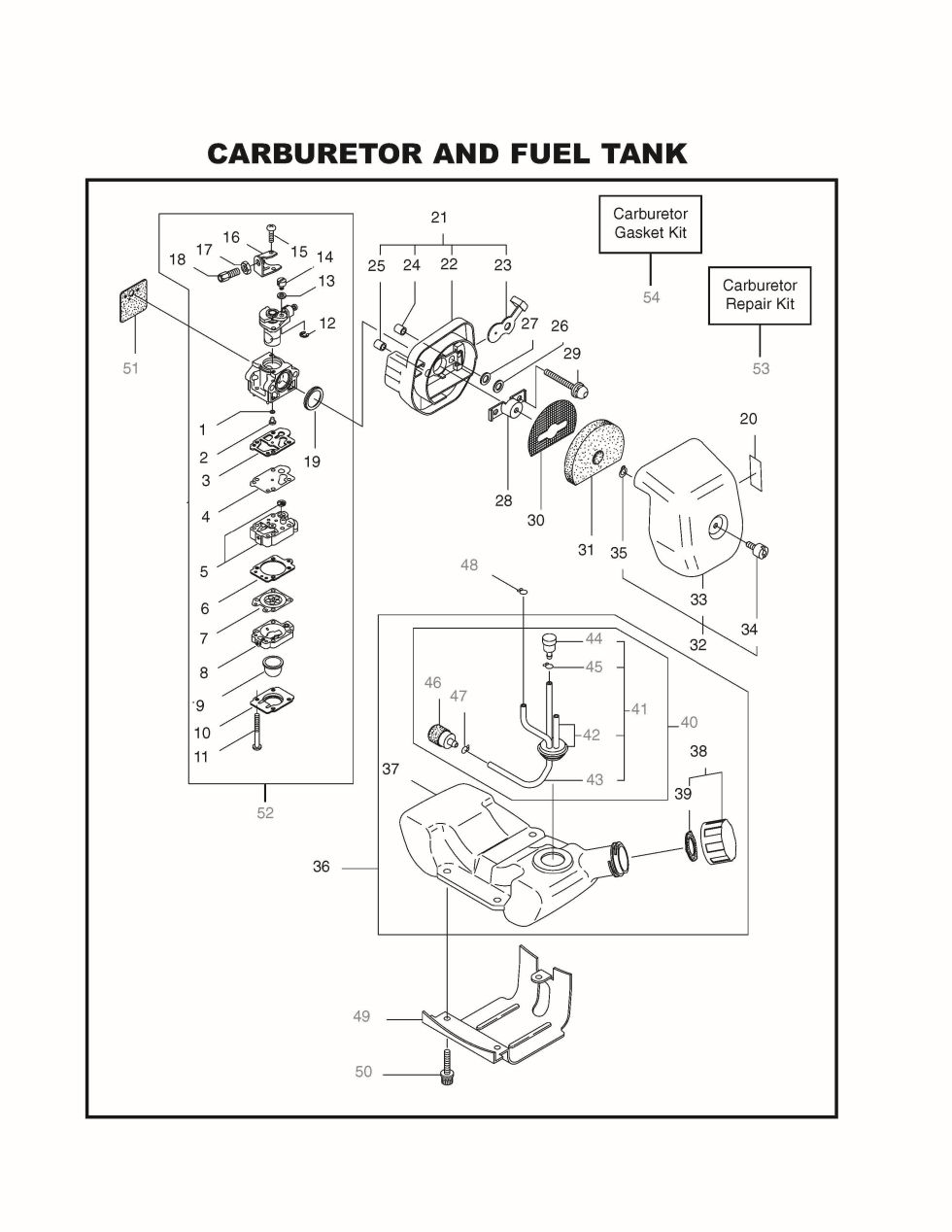

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC3020SB. You have selected the Carburator and Fuel Tank diagram for the Maruyama MC3020SB Multicutters. Below you will find an interactive part diagram for the MC3020SB Carburator and Fuel Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC3020SB parts not shown in this diagram you may select from one of the other MC3020SB part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
1 261871 261871 - O-RING
$2.99
2 269765 269765 - MAIN JET #36
$17.99
3 262995 262995 - GASKET
$13.99
4 262994 262994 - DIAPHRAGM FUEL PUMP
$18.99
5 263739 263739 - PUMP BODY
$49.99
6 262993 262993 - GASKET
$10.99
7 268501 268501 - USE: 283905
$11.99
8 262991 262991 - PURGE BODY
$23.99
9 261874 261874 - PRIMER
$10.99
10 262992 262992 - COVER PLATE
$11.99
11 262996 262996 - SCREW
$2.99
12 261876 261876 - E-RING
$2.99
13 264678 264678 - WASHER
$2.99
14 261658 261658 - SWIVEL
$5.99
15 260607 260607 - USE: 261875
$2.99
16 264677 264677 - BRACKET
$20.99
17 261878 261878 - NUT
$2.99
18 263994 263994 - ADJUSTER
$16.99
19 261657 261657 - PACKING
$10.99
20 261352 261352 - DECAL
$2.99
21 268055 268055 - AIR FILTER CASE ASSY
$19.99
22 268056 268056 - AIR FILTER CASE
$12.99
23 268057 268057 - VALVE
$11.99
24 268412 268412 - SLEEVE
$2.99
25 268157 268157 - SLEEVE
$2.99
26 263345 263345 - PACKING
$2.99
27 263942 263942 - WASHER
$2.99
28 263815 263815 - STAY
$8.99
29 264016 264016 - CAP SCREW M5X60
$2.99
30 265026 265026 - SCREEN
$2.99
31 265027 265027 - FOAM ELEMENT
$5.99
32 268058 268058 - AIR FILTER COVER ASS
$24.99
33 268059 268059 - AIR FILTER COVER
$12.99
34 265742 265742 - USE: 286399
$5.99
35 261734 261734 - SNAP RING
$2.99
36 269721 269721 - FUEL TANK ASSY.
$50.99
37 269724 269724 - FUEL TANK
$33.99
38 264784 264784 - USE: 261584
$15.99
39 261105 261105 - PACKING
$2.99
40 268062 268062 - FUEL PIPE PICK-UP AS
$32.99
41 268185 268185 - FUEL PIPE ASSY (obsolete)
use part #282539
$34.99
42 268497 268497 - FUEL PIPE & GROMMET
$23.99
43 262649 262649 - FUEL PIPE
$2.99
44 261590 261590 - BREATHER SUB ASSY
$12.99
45 261117 261117 - CLIP
$2.99
49 268260 268260 - STAND
$8.99
50 261246 261246 - CAP SCREW M5X25
$2.99
51 269762 269762 - GASKET
$2.99
52 268994 268994 - CARBURETOR ASSY
$95.99
53 840859 840859 - CARBURETOR REPAIR KI
$30.99
54 840860 840860 - CARBURETOR GASKET KI
$19.99
