Engine and Rewind Starter

Engine and Rewind Starter

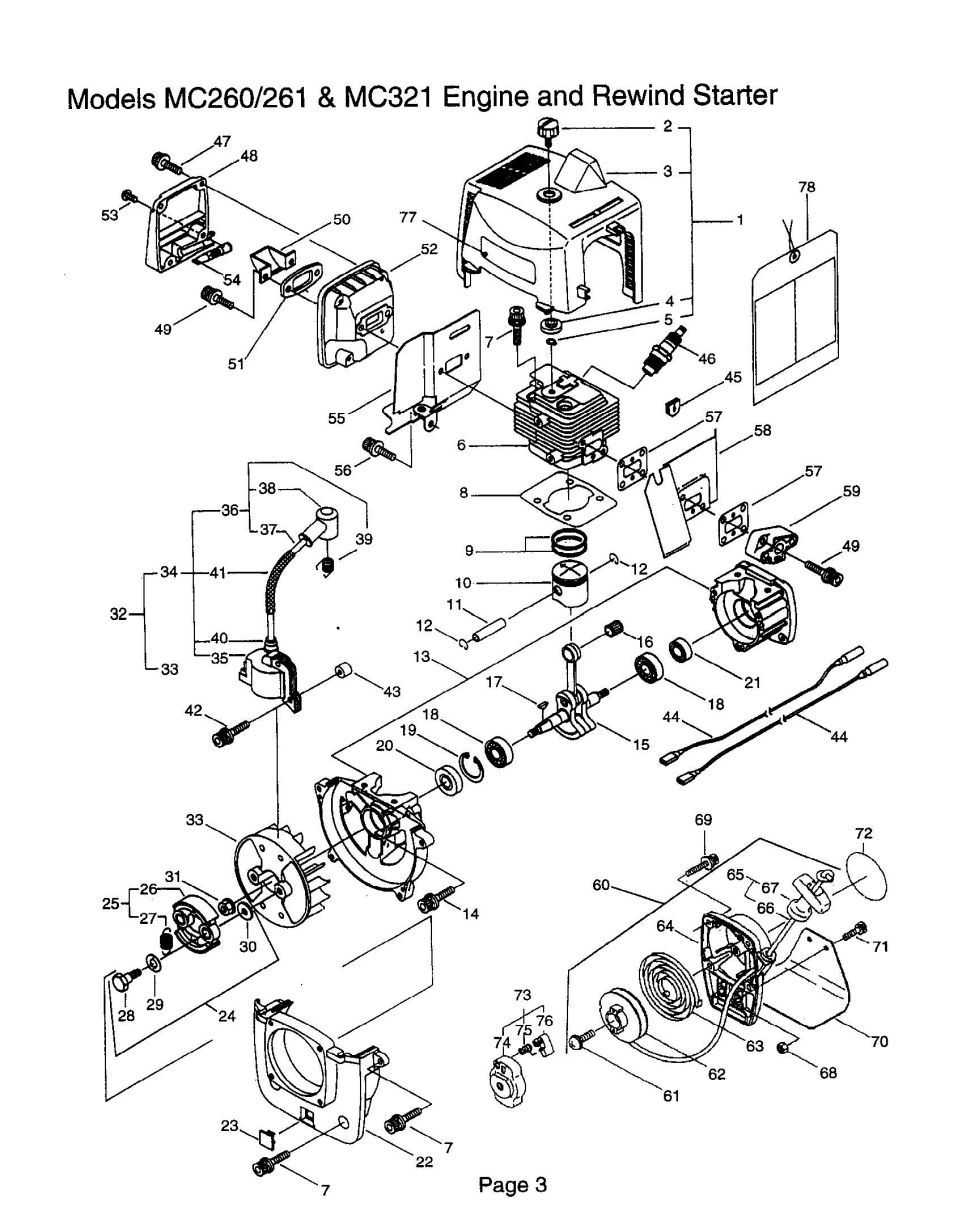

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC260, MC261, MC321. You have selected the Engine and Rewind Starter diagram for the Maruyama MC260, MC261, MC321 Multicutters. Below you will find an interactive part diagram for the MC260, MC261, MC321 Engine and Rewind Starter. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC260, MC261, MC321 parts not shown in this diagram you may select from one of the other MC260, MC261, MC321 part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
1 261483 261483 - USE: 264127
$23.99
2 261018 261018 - KNOB
$7.99
3 261484 261484 - USE: 263969
$18.99
4 261020 261020 - SPACER
$2.99
5 261734 261734 - SNAP RING
$2.99
6 261472 261472 - CYLINDER
$131.99
7 261250 261250 - BOLT M5X20
$2.99
8a 262200 262200 - GASKET
$8.99
8b 262201 262201 - GASKET
$2.99
9a 261496 261496 - PISTON RING
$13.99
9b 261390 261390 - PISTON RING
$13.99
10a 261494 261494 - PISTON
$29.99
10b 261388 261388 - USE: 266980
$22.99
11a 261497 261497 - PISTON PIN
$17.99
11b 261555 261555 - PISTON PIN
$11.99
12a 261576 261576 - CIRCLIP
$2.99
12b 261393 261393 - PISTON PIN CLIP
$2.99
13a 261486 261486 - CRANKCASE
$120.99
13b 261379 261379 - CRANKCASE
$145.99
14 261612 261612 - BOLT
$2.99
15a 261499 261499 - USE: 265197
$142.99
15b 261395 261395 - CRANKSHAFT
$146.99
16a 261037 261037 - NEEDLE BEARING
$15.99
16b 261392 261392 - NEEDLE BEARING
$21.99
17 261076 261076 - WOODRUFF KEY
$2.99
18a 261491 261491 - BEARING
$21.99
18b 261384 261384 - BEARING
$15.99
19a 055185 055185 - SNAP RING
$2.99
19b 016732 016732 - C SHAPED SNAP RING 3
$2.99
20a 261492 261492 - OIL SEAL
$2.99
20b 261385 261385 - OIL SEAL
$6.99
21 261386 261386 - OIL SEAL
$2.99
22 264104 264104 - NLA FAN COVER
$27.99
23 261786 261786 - NLA GROMMET
$2.99
24 264587 264587 - CLUTCH ASSY.
$29.99
25 264503 264503 - CLUTCH ASSY.
$25.99
26 264504 264504 - CLUTCH SHOE
$16.99
27 263614 263614 - CLUTCH SPRING
$18.99
28 264505 264505 - CLUTCH BOLT
$5.99
29 261777 261777 - WAVE WASHER
$2.99
30 261189 261189 - WASHER
$2.99
31 261417 261417 - ROTOR NUT
$8.99
32 261357 261357 - MAGNETO ASSY
$149.99
33 261356 261356 - ROTOR
$69.99
34 261069 261069 - IGNITION COIL ASSY
$106.99
35 261070 261070 - IGNITION COIL
$96.99
36 261744 261744 - USE: 267403 (obsolete)
use part #267403
$23.99
37 261071 261071 - NLA IGNITION CABLE
$10.99
38 261074 261074 - PLUG CAP
$13.99
39 261075 261075 - CONNECTOR
$2.99
40 261072 261072 - CAP
$2.99
41 261073 261073 - TUBE
$8.99
42 261256 261256 - BOLT M4X25
$2.99
43 261078 261078 - NLA SPACER -
$2.99
44 261772 261772 - LEAD
$2.99
45 261202 261202 - GROMMET
$2.99
46 261200 261200 - SPARK PLUG
$20.99
48a 262394 262394 - NLA MUFFLER COVER (n
$19.99
48b 262401 262401 - NLA MUFFLER COVER (N
$24.99
49 261246 261246 - CAP SCREW M5X25
$2.99
50 261368 261368 - PLATE
$17.99
51 261986 261986 - SHIELD
$7.99
52a 262393 262393 - NLA MUFFLER BODY
$30.99
52b 262400 262400 - NLA MUFFLER BODY (NO
$29.99
53 262395 262395 - SPARK ARRESTER M-LIN
$18.99
54 089596 089596 - TAPPING SCREW
$2.99
55a 261478 261478 - GASKET ASSY
$21.99
55b 261833 261833 - GASKET ASSY
$23.99
56 261607 261607 - BOLT M5X16
$2.99
57 261171 261171 - GASKET
$2.99
58a 261476 261476 - HEAT SHIELD
$19.99
58b 261364 261364 - HEAT SHIELD
$19.99
59 261938 261938 - INSULATOR ASSY
$18.99
60 262039 262039 - REWIND STARTER ASSY
$45.99
61 262922 262922 - SCREW
$2.99
62 261720 261720 - NLA REEL
$13.99
63 261721 261721 - SPIRAL SPRING
$24.99
64 262040 262040 - STARTER CASE
$16.99
65 261723 261723 - ROPE ASSY
$24.99
66 261724 261724 - STARTER ROPE
$9.99
67 261725 261725 - STARTER GRIP
$9.99
68 081028 081028 - NUT
$2.99
69 261257 261257 - CAP SCREW M4X16
$2.99
70 262415 262415 - USE: 264658
$10.99
72 260459 260459 - LABEL
$2.99
73 263475 263475 - STARTER PAWL ASSY
$28.99
74 263476 263476 - STARTER
$24.99
75 261728 261728 - RETURN SPRING
$2.99
76 263477 263477 - PAWL
$10.99
77 262100 262100 - LABEL
$5.99
