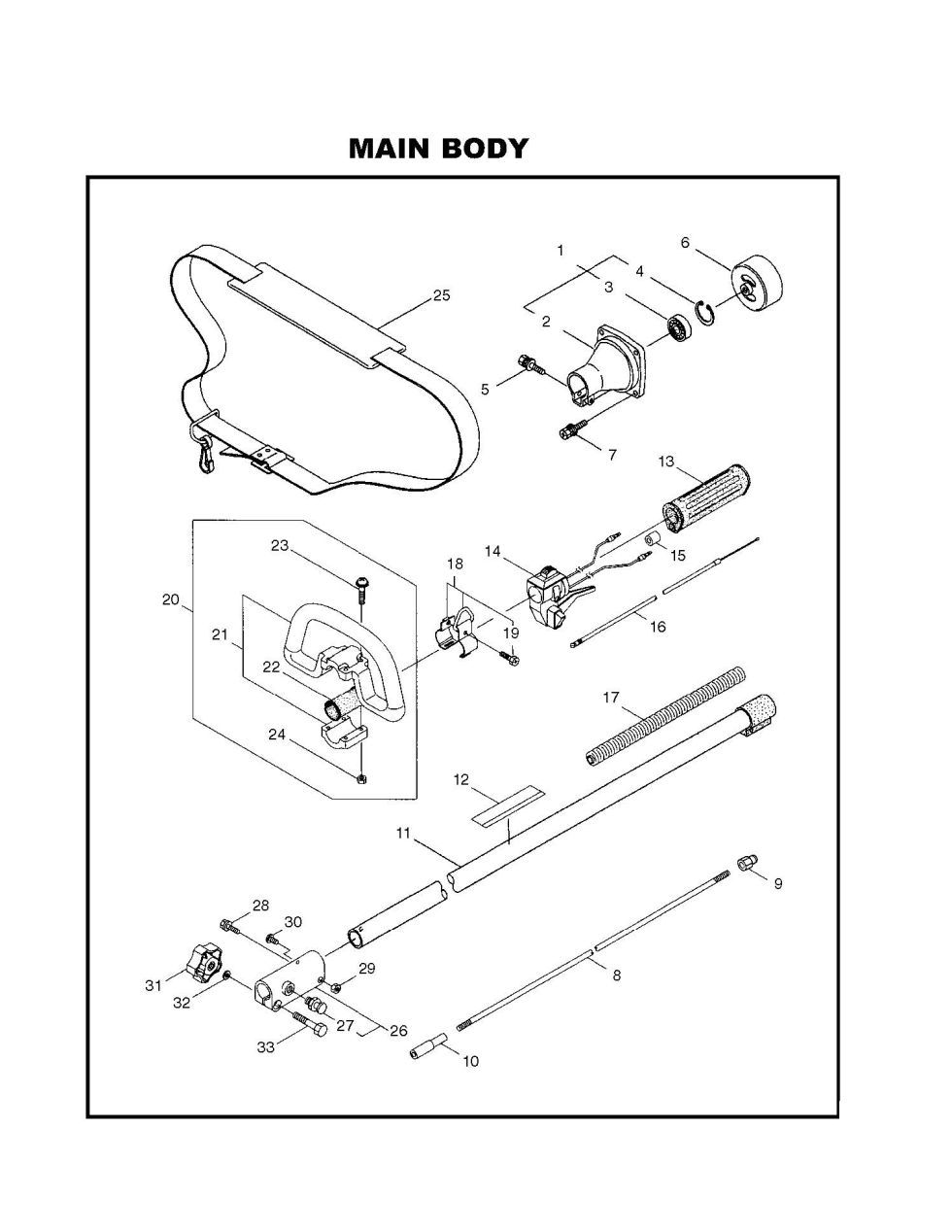

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC23SB. You have selected the Main Body diagram for the Maruyama MC23SB Multicutters. Below you will find an interactive part diagram for the MC23SB Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC23SB parts not shown in this diagram you may select from one of the other MC23SB part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
1 221473 221473 - CLUTCH CASE ASSY
$50.99
2 221474 221474 - CLUTCH CASE
$38.99
3 016405 016405 - BEARING
$22.99
4 013825 013825 - C-SHAPED SNAP RING
$2.99
5 096042 096042 - BOLT (M5X30)
$2.99
6 054677 054677 - CLUTCH DRUM
$32.99
7 817002 817002 - BOLT
$2.99
8 224615 224615 - NS DRIVESHAFT
$19.99
10 215276 215276 - LOWER ADAPTER
$42.99
11 224617 224617 - NS DRIVESHAFT TUBE
$41.99
12 226413 226413 - LABEL
$15.99
13 215532 215532 - SHAFT GRIP
$24.99
14 222953 222953 - THROTTLE TRIGGER (obsolete)
use part #221465
$62.99
15 214083 214083 - OUTER GUIDE
$2.99
16 223051 223051 - THROTTLE CABLE
$9.99
17 223052 223052 - PLASTIC TUBE
$2.99
18 054691 054691 - HANGING BRACKET ASSY
$13.99
19 089738 089738 - BOLT
$2.99
20 214224 214224 - HANDLE ASSY
$27.99
21 214982 214982 - HANDLE ASSY
$28.99
22 213171 213171 - PACKING
$8.99
23 222142 222142 - SCREW M5X28
$2.99
24 081027 081027 - NUT M5
$2.99
25 222955 222955 - HANGING STRAP ASSY.
$24.99
26 219490 219490 - SHAFT COUPLER ASSY
$33.99
27 217171 217171 - PLUNGER ASSY
$19.99
28 215351 215351 - CAP SCREW(M5X25)
$2.99
29 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
30 219087 219087 - CAP SCREW
$2.99
31 219088 219088 - CLAMPING KNOB
$27.99
32 550131 550131 - WASHER
$2.99
33 089976 089976 - BOLT
$2.99
