Home :: Parts Lookup :: Multicutters :: MC2320,MC2620 Shaft breadcrumb_end

Model Type:

Model:

Assembly:

All Diagrams for this Model

Shaft

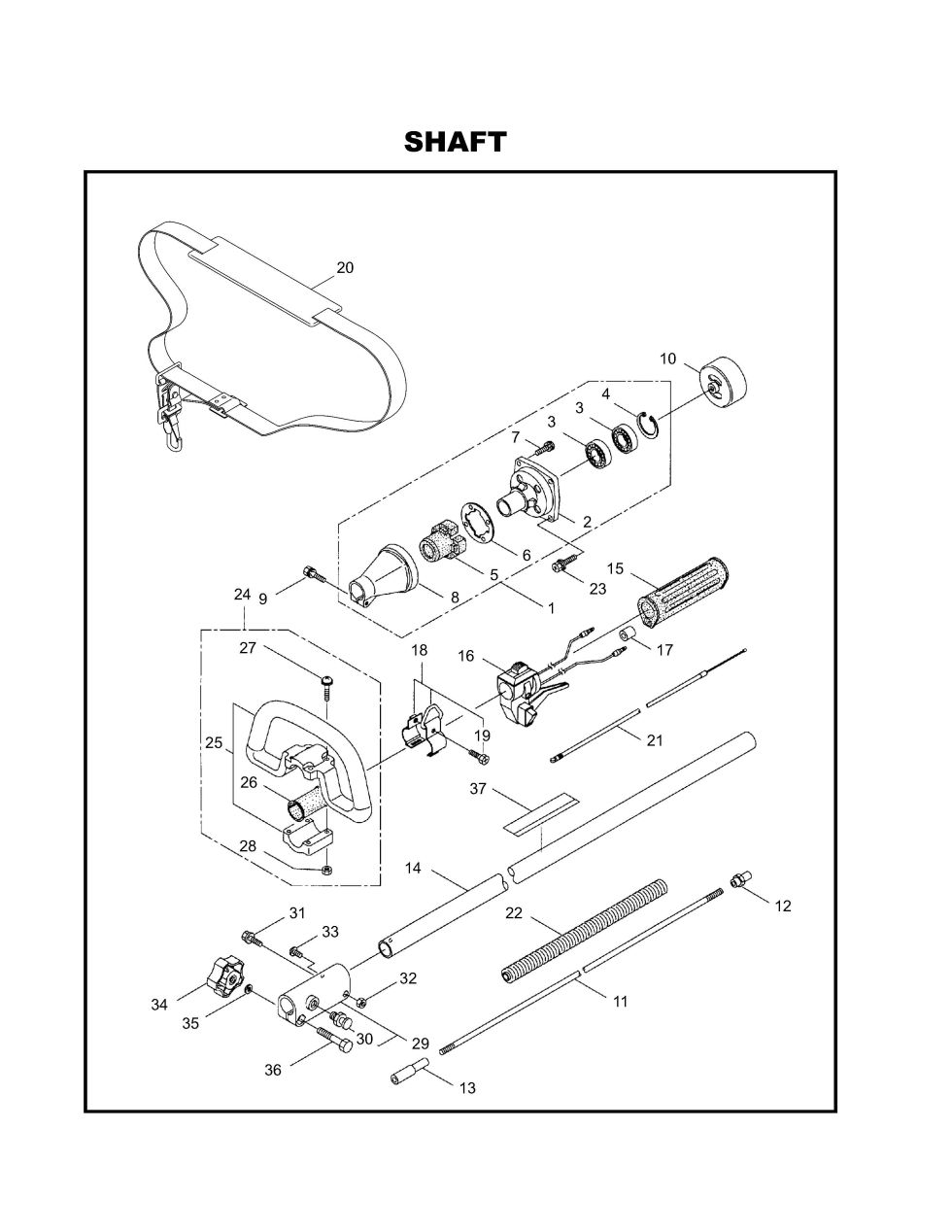

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC2320,MC2620. You have selected the Shaft diagram for the Maruyama MC2320,MC2620 Multicutters. Below you will find an interactive part diagram for the MC2320,MC2620 Shaft. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC2320,MC2620 parts not shown in this diagram you may select from one of the other MC2320,MC2620 part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number	SKU	Product title	Price
1	219469	219469 - CLUTCH CASE ASSY	$136.99
2	218879	218879 - BEARING CASE	$29.99
3	214161	214161 - USE: 102680	$13.99
4	054676	054676 - SNAP RING	$2.99
5	214162	214162 - BUFFER	$28.99
6	214163	214163 - WASHER	$11.99
7	092033	092033 - SCREW(M5X15)	$2.99
8	218880	218880 - DRIVESHAFT TUBE ADAP	$36.99
9	261246	261246 - CAP SCREW M5X25	$2.99
10	219083	219083 - CLUTCH DRUM	$28.99
11	219084	219084 - DRIVESHAFT	$27.99
12	211464	211464 - UPPER ADAPTER	$19.99
13	215276	215276 - LOWER ADAPTER	$42.99
14	219085	219085 - DRIVESHAFT TUBE	$40.99
15	215532	215532 - SHAFT GRIP	$24.99
16	221465	221465 - THROTTLE TRIGGER	$62.99
17	214083	214083 - OUTER GUIDE	$2.99
18	054691	054691 - HANGING BRACKET ASSY	$13.99
19	089738	089738 - BOLT	$2.99
20	220533	220533 - SHOULDER STRAP ASSY	$28.99
21	213444	213444 - THROTTLE CABLE	$13.99
22	213548	213548 - PLASTIC TUBE	$2.99
23	261250	261250 - BOLT M5X20	$2.99
24	215601	215601 - LOOP HANDLE ASSY	$27.99
25	214982	214982 - HANDLE ASSY	$28.99
26	213171	213171 - PACKING	$8.99
27	215608	215608 - CAP SCREW	$2.99
28	089846	089846 - NUT M5 (obsolete) use part #081027	$2.99
29	219490	219490 - SHAFT COUPLER ASSY	$33.99
30	217171	217171 - PLUNGER ASSY	$19.99
31	215351	215351 - CAP SCREW(M5X25)	$2.99
33	219087	219087 - CAP SCREW	$2.99
34	219088	219088 - CLAMPING KNOB	$27.99
35	550131	550131 - WASHER	$2.99
37	224452	224452 - MODEL DECAL	$10.99
37	089976	089976 - BOLT	$2.99
