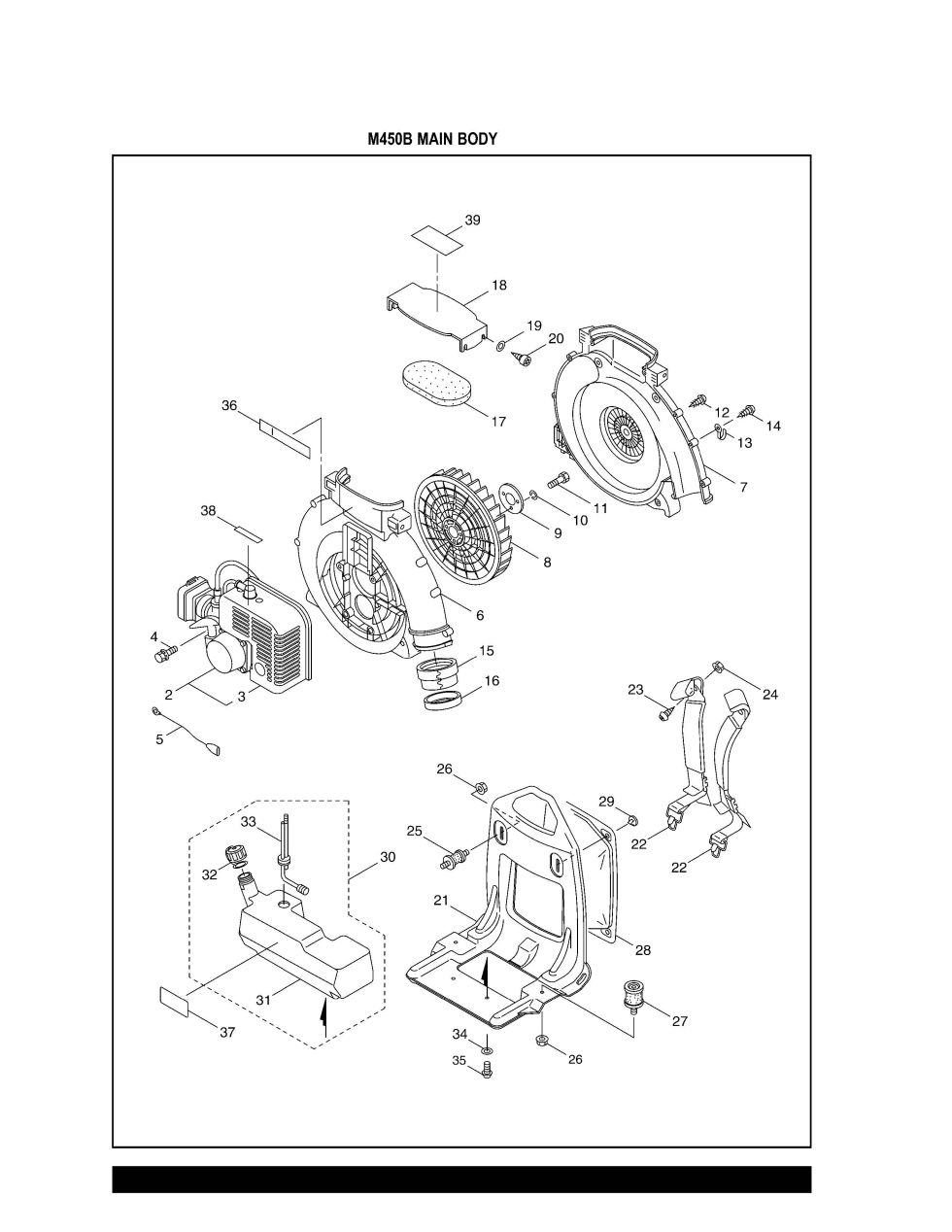

 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 3 | 119384 | 119384 - MUFFLER COVER |
$67.99
|
|
| 4 | 092543 | 092543 - BOLT |
$2.99
|
|
| 5 | 108634 | 108634 - GROUND CABLE |
$6.99
|
|
| 6 | 122300 | 122300 - FAN CASE(E) |
$51.99
|
|
| 7 | 122301 | 122301 - FAN CASE(S) |
$57.99
|
|
| 8 | 118724 | 118724 - FAN |
$68.99
|
|
| 9 | 118248 | 118248 - SS DOUGHNUT PLATE |
$5.99
|
|
| 10 | 012502 | 012502 - SPRING WASHER |
$2.99
|
|
| 11 | 119558 | 119558 - BOLT |
$2.99
|
|
| 12 | 118530 | 118530 - USE: 89538 |
$2.99
|
|
| 13 | 103550 | 103550 - CLAMP |
$2.99
|
|
| 15 | 119160 | 119160 - COLLAR |
$5.99
|
|
| 16 | 119161 | 119161 - BAND |
$7.99
|
|
| 17 | 112028 | 112028 - PACKING |
$11.99
|
|
| 18 | 121966 | 121966 - NLA COVER |
$24.99
|
|
| 19 | 013754 | 013754 - Washer (M6) |
$0.81
|
|
| 20 | 082708 | 082708 - TAPPING SCREW |
$2.99
|
|
| 21 | 122302 | 122302 - KNAPSACK FRAME |
$85.99
|
|
| 22 | 120625 | 120625 - KNAPSACK BAND |
$30.99
|
|
| 24 | 550132 | 550132 - USE: 127237 |
$2.99
|
|
| 25 | 026223 | 026223 - BUFFER |
$17.99
|
|
| 26 | 109704 | 109704 - USE: 127228 |
$2.99
|
|
| 27 | 120615 | 120615 - SHOCK ABSORBER |
$22.99
|
|
| 28 | 107482 | 107482 - CUSHION PAD |
$32.99
|
|
| 29 | 100749 | 100749 - PAD RETAINER |
$2.99
|
|
| 30 | 119388 | 119388 - FUEL TANK ASSY |
$61.99
|
|
| 31 | 120154 |
120154 - FUEL TANK (obsolete) use part #127673 |
$31.99
|
|
| 32 | 119390 | 119390 - FUEL CAP ASSY |
$26.99
|
|
| 33 | 119391 | 119391 - FUEL FILTER |
$39.99
|
|
| 34 | 015479 | 015479 - WASHER |
$2.99
|
|
| 35 | 081414 | 081414 - SCREW |
$2.99
|
|
| 36 | 120675 | 120675 - DECAL |
$2.99
|
|
| 37 | 121132 | 121132 - LABEL(BP400) |
$5.99
|
|
| 38 | 266959 | 266959 - LABEL |
$6.99
|
|
| 39 | 122303 | 122303 - MODEL DECAL |
$16.99
|
