Main Body

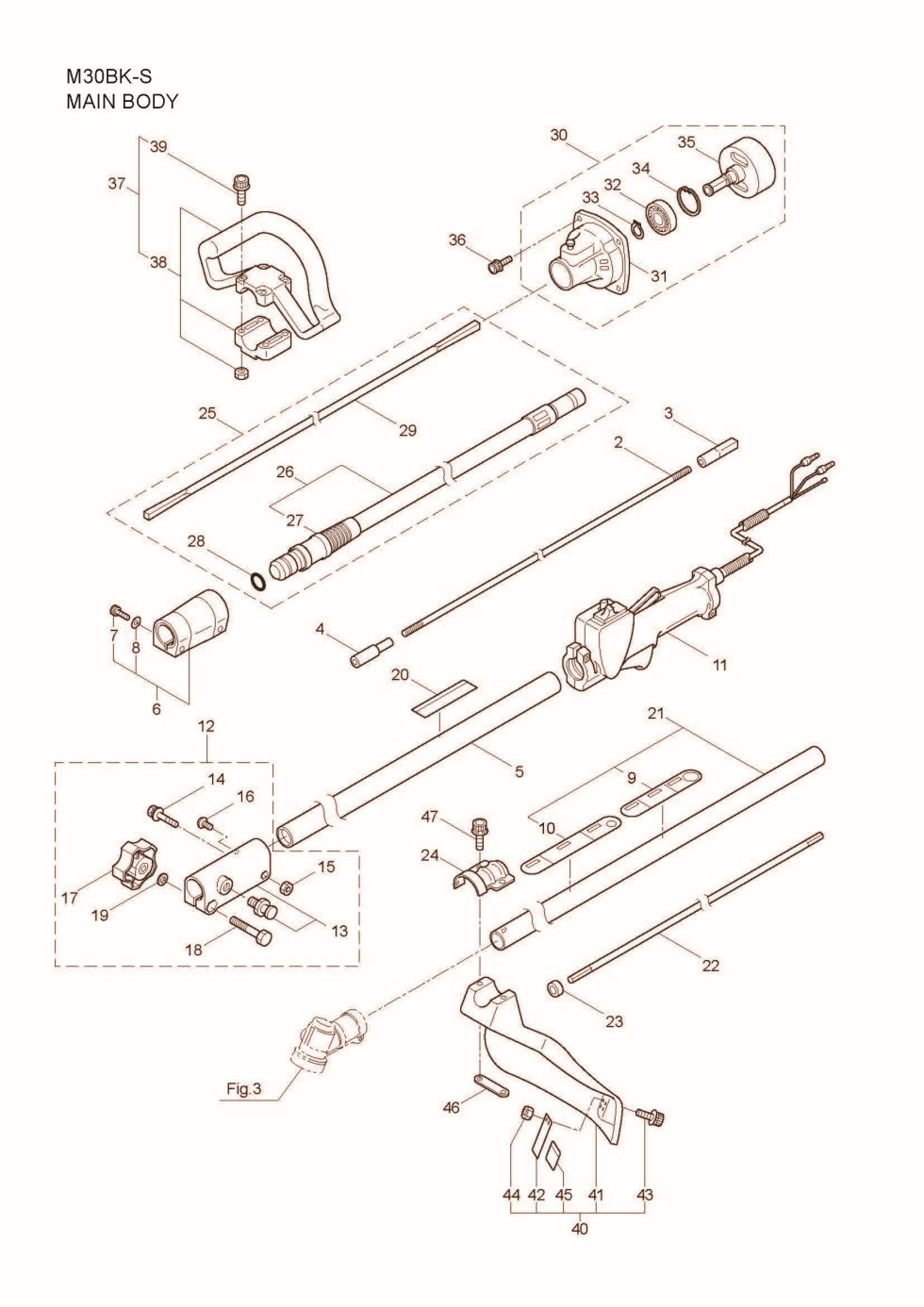

Main Body

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M30BK-S. You have selected the Main Body diagram for the Maruyama M30BK-S Multicutters. Below you will find an interactive part diagram for the M30BK-S Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M30BK-S parts not shown in this diagram you may select from one of the other M30BK-S part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
2 221978 221978 - DRIVESHAFT
$24.99
3 216924 216924 - ADAPTER
$14.99
4 215276 215276 - LOWER ADAPTER
$42.99
5 221979 221979 - DRIVESHAFT TUBE
$41.99
6 214365 214365 - JOINT PIPE ASSY
$32.99
7 087786 087786 - CAP SCREW
$2.99
8 012487 012487 - WASHER
$2.99
9 221501 221501 - LABEL
$9.99
10 221502 221502 - LABEL
$14.99
11 223647 223647 - THROTTLE TRIGGER
$58.99
12 219489 219489 - SHAFT COUPLER ASSY
$38.99
13 219490 219490 - SHAFT COUPLER ASSY
$33.99
14 215351 215351 - CAP SCREW(M5X25)
$2.99
15 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
16 219087 219087 - CAP SCREW
$2.99
17 219088 219088 - CLAMPING KNOB
$27.99
18 089976 089976 - BOLT
$2.99
19 550131 550131 - WASHER
$2.99
20 232483 232483 - LABEL
$13.99
21 220086 220086 - DRIVESHAFT TUBE ASSY
$72.99
22 216090 216090 - DRIVESHAFT
$37.99
23 216079 216079 - STOPPER
$8.99
24 225962 225962 - BRACKET
$7.99
25 222530 222530 - OUTER ASSY
$144.99
26 222531 222531 - OUTER
$123.99
27 215885 215885 - COVER
$22.99
28 011338 011338 - O-RING
$2.99
29 211895 211895 - INNER SHAFT
$60.99
30 220202 220202 - CLUTCH CASE ASSY
$73.99
31 220203 220203 - CLUTCH CASE
$33.99
32 217659 217659 - BEARING #6201 2RK
$21.99
33 055186 055186 - C-SHAPED SNAP RING 12
$2.99
34 016732 016732 - C SHAPED SNAP RING 3
$2.99
35 220052 220052 - CLUTCH DRUM
$33.99
36 261250 261250 - BOLT M5X20
$2.99
37 227816 227816 - LOOP HANDLE ASSY
$28.99
38 222139 222139 - USE: 222059
$32.99
39 215608 215608 - CAP SCREW
$2.99
40 226300 226300 - SAFETY COVER ASSY
$39.99
41 225961 225961 - SAFETY COVER
$27.99
42 231493 231493 - LINE CUTTER (LONG)
$8.99
43 227817 227817 - BOLT
$2.99
45 212972 212972 - STRING CUTTER COVER
$2.99
46 225963 225963 - THREADED BRACKET
$2.99
47 261612 261612 - BOLT
$2.99
