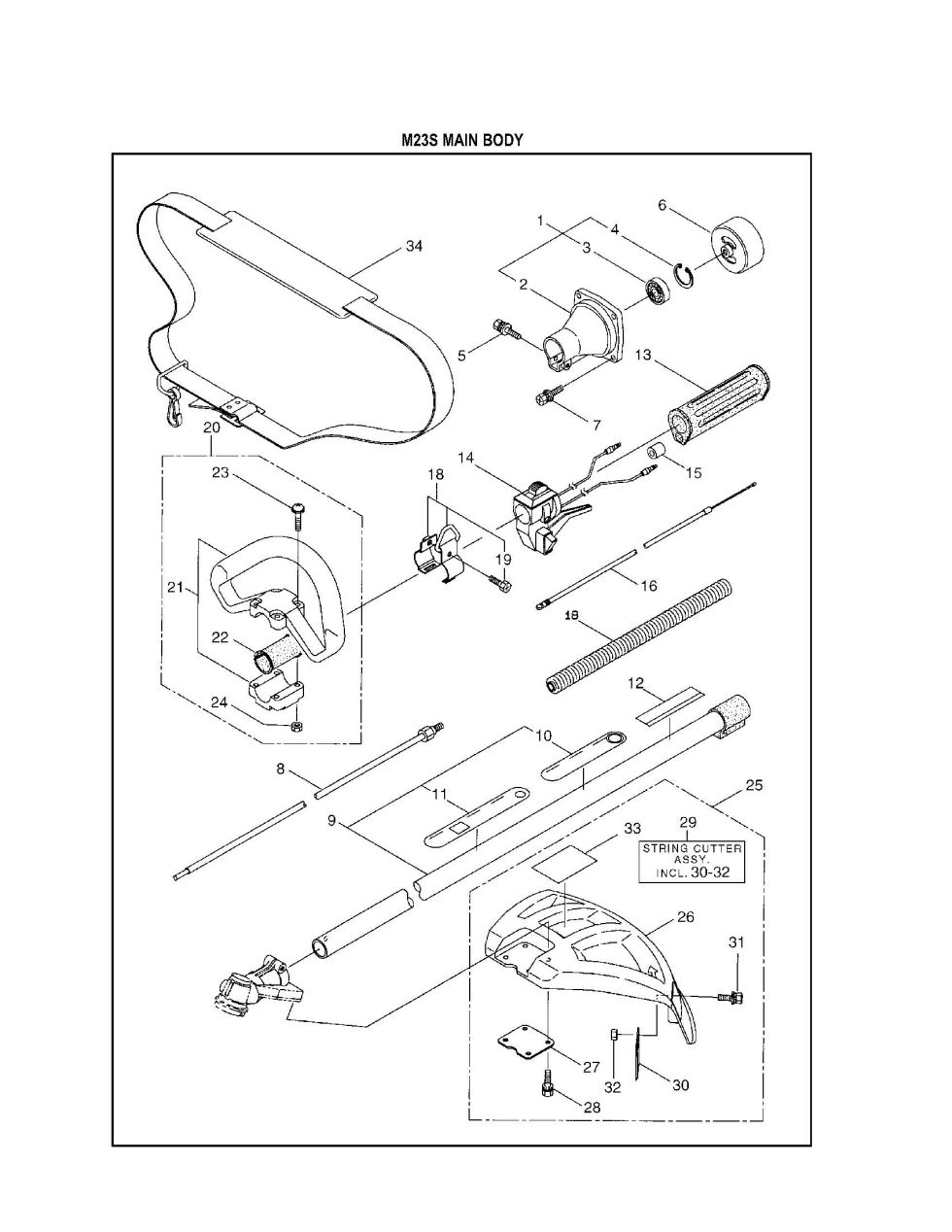

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M23S. You have selected the Main Body diagram for the Maruyama M23S Big M Equipment. Below you will find an interactive part diagram for the M23S Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M23S parts not shown in this diagram you may select from one of the other M23S part assemblies or select a different Big M Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Big M Equipment parts.

Position number SKU Product title Price
1 221473 221473 - CLUTCH CASE ASSY
$50.99
2 221474 221474 - CLUTCH CASE
$38.99
3 016405 016405 - BEARING
$22.99
4 013825 013825 - C-SHAPED SNAP RING
$2.99
5 096042 096042 - BOLT (M5X30)
$2.99
6 054677 054677 - CLUTCH DRUM
$32.99
7 817002 817002 - BOLT
$2.99
8 221524 221524 - DRIVESHAFT ASSY
$38.99
9 224850 224850 - NLA DRIVESHAFT T
$104.99
10 221501 221501 - LABEL
$9.99
11 221502 221502 - LABEL
$14.99
12 224835 224835 - NLA LABEL
$10.99
13 215532 215532 - SHAFT GRIP
$24.99
14 222953 222953 - THROTTLE TRIGGER (obsolete)
use part #221465
$62.99
15 214083 214083 - OUTER GUIDE
$2.99
16 223051 223051 - THROTTLE CABLE
$9.99
18 054691 054691 - HANGING BRACKET ASSY
$13.99
19 089738 089738 - BOLT
$2.99
20 219046 219046 - NLA LOOP HANDLE ASSY
$24.99
21 219032 219032 - NLA LOOP HANDLE
$31.99
22 213171 213171 - PACKING
$8.99
23 092088 092088 - SCREW
$2.99
24 081027 081027 - NUT M5
$2.99
25 224836 224836 - SAFETY COVER ASSY
$32.99
26 224837 224837 - NLA SAFETY COVER
$23.99
27 222899 222899 - PLATE
$6.99
28 092579 092579 - BOLT
$2.99
29 222898 222898 - STRING CUTTER ASSY
$13.99
30 222900 222900 - NLA STRING CUTTER
$8.99
31 092548 092548 - BOLT M5X15
$2.99
33 220895 220895 - NLA DECAL
$17.99
34 222955 222955 - HANGING STRAP ASSY.
$24.99
