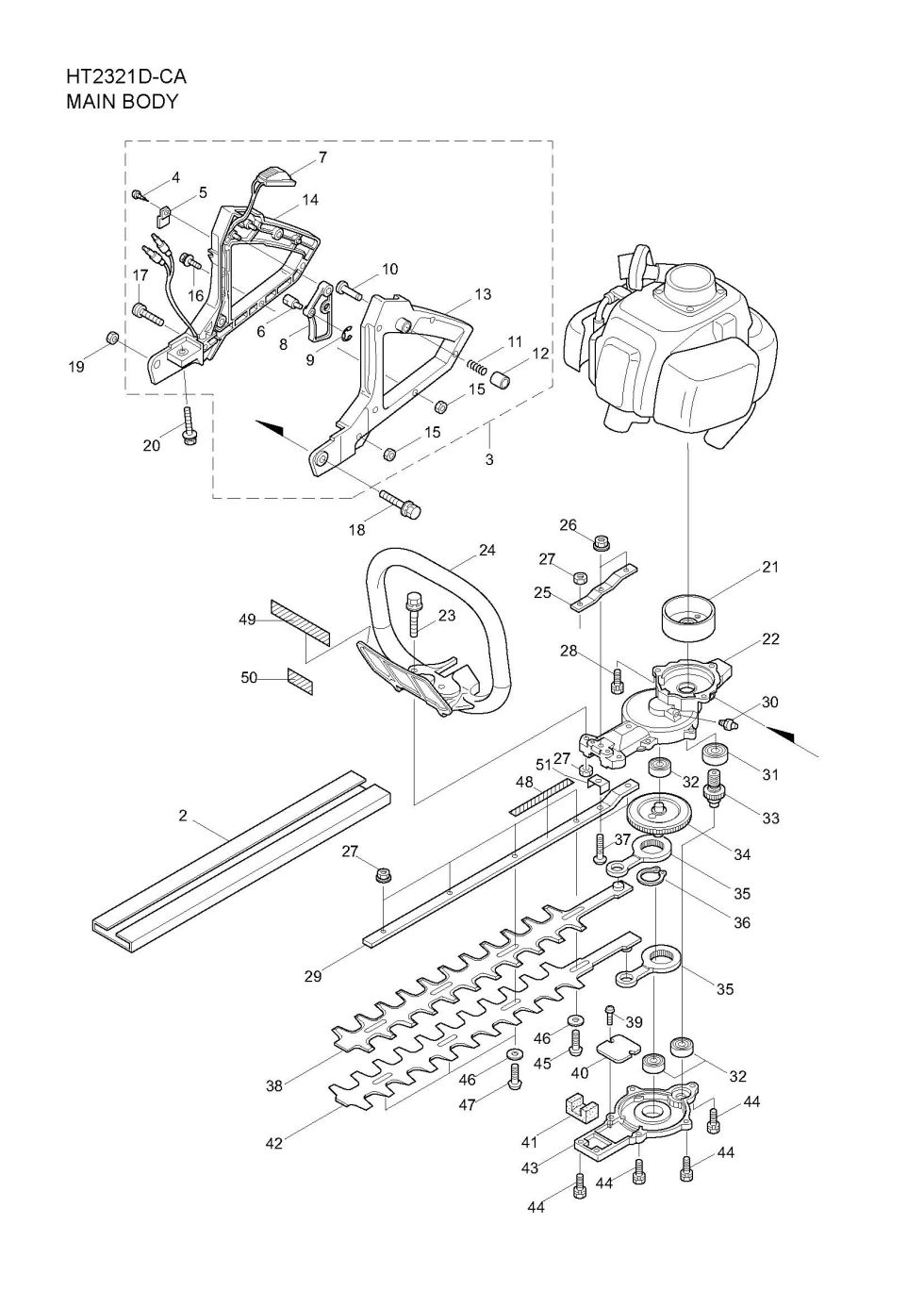

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT2321D-CA. You have selected the Main Body diagram for the Maruyama HT2321D-CA Hedge Trimmers. Below you will find an interactive part diagram for the HT2321D-CA Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT2321D-CA parts not shown in this diagram you may select from one of the other HT2321D-CA part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
2 217677 217677 - BLADE SHIELD
$39.99
3 270568 270568 - REAR HANDLE ASSY
$90.99
4 997258 997258 - SCREW(M4X10)
$2.99
5 997259 997259 - CABLE HOLDER
$2.99
6 997260 997260 - SWIVEL
$24.99
7 270569 270569 - USE: 271594
$27.99
8 997262 997262 - THROTTLE LEVER
$13.99
9 997263 997263 - RING SNAP
$2.99
10 997264 997264 - PIN, LEVER
$16.99
11 997265 997265 - SPRING
$6.99
12 997266 997266 - FIXING KNOB
$8.99
13 270147 270147 - NS REAR HANDLE (L)
$21.99
14 270099 270099 - REAR HANDLE (R)
$30.99
15 270233 270233 - U-NUT
$2.99
16 997268 997268 - SCREW(M4X16)
$2.99
17 997269 997269 - SCREW(M4X30)
$2.99
18 270119 270119 - BOLT(M6X50)
$2.99
19 997253 997253 - HEX NUT(M6)
$2.99
20 270120 270120 - SCREW(M6X40)
$2.99
21 270021 270021 - DRUM
$45.99
22 270760 270760 - UPPER CASE
$126.99
23 270029 270029 - BOLT M6X35
$2.99
24 582441 582441 - FRONT HANDLE
$87.99
25 270759 270759 - PLATE
$17.99
26 997244 997244 - USE: 127226
$2.99
27 991941 991941 - USE: 290560
$2.99
28 270030 270030 - BOLT(M6X20)
$2.99
29 581912 581912 - BLADE GUIDE - 24IN
$57.99
30 991937 991937 - NIPPLE, GREASE
$6.99
31 580767 580767 - BALL BEARING (#6001-
$29.99
32 270423 270423 - BEARING
$22.99
33 584666 584666 - PINION GEAR
$88.99
34 591443 591443 - CRANK COMPLETE
$148.99
35 997282 997282 - USE: 271466
$62.99
36 580777 580777 - SNAP RING
$7.99
37 991931 991931 - SCREW
$2.99
38 570687 570687 - USE: 581913
$140.99
39 991924 991924 - SCREW
$2.99
40 991919 991919 - PLATE ROD SLIDE
$19.99
41 270758 270758 - FELT
$14.99
42 570688 570688 - LOWER BLADE 24 INCH
$86.99
43 270756 270756 - LOWER CASE
$44.99
44 580791 580791 - HEX HEAD BOLT
$2.99
45 991912 991912 - SCREW FOR FITTING BL
$5.99
46 991913 991913 - WASHER
$2.99
47 991914 991914 - SCREW
$10.99
48 591450 591450 - LABEL
$5.99
49 591449 591449 - NLA LABEL
$5.99
50 223925 223925 - LABEL
$2.99
51 270757 270757 - PLATE
$14.99
