Driveshaft

Driveshaft

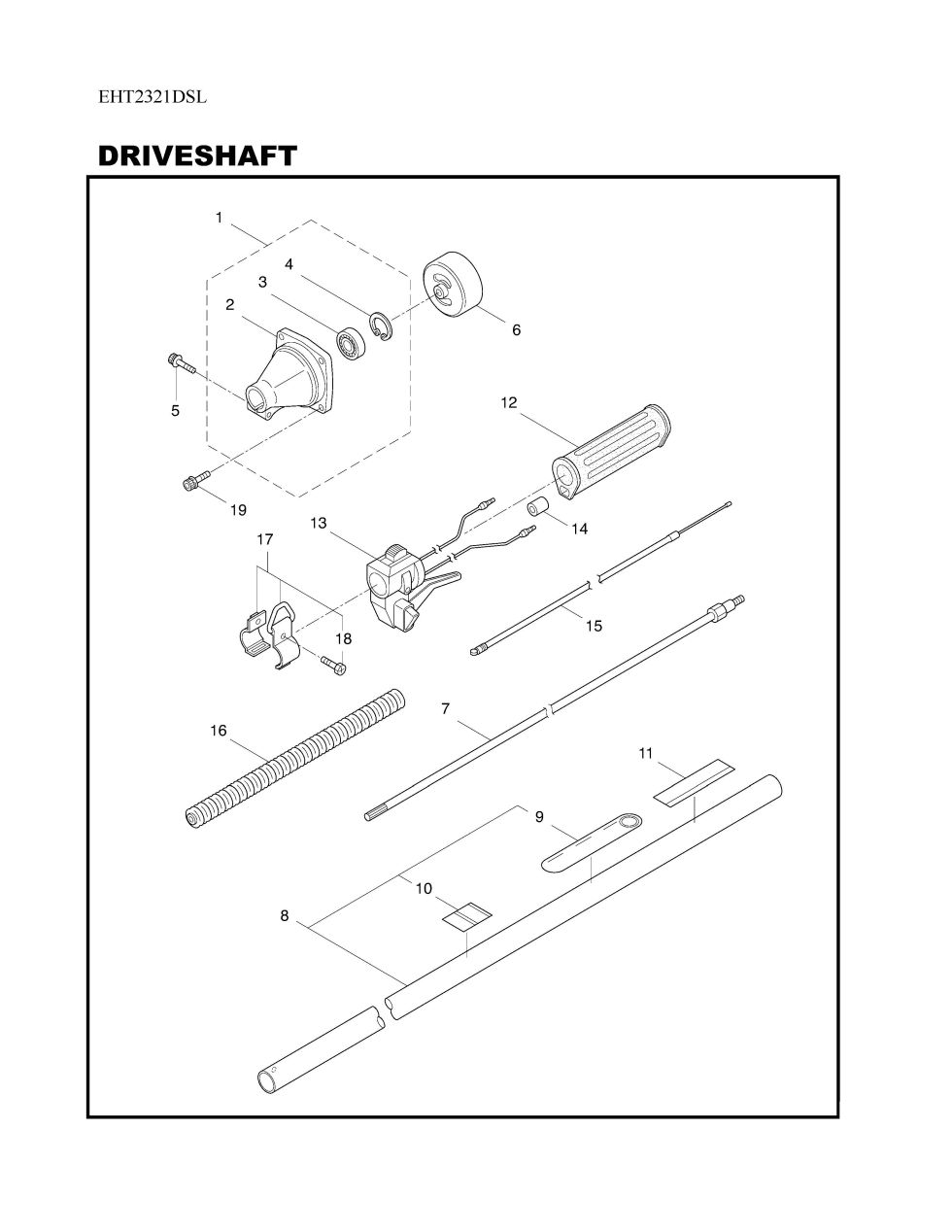

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your EHT2321DSL. You have selected the Driveshaft diagram for the Maruyama EHT2321DSL Hedge Trimmers. Below you will find an interactive part diagram for the EHT2321DSL Driveshaft. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the EHT2321DSL parts not shown in this diagram you may select from one of the other EHT2321DSL part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
1 219602 219602 - CLUTCH CASE ASSY
$46.99
2 219465 219465 - CLUTCH CASE
$36.99
3 016405 016405 - BEARING
$22.99
4 013825 013825 - C-SHAPED SNAP RING
$2.99
5 261246 261246 - CAP SCREW M5X25
$2.99
6 054677 054677 - CLUTCH DRUM
$32.99
7 224644 224644 - DRIVESHAFT ASSY.
$35.99
9 221501 221501 - LABEL
$9.99
10 217879 217879 - LABEL
$6.99
11 228247 228247 - LABEL
$12.99
12 215532 215532 - SHAFT GRIP
$24.99
13 221465 221465 - THROTTLE TRIGGER
$62.99
14 214083 214083 - OUTER GUIDE
$2.99
15 213444 213444 - THROTTLE CABLE
$13.99
16 213548 213548 - PLASTIC TUBE
$2.99
17 054691 054691 - HANGING BRACKET ASSY
$13.99
18 089738 089738 - BOLT
$2.99
19 261250 261250 - BOLT M5X20
$2.99
