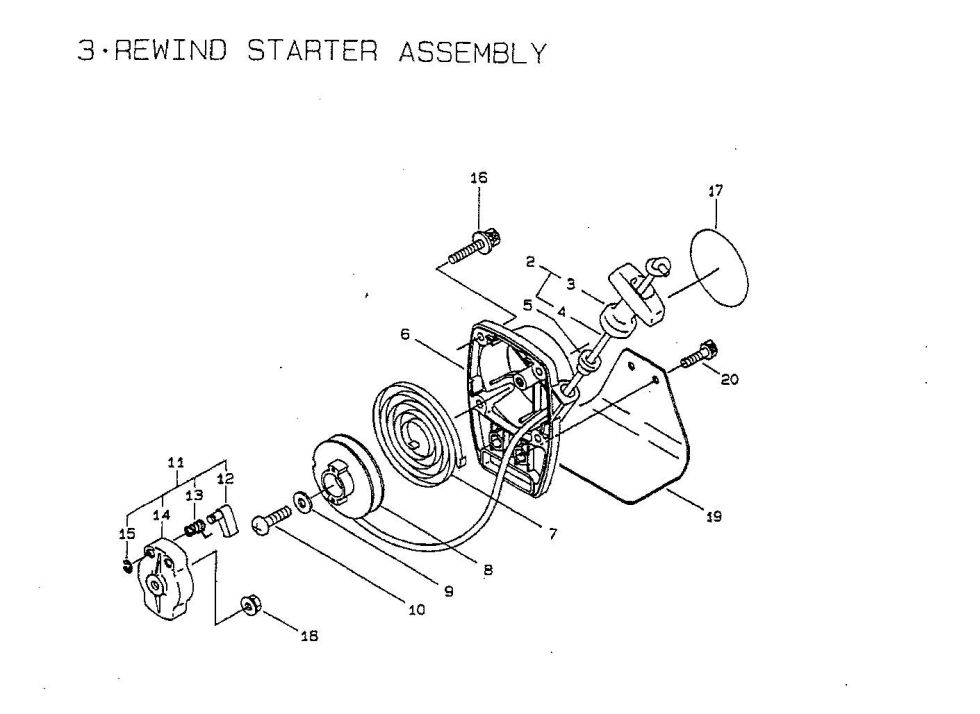

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your ED260. You have selected the Rewind Starter Assembly diagram for the Maruyama ED260 Edgers. Below you will find an interactive part diagram for the ED260 Rewind Starter Assembly. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the ED260 parts not shown in this diagram you may select from one of the other ED260 part assemblies or select a different Edgers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Edgers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 261723 | 261723 - ROPE ASSY |
$24.99
|
|
| 3 | 261725 | 261725 - STARTER GRIP |
$9.99
|
|
| 4 | 261724 | 261724 - STARTER ROPE |
$9.99
|
|
| 5 | 261625 | 261625 - NS ROPE GUIDE |
$5.99
|
|
| 6 | 262040 | 262040 - STARTER CASE |
$16.99
|
|
| 7 | 261721 | 261721 - SPIRAL SPRING |
$24.99
|
|
| 8 | 261720 | 261720 - NLA REEL |
$13.99
|
|
| 9 | 261722 | 261722 - NLA WASHER |
$2.99
|
|
| 10 | 261624 | 261624 - NLA SET SCREW |
$2.99
|
|
| 11 | 261421 |
261421 - STARTER PAWL (obsolete) use part #263475 |
$28.99
|
|
| 12 | 261727 | 261727 - NLA PAWL |
$7.99
|
|
| 13 | 261728 | 261728 - RETURN SPRING |
$2.99
|
|
| 14 | 261726 | 261726 - PAWL CASE |
$12.99
|
|
| 15 | 020299 | 020299 - E-SHAPED SNAP RING |
$2.99
|
|
| 16 | 261257 | 261257 - CAP SCREW M4X16 |
$2.99
|
|
| 17 | 260459 | 260459 - LABEL |
$2.99
|
|
| 19 | 262415 | 262415 - USE: 264658 |
$10.99
|
|
| 20 | 261607 | 261607 - BOLT M5X16 |
$2.99
|
