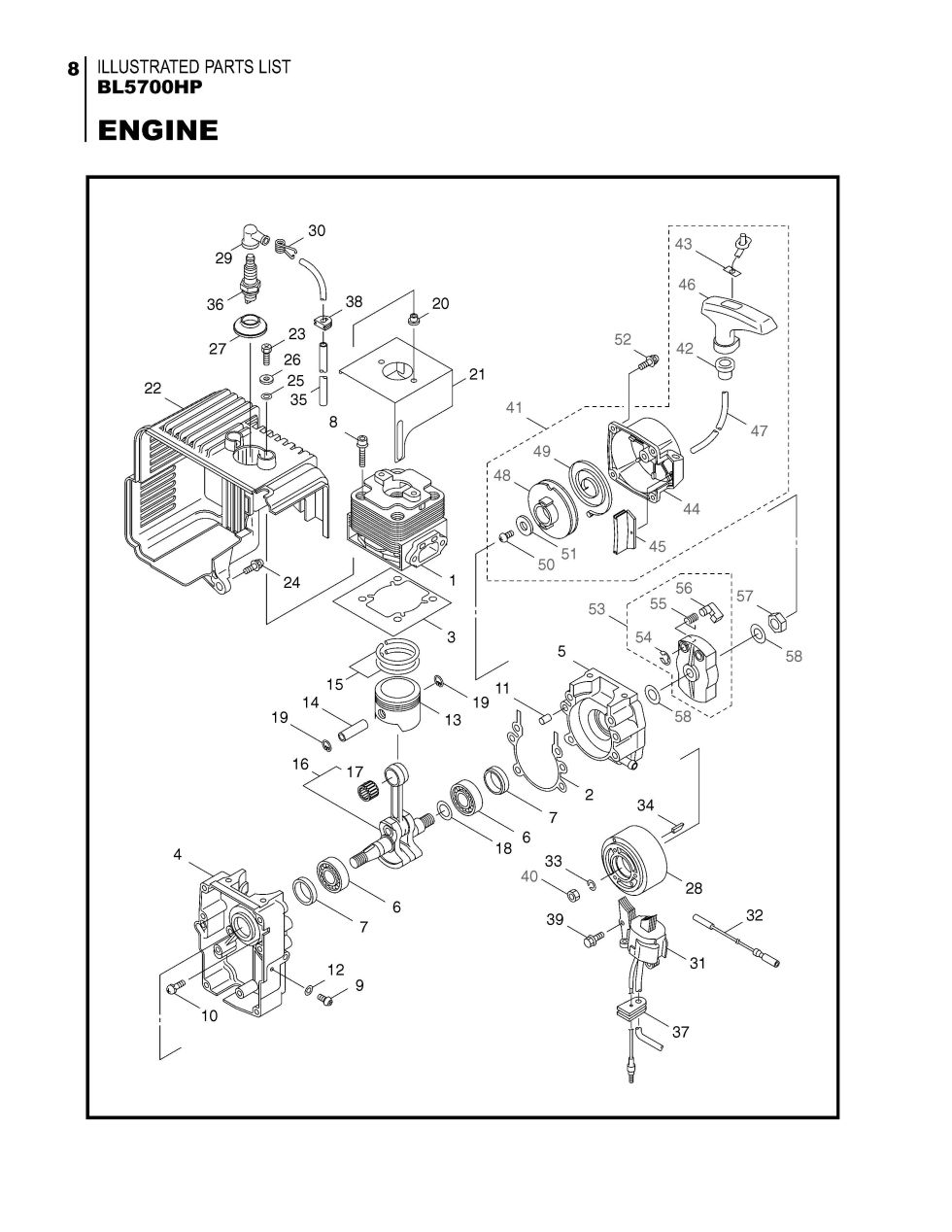

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL5700HP. You have selected the Engine diagram for the Maruyama BL5700HP Blowers. Below you will find an interactive part diagram for the BL5700HP Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL5700HP parts not shown in this diagram you may select from one of the other BL5700HP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
1 634340 634340 - CYLINDER
$134.99
2 570248 570248 - GASKET
$5.99
3 634341 634341 - GASKET
$21.99
4 634342 634342 - CRANKCASE
$183.99
5 634343 634343 - CRANKCASE
$183.99
6 597283 597283 - BEARING
$29.99
7 071320 071320 - OIL SEAL
$19.99
8 597284 597284 - BOLT
$8.99
9 944619 944619 - SCREW
$2.99
10 599880 599880 - SCREW
$2.99
11 943349 943349 - DOWEL PIN
$2.99
12 943893 943893 - GASKET
$2.99
13 570244 570244 - PISTON
$93.99
14 944769 944769 - PISTON PIN
$9.99
15 943304 943304 - PISTON RING SET
$29.99
16 570245 570245 - CRANKSHAFT ASSY
$173.99
17 943281 943281 - NEEDLE BEARING
$23.99
19 943307 943307 - SNAP RING
$2.99
20 630053 630053 - INSULATOR
$11.99
21 634344 634344 - NLA SHROUD
$24.99
22 634345 634345 - ENGINE SHROUD
$96.99
23 573307 573307 - BOLT
$2.99
24 580184 580184 - SCREW
$2.99
25 621123 621123 - WASHER
$2.99
26 575415 575415 - NLA WASHER
$6.99
27 570252 570252 - COVER
$9.99
28 634346 634346 - FLYWHEEL
$104.99
29 591532 591532 - SPARK PLUG CAP
$19.99
30 591533 591533 - SPRING
$2.99
31 634347 634347 - IGNITION COIL ASSY
$116.99
32 597263 597263 - LEAD WIRE
$19.99
33 943924 943924 - WASHER
$2.99
34 998409 998409 - KEY
$12.99
35 998411 998411 - TUBE
$2.99
36 627409 627409 - SPARK PLUG BPMR7A
$24.99
37 597293 597293 - GROMMET
$10.99
38 634348 634348 - GROMMET
$5.99
39 943457 943457 - BOLT
$2.99
40 998410 998410 - NUT
$6.99
41 998413 998413 - RECOIL STARTER ASSY
$100.99
42 998438 998438 - ROPE GUIDE
$17.99
43 944502 944502 - WASHER
$8.99
44 998439 998439 - RECOIL CASE
$57.99
45 998440 998440 - SHIELD
$20.99
46 998437 998437 - RECOIL STARTER HANDL
$27.99
47 998436 998436 - ROPE
$24.99
48 998434 998434 - RECOIL REEL
$35.99
49 998435 998435 - SPRING
$33.99
50 570720 570720 - SCREW
$2.99
51 998433 998433 - WASHER
$2.99
52 624845 624845 - SCREW M4X16
$2.99
53 998414 998414 - STARTER PAWL ASSY
$33.99
54 013525 013525 - E-RING
$2.99
55 579573 579573 - RETURN SPRING
$12.99
56 572938 572938 - PAWL
$17.99
57 998417 998417 - NLA NUT
$2.99
58 071344 071344 - WASHER
$2.99
