Power Head Assembly

Power Head Assembly

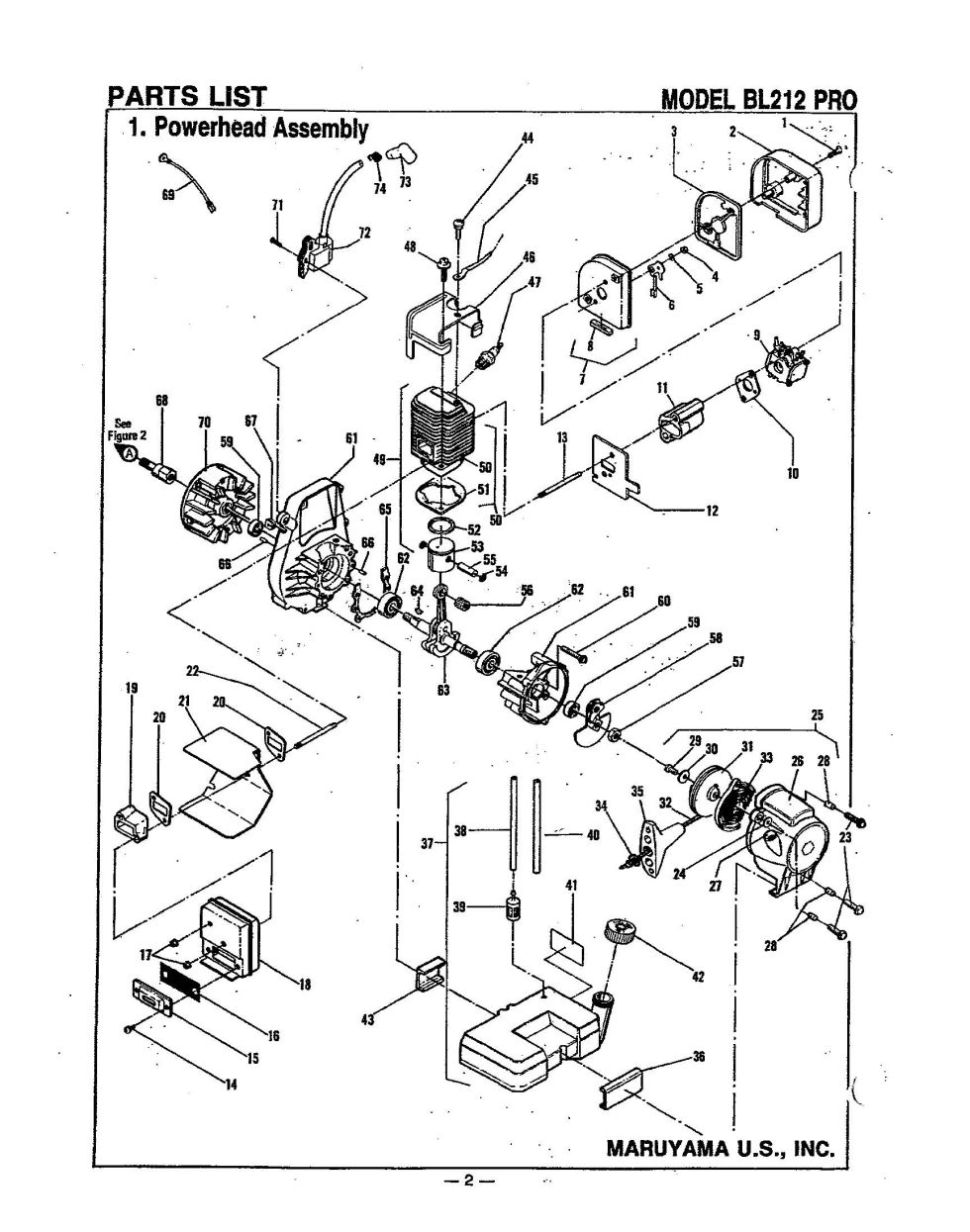

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL212. You have selected the Power Head Assembly diagram for the Maruyama BL212 Blowers. Below you will find an interactive part diagram for the BL212 Power Head Assembly. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL212 parts not shown in this diagram you may select from one of the other BL212 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
1 840161 840161 - NLA SCREW
$2.99
2 840162 840162 - NLA*** AIR CLEANER COVER
$7.99
3 840163 840163 - NLA*** AIR FILTER ASSY
$5.99
4 840164 840164 - NLA NUT
$2.99
5 840165 840165 - SPACER-SHUTTER
$2.99
6 840166 840166 - NLA SHUTTER-CHOKE
$2.99
7 840167 840167 - NLA*** GROMMET ASSY
$11.99
8 840168 840168 - GROMMET
$2.99
9 840169 840169 - CARBURETOR ASSY -
$77.99
10 840170 840170 - NLA*** CARBURETOR GASKET
$2.99
11 840171 840171 - NLA*** CARBURETOR INSULATOR * No Longer Available
Obsolete.
12 840172 840172 - GASKET
$7.99
13 840173 840173 - STUD
$2.99
14 840174 840174 - SCREW
$2.99
15 840175 840175 - MUFFLER OUTLET
$6.99
16 840176 840176 - SCREEN-SPARK ARRESTO
$2.99
18 840177 840177 - NLA*** MUFFLER ASSY
$23.99
19 840178 840178 - MUFFLER SPACER
$6.99
20 840179 840179 - NLA*** MUFFLER GASKET * No Longer Available
Obsolete.
21 840180 840180 - NLA*** MUFFLER SHIELD * No Longer Available
Obsolete.
23 840181 840181 - SCREW
$2.99
24 840182 840182 - WASHER
$2.99
25 840183 840183 - NLA*** STARTER ASSY
$32.99
26 840184 840184 - HOUSING STARTER
$21.99
27 840185 840185 - GUIDE
$2.99
28 840186 840186 - SPACER
$2.99
29 840187 840187 - SCREW
$2.99
30 840188 840188 - WASHER
$2.99
31 840189 840189 - NLA*** ROPE ASSY
$13.99
32 840190 840190 - STARTER ROPE
$8.99
33 840191 840191 - NLA*** SPRING-STARTER * No Longer Available
Obsolete.
34 840192 840192 - NLA*** WASHER-NYLON * No Longer Available
Obsolete.
35 840193 840193 - NLA*** STARTER HANDLE * No Longer Available
Obsolete.
36 840194 840194 - NLA*** CUSHION * No Longer Available
Obsolete.
37 840195 840195 - NLA*** FUEL TANK ASSY
$21.99
38 840196 840196 - FUEL HOSE
$2.99
39 840197 840197 - FUEL PICKUP
$7.99
40 840198 840198 - NLA*** FUEL RETURN HOSE * No Longer Available
Obsolete.
41 840199 840199 - NLA*** DECAL-40:1 * No Longer Available
Obsolete.
42 840200 840200 - NLA*** FUEL CAP
$20.99
43 840201 840201 - NLA*** FUEL TANK CUSHION * No Longer Available
Obsolete.
44 840202 840202 - NLA*** SCREW * No Longer Available
Obsolete.
45 840203 840203 - NLA*** GROUND TERMINAL ASSY * No Longer Available
Obsolete.
46 840204 840204 - NLA*** CYLINDER COVER
$6.99
47 840205 840205 - NLA*** SPARK PLUG
$11.99
48 840206 840206 - NLA*** SCREW* No Longer Available
Obsolete.
49 840207 840207 - NLA*** CYLINDER-PISTON KIT
$51.99
50 840208 840208 - NLA*** GASKET
$43.99
51 840209 840209 - GASKET
$2.99
52 840210 840210 - PISTON RING
$17.99
53 840211 840211 - PISTON
$28.99
54 840212 840212 - NLA*** SNAP RING * No Longer Available
Obsolete.
55 840213 840213 - NLA*** WRIST PIN * No Longer Available
Obsolete.
56 840214 840214 - NLA*** NEEDLE BEARING * No Longer Available
Obsolete.
57 840215 840215 - NLA*** NUT * No Longer Available
Obsolete.
58 840216 840216 - RATCHET ASSY
$20.99
59 840217 840217 - OIL SEAL
$2.99
60 840218 840218 - SCREW
$2.99
61 840219 840219 - NLA*** CRANKCASE ASSY
$58.99
62 840220 840220 - NLA*** CRANKSHAFT BEARING
$23.99
63 840221 840221 - NLA*** CRANKSHAFT/ CON ROD ASSY
$163.99
64 840222 840222 - FLYWHEEL KEY
$2.99
65 840223 840223 - CRANKCASE GASKET
$2.99
66 840224 840224 - PIN
$2.99
67 840225 840225 - GROMMET
$2.99
68 840226 840226 - EXTENSION SHAFT
$11.99
69 840227 840227 - NLA*** No Longer Available
Obsolete.
70 840228 840228 - NLA*** FLYWHEEL
$32.99
72 840229 840229 - NLA*** IGNITION ASSY
$76.99
73 840230 840230 - SPARK PLUG BOOT
$10.99
74 840231 840231 - CONNECTOR
$2.99
