 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

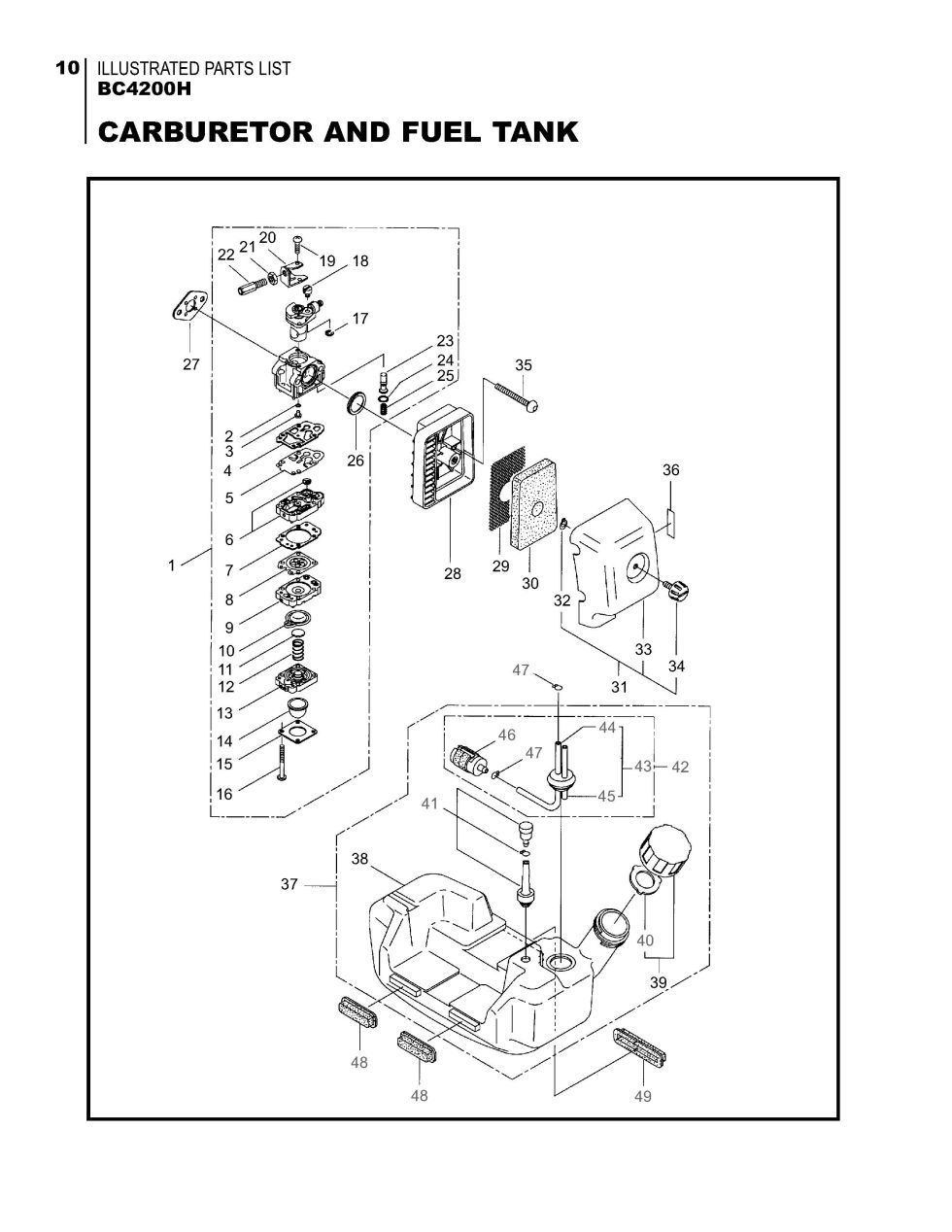

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 261871 | 261871 - O-RING |
$2.99
|
|
| 3 | 263247 | 263247 - JET #50 |
$18.99
|
|
| 4 | 261637 | 261637 - GASKET |
$11.99
|
|
| 5 | 261638 | 261638 - NLA DIAPHRAGM |
$10.99
|
|
| 6 | 263290 | 263290 - PUMP BODY |
$86.99
|
|
| 7 | 261642 | 261642 - GASKET |
$2.99
|
|
| 8 | 261873 | 261873 - DIAPHRAGM ASSY |
$17.99
|
|
| 9 | 261643 | 261643 - NLA DIAPHRAGM BODY |
$27.99
|
|
| 10 | 261644 | 261644 - DIAPHRAGM |
$14.99
|
|
| 11 | 261650 | 261650 - HOLDER |
$9.99
|
|
| 12 | 261649 | 261649 - SPRING |
$5.99
|
|
| 13 | 264212 | 264212 - PURGE BODY |
$33.99
|
|
| 14 | 264211 | 264211 - PRIMER BULB |
$23.99
|
|
| 15 | 264210 | 264210 - COVER PLATE |
$18.99
|
|
| 16 | 263251 | 263251 - SCREW |
$10.99
|
|
| 17 | 261876 | 261876 - E-RING |
$2.99
|
|
| 18 | 261658 | 261658 - SWIVEL |
$18.99
|
|
| 19 | 260607 | 260607 - USE: 261875 |
$2.99
|
|
| 20 | 263250 | 263250 - BRACKET |
$23.99
|
|
| 21 | 261878 | 261878 - NUT |
$2.99
|
|
| 22 | 263994 | 263994 - ADJUSTER |
$16.99
|
|
| 23 | 261653 | 261653 - INJECTION BUTTON |
$16.99
|
|
| 24 | 261655 | 261655 - O-RING |
$2.99
|
|
| 25 | 261656 | 261656 - SPRING |
$7.99
|
|
| 26 | 261657 | 261657 - PACKING |
$10.99
|
|
| 27 | 262587 | 262587 - GASKET |
$2.99
|
|
| 28 | 262640 | 262640 - NLA CASE BODY (NO SU |
$22.99
|
|
| 29 | 262727 | 262727 - SCREEN |
$6.99
|
|
| 30 | 262643 | 262643 - FOAM ELEMENT |
$12.99
|
|
| 31 | 262590 | 262590 - USE: 262588 |
$15.99
|
|
| 32 | 261734 | 261734 - SNAP RING |
$2.99
|
|
| 33 | 262591 | 262591 - AIR FILTER ASSY |
$13.99
|
|
| 34 | 261018 | 261018 - KNOB |
$7.99
|
|
| 35 | 262720 | 262720 - BOLT |
$2.99
|
|
| 36 | 261803 | 261803 - NLA LABEL |
$6.99
|
|
| 37 | 264761 | 264761 - FUEL TANK ASSY. |
$91.99
|
|
| 38 | 264760 | 264760 - FUEL TANK |
$29.99
|
|
| 39 | 261584 | 261584 - FUEL TANK CAP ASSY |
$15.99
|
|
| 40 | 261105 | 261105 - PACKING |
$2.99
|
|
| 41 | 261696 | 261696 - BREATHER ASSY |
$8.99
|
|
| 42 | 262645 | 262645 - FUEL PIPE ASSY |
$26.99
|
|
| 43 | 262646 | 262646 - FUEL PIPE ASSEMBLY |
$11.99
|
|
| 44 | 262649 | 262649 - FUEL PIPE |
$2.99
|
|
| 45 | 263038 | 263038 - RETURN PIPE |
$2.99
|
|
| 46 | 267328 |
267328 - FUEL FILTER ASSY (obsolete) use part #277887 |
$11.99
|
|
| 47 | 261117 | 261117 - CLIP |
$2.99
|
|
| 48 | 261119 | 261119 - PAD |
$2.99
|
|
| 49 | 262697 | 262697 - PAD |
$2.99
|
