Model Type:
Model:
Assembly:

All Diagrams for this Model

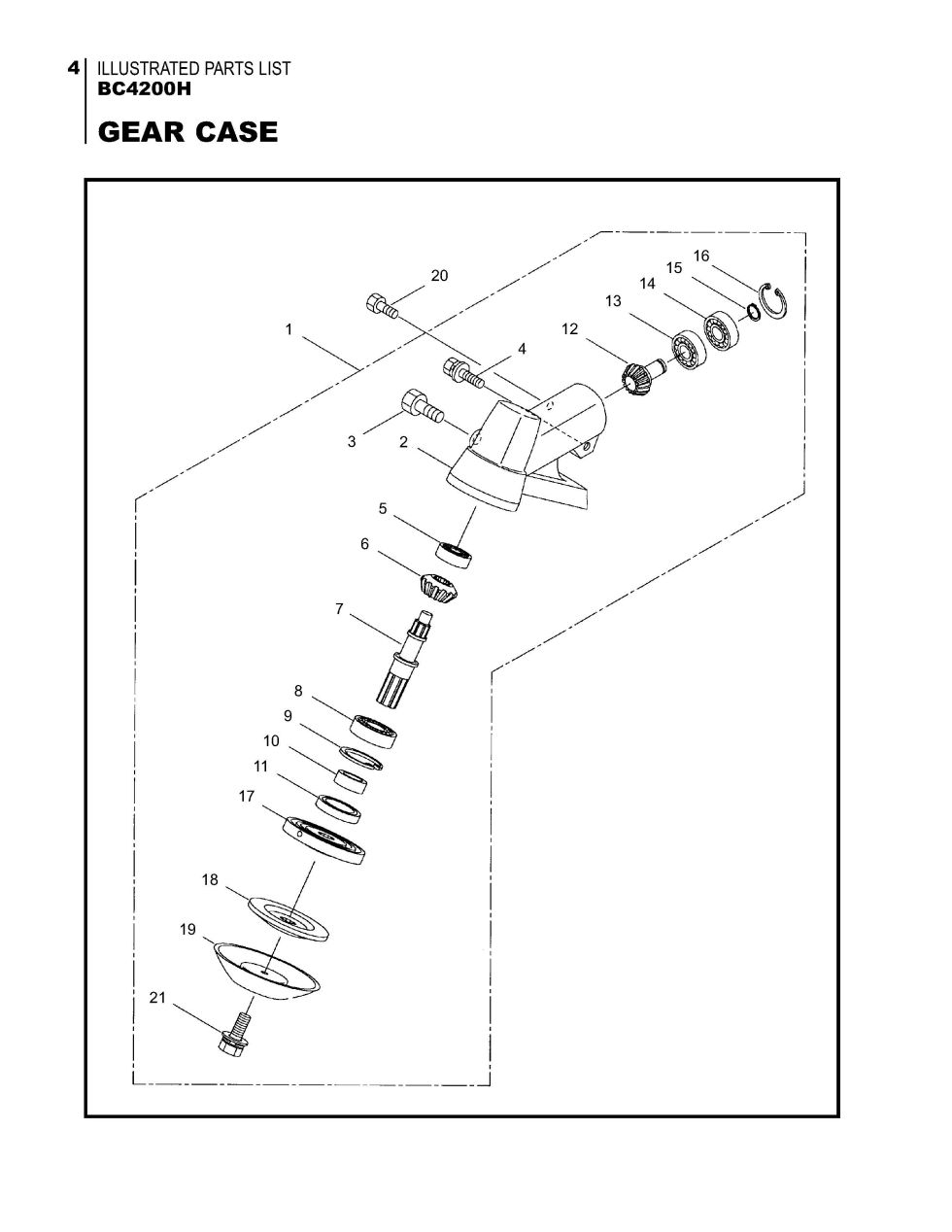

Gearcase

Position number SKU Product title Price
1 217088 217088 - GEAR CASE
$202.99
2 217089 217089 - GEAR CASE
$90.99
3 089884 089884 - BOLT(M8X10)
$2.99
4 092556 092556 - BOLT(M6X30)
$2.99
5 210560 210560 - BEARING
$10.99
6 211698 211698 - NS GEAR (obsolete)
use part #227102
$48.99
7 217057 217057 - BLADE SHAFT
$23.99
8 022009 022009 - BEARING
$19.99
9 016732 016732 - C SHAPED SNAP RING 3
$2.99
10 212394 212394 - COLLAR
$7.99
11 211818 211818 - OIL SEAL
$10.99
12 211695 211695 - NS PINION GEAR (obsolete)
use part #227102
$48.99
13 014490 014490 - BEARING
$18.99
15 014210 014210 - C-SHAPED SNAP RING 1
$2.99
16 054676 054676 - SNAP RING
$2.99
17 217060 217060 - BOSS ADAPTER
$32.99
18 217061 217061 - CLAMPING
$34.99
19 902311 902311 - STABILIZER
$20.99
20 089747 089747 - BOLT(M6X12)
$2.99
21 215610 215610 - BOLT
$5.99
