Main Body

Main Body

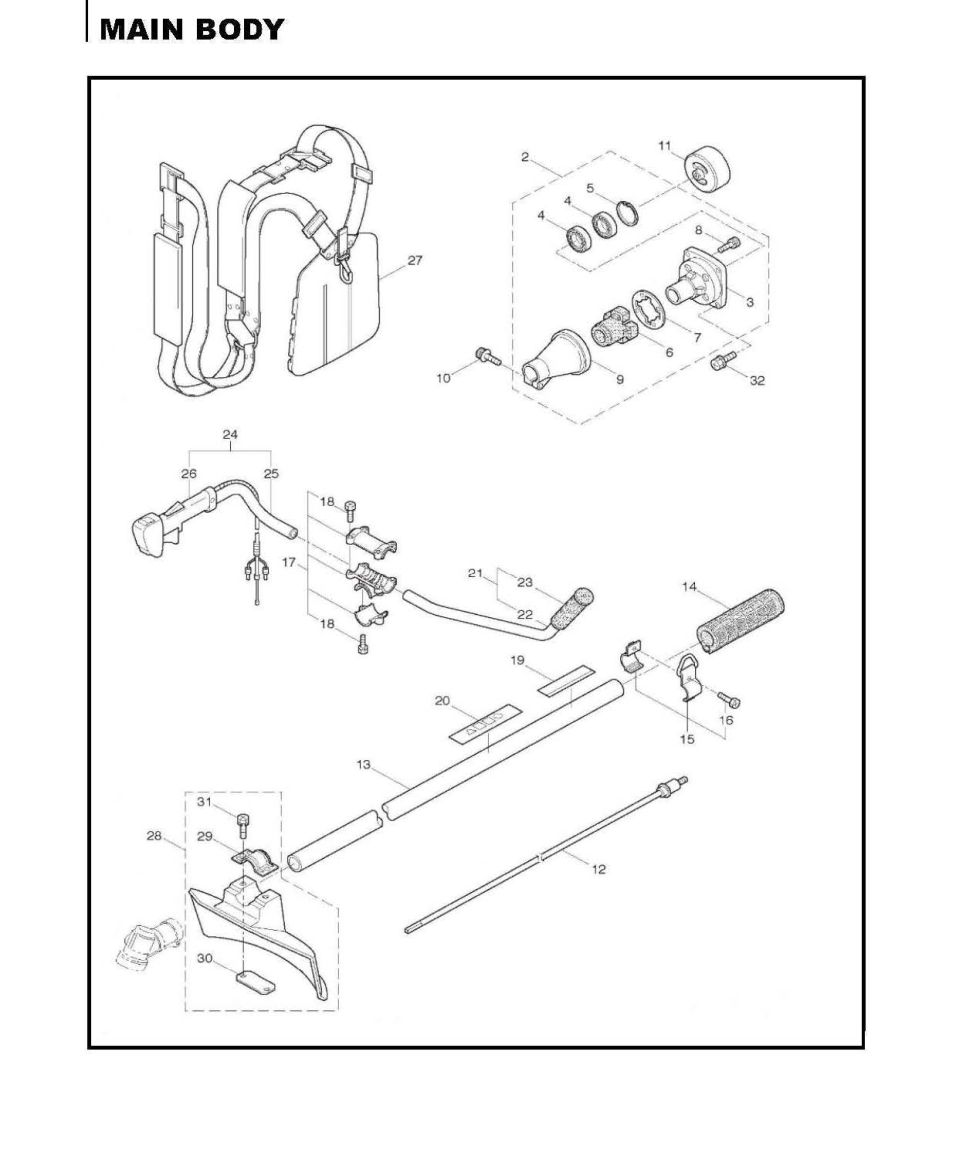

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BC3021H. You have selected the Main Body diagram for the Maruyama BC3021H Trimmers and Brushcutters. Below you will find an interactive part diagram for the BC3021H Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BC3021H parts not shown in this diagram you may select from one of the other BC3021H part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
2 215512 215512 - CLUTCH CASE ASSY
$150.99
3 214592 214592 - BEARING CASE
$39.99
4 214161 214161 - USE: 102680
$13.99
5 054676 054676 - SNAP RING
$2.99
6 214162 214162 - BUFFER
$28.99
7 214163 214163 - WASHER
$11.99
8 092033 092033 - SCREW(M5X15)
$2.99
9 214593 214593 - DRIVESHAFT TUBE ADAP
$41.99
10 092561 092561 - BOLT
$2.99
11 054677 054677 - CLUTCH DRUM
$32.99
12 219268 219268 - DRIVESHAFT ASSY
$52.99
13 218711 218711 - DRIVESHAFT HOUSING
$74.99
14 215532 215532 - SHAFT GRIP
$24.99
15 054691 054691 - HANGING BRACKET ASSY
$13.99
16 089738 089738 - BOLT
$2.99
17 228446 228446 - HANDLE BRACKET ASSY
$29.99
20 213750 213750 - STICKER
$7.99
21 228398 228398 - HANDLE ASSY - LEFT
$48.99
22 228399 228399 - Handle (A)
$26.99
23 226512 226512 - Grip
$14.99
24 228688 228688 - HANDLE B ASSY
$124.99
25 228401 228401 - HANDLE
$24.99
26 228689 228689 - USE: 229017
$90.99
27 219612 219612 - SHOULDER BAND ASSY
$118.99
28 224076 224076 - SAFETY COVER ASSY
$24.99
29 210413 210413 - USE: 210312
$2.99
30 210313 210313 - SAFETY COVER BRACKET
$6.99
31 092555 092555 - BOLT(M6X30)
$2.99
32 817002 817002 - BOLT
$2.99
