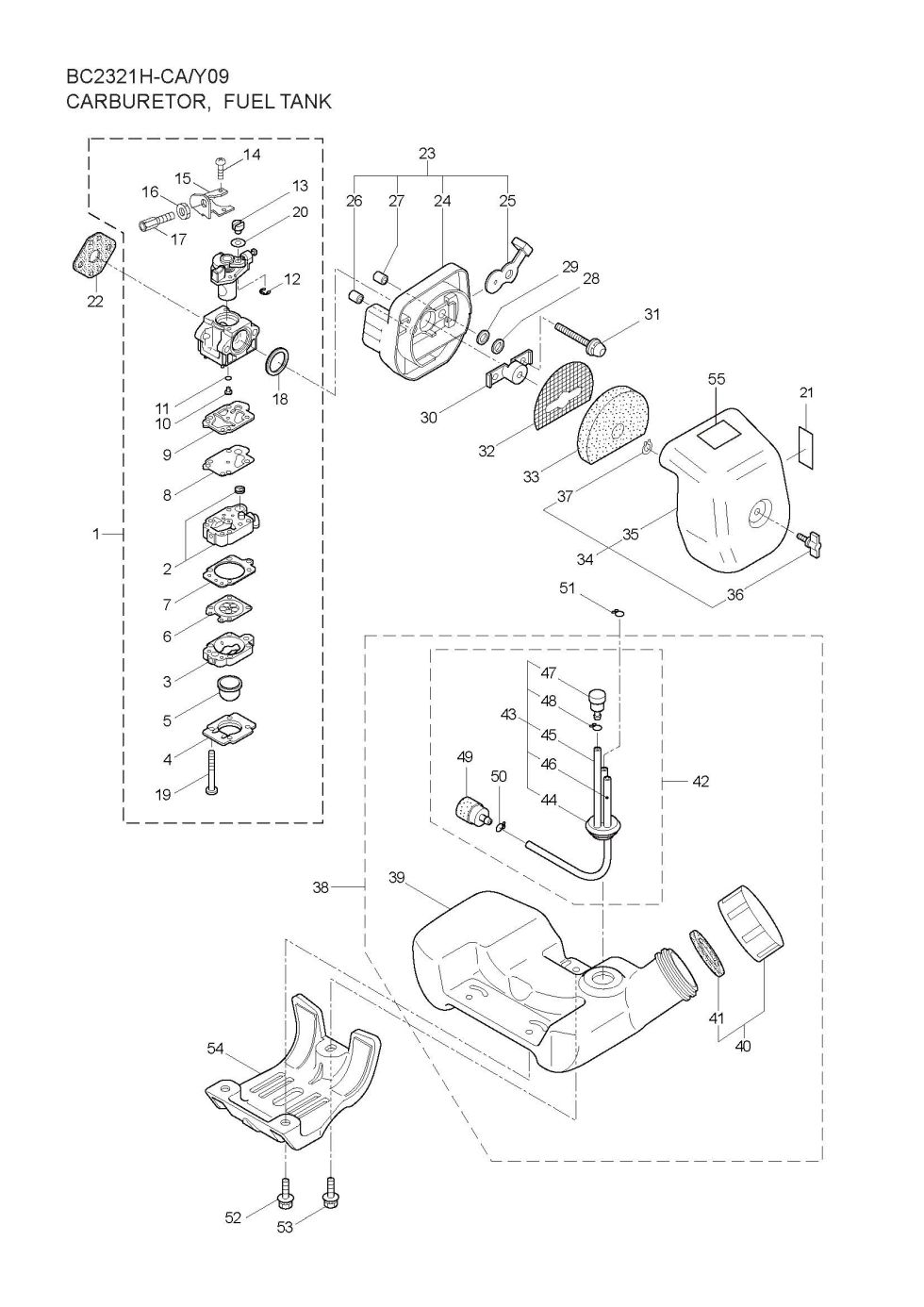

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BC2321H-CA. You have selected the Carburetor, Fuel Tank diagram for the Maruyama BC2321H-CA Trimmers and Brushcutters. Below you will find an interactive part diagram for the BC2321H-CA Carburetor, Fuel Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BC2321H-CA parts not shown in this diagram you may select from one of the other BC2321H-CA part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
1 282331 282331 - CARBURETOR ASSY
$85.56
2 264155 264155 - PUMP BODY
$65.14
3 262991 262991 - PURGE BODY
$13.44
4 262992 262992 - COVER PLATE
$9.92
5 261874 261874 - PRIMER
$4.42
6 283905 283905 - METERRING DIAPHRAGM
$18.01
7 262993 262993 - GASKET
$7.65
8 262994 262994 - DIAPHRAGM FUEL PUMP
$13.71
9 282576 282576 - GASKET
$5.14
10 268574 268574 - MAIN JET #38
$6.75
11 261871 261871 - O-RING
$2.99
12 261876 261876 - E-RING
$2.99
13 261658 261658 - SWIVEL
$4.11
14 261875 261875 - SCREW
$2.99
15 264677 264677 - BRACKET
$6.27
16 261878 261878 - NUT
$2.99
17 263994 263994 - ADJUSTER
$9.62
18 261657 261657 - PACKING
$5.40
19 262996 262996 - SCREW
$2.99
20 264678 264678 - WASHER
$2.99
21 261352 261352 - DECAL
$2.99
22 261864 261864 - GASKET
$2.99
23 268055 268055 - AIR FILTER CASE ASSY
$12.96
24 268056 268056 - AIR FILTER CASE
$6.84
25 268057 268057 - VALVE
$6.42
26 268157 268157 - SLEEVE
$2.99
27 268412 268412 - SLEEVE
$2.99
28 263345 263345 - PACKING
$2.99
29 263942 263942 - WASHER
$2.99
30 263815 263815 - STAY
$4.68
31 264016 264016 - CAP SCREW M5X60
$2.99
32 265026 265026 - SCREEN
$2.99
33 265027 265027 - FOAM ELEMENT
$2.99
34 268058 268058 - AIR FILTER COVER ASSY
$15.56
35 268059 268059 - AIR FILTER COVER
$7.14
36 281438 281438 - KNOB
$4.20
37 261734 261734 - SNAP RING
$2.99
38 285690 285690 - FUEL TANK ASSY
$33.52
39 285048 285048 - FUEL TANK
$24.44
40 281565 281565 - FUEL CAP ASSY
$4.44
41 269377 269377 - GASKET
$2.99
42 282334 282334 - FUEL PIPE ASSY
$20.98
43 282335 282335 - FUEL PIPE ASSY
$19.14
44 268065 268065 - GROMMET
$5.04
45 282337 282337 - RETURN PIPE
$8.72
46 282501 282501 - FUEL PIPE
$2.99
47 261590 261590 - BREATHER SUB ASSY
$9.46
48 261117 261117 - CLIP
$2.99
49 264653 264653 - FUEL FILTER ASSY
$6.50
52 281714 281714 - SCREW
$2.99
53 281715 281715 - CAP SCREW
$2.99
54 281447 281447 - STAND
$5.64
55 285188 285188 - LABEL
$2.99
