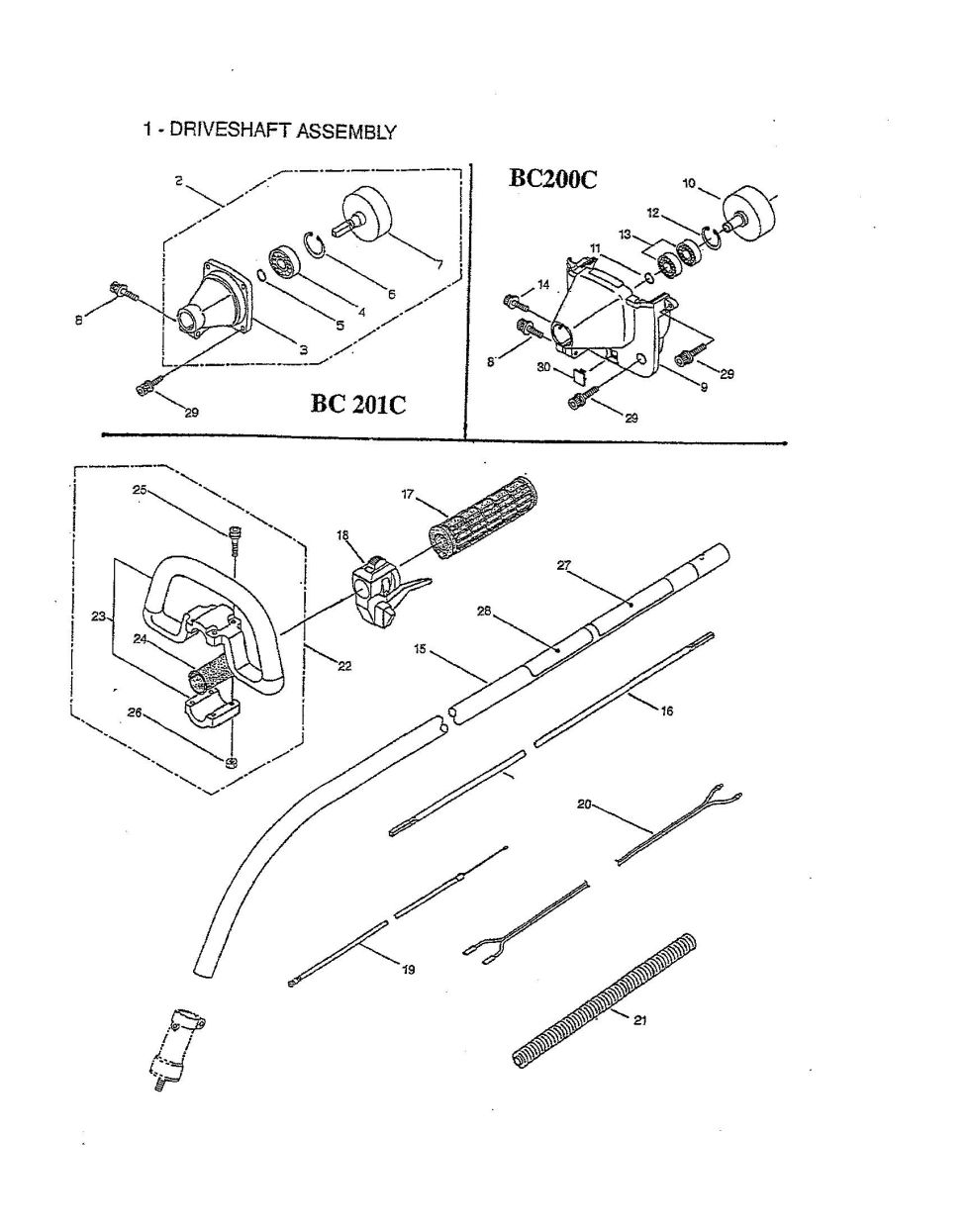

Driveshaft

Position number SKU Product title Price
2 218751 218751 - NLA CLUTCH CASE ASSY
$101.99
3 218698 218698 - CLUTCH DRUM ASSY
$54.99
4 012649 012649 - BEARING
$19.99
5 140273 140273 - SNAP RING
$2.99
6 016732 016732 - C SHAPED SNAP RING 3
$2.99
7 218492 218492 - CLUTCH DRUM
$30.99
8 261246 261246 - CAP SCREW M5X25
$2.99
9 262406 262406 - NLA CLUTCH DRUM CASE
$66.99
10 262407 262407 - NLA CLUTCH DRUM
$25.99
11 014210 014210 - C-SHAPED SNAP RING 1
$2.99
12 054676 054676 - SNAP RING
$2.99
13 261743 261743 - USE: 102680
$21.99
14 261233 261233 - SCREW
$2.99
15A 218748 218748 - NLA DRIVESHAFT TUBE
$42.99
15B 215982 215982 - NLA DRIVESHAFT T
$76.99
16A 218750 218750 - USE: 215985
$19.99
16B 215985 215985 - INNER SHAFT
$68.99
17 215995 215995 - GRIP
$22.99
18 216060 216060 - NLA THROTTLE LEVER
$41.99
19A 213444 213444 - THROTTLE CABLE
$13.99
20A 213548 213548 - PLASTIC TUBE
$2.99
20B 215932 215932 - NLA LEAD WIRE
$12.99
21B 215403 215403 - PLASTIC TUBE
$2.99
22 216003 216003 - NLA LOOP HANDLE ASSY
$36.99
23 214982 214982 - HANDLE ASSY
$28.99
24 216004 216004 - PACKING
$10.99
25 215608 215608 - CAP SCREW
$2.99
26 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
27B 216194 216194 - NLA LABEL
$9.99
27 218752 218752 - NAME PLATE
$23.99
28 215534 215534 - DECAL
$2.99
30 261786 261786 - NLA GROMMET
$2.99
