 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

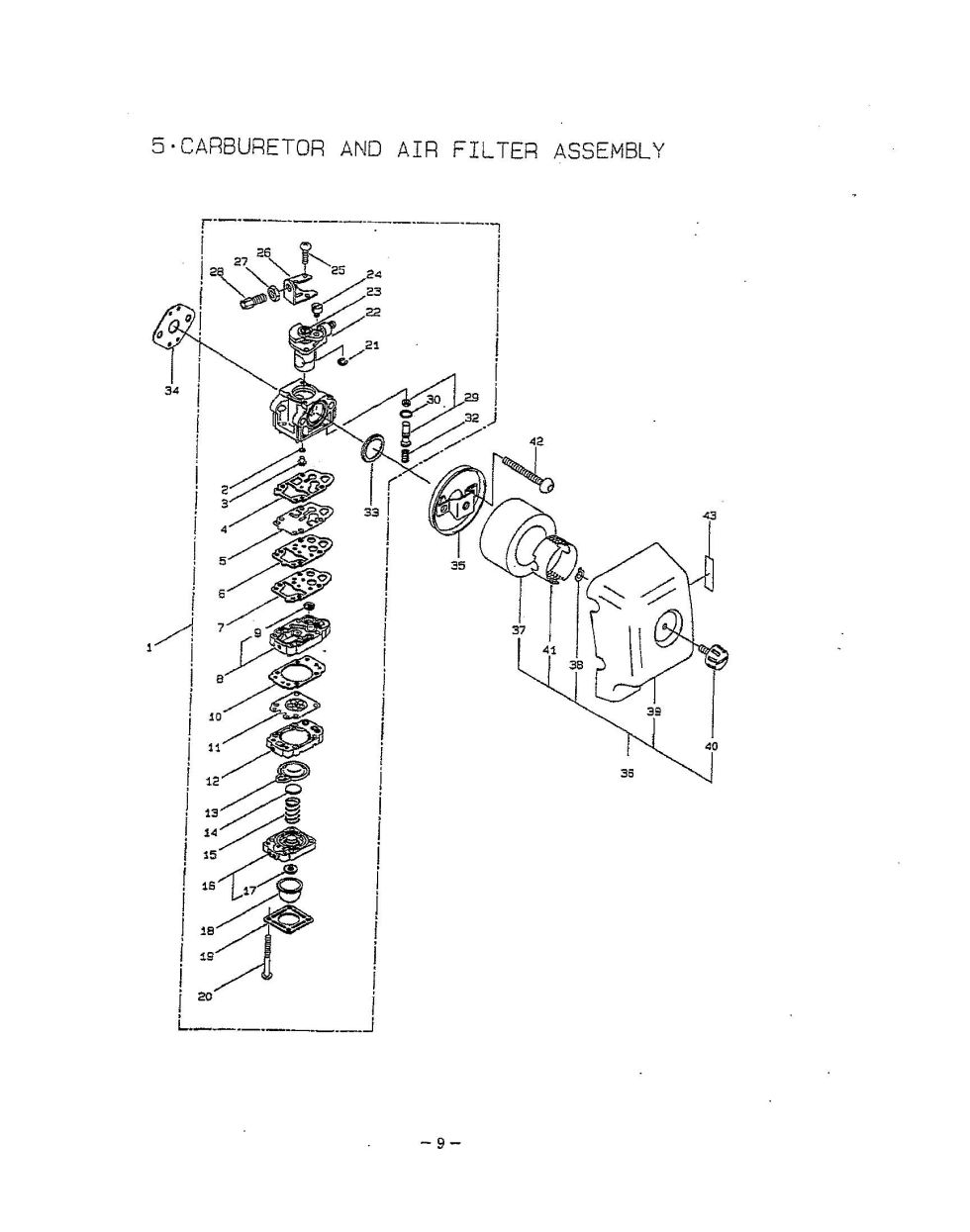

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 261871 | 261871 - O-RING |
$2.99
|
|
| 3A | 262121 | 262121 - MAIN JET(#41) |
$11.99
|
|
| 3B | 261636 | 261636 - NLA JET |
$10.99
|
|
| 4 | 261637 | 261637 - GASKET |
$11.99
|
|
| 5 | 261638 | 261638 - NLA DIAPHRAGM |
$10.99
|
|
| 6 | 261639 | 261639 - NLA PLATE |
$8.99
|
|
| 7 | 261640 | 261640 - NLA GASKET |
$10.99
|
|
| 8A | 263290 | 263290 - PUMP BODY |
$86.99
|
|
| 8B | 261641 | 261641 - NLA PUMP BODY |
$28.99
|
|
| 9 | 261872 | 261872 - SCREEN |
$2.99
|
|
| 10 | 261642 | 261642 - GASKET |
$2.99
|
|
| 11 | 261873 | 261873 - DIAPHRAGM ASSY |
$17.99
|
|
| 12A | 262496 | 262496 - DIAPHRAGM BODY |
$23.99
|
|
| 12B | 261643 | 261643 - NLA DIAPHRAGM BODY |
$27.99
|
|
| 13 | 261644 | 261644 - DIAPHRAGM |
$14.99
|
|
| 14 | 261650 | 261650 - HOLDER |
$9.99
|
|
| 15 | 261649 | 261649 - SPRING |
$5.99
|
|
| 16 | 261645 | 261645 - PURGE BODY |
$27.99
|
|
| 17 | 261646 | 261646 - MACHINED DISC |
$6.99
|
|
| 18 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 19 | 261647 | 261647 - PUMP COVER |
$9.99
|
|
| 20A | 261651 | 261651 - NLA THROTTLE VALVE |
$30.99
|
|
| 20B | 261648 | 261648 - NLA SCREW |
$8.99
|
|
| 21 | 261876 | 261876 - E-RING |
$2.99
|
|
| 23 | 261652 | 261652 - PLUG |
$2.99
|
|
| 24 | 261658 | 261658 - SWIVEL |
$18.99
|
|
| 25 | 261875 | 261875 - SCREW |
$2.99
|
|
| 26 | 261659 | 261659 - BRACKET |
$11.99
|
|
| 27 | 261878 | 261878 - NUT |
$2.99
|
|
| 28 | 261877 | 261877 - ADJUSTER |
$6.99
|
|
| 29 | 261653 | 261653 - INJECTION BUTTON |
$16.99
|
|
| 32 | 261656 | 261656 - SPRING |
$7.99
|
|
| 33 | 261657 | 261657 - PACKING |
$10.99
|
|
| 34 | 261864 | 261864 - GASKET |
$2.99
|
|
| 35 | 261090 | 261090 - AIR FILTER PLATE |
$20.99
|
|
| 36 | 262481 | 262481 - NLA AIR CLEANER ASSY |
$29.99
|
|
| 37 | 261598 | 261598 - ELEMENT |
$7.99
|
|
| 38 | 261734 | 261734 - SNAP RING |
$2.99
|
|
| 39 | 261914 | 261914 - NLA CLEANER CASE |
$13.99
|
|
| 40 | 261018 | 261018 - KNOB |
$7.99
|
|
| 41 | 261993 | 261993 - SCREEN |
$8.99
|
|
| 42 | 261814 | 261814 - BOLT |
$2.99
|
|
| 43 | 261803 | 261803 - NLA LABEL |
$6.99
|
