Main Body

Main Body

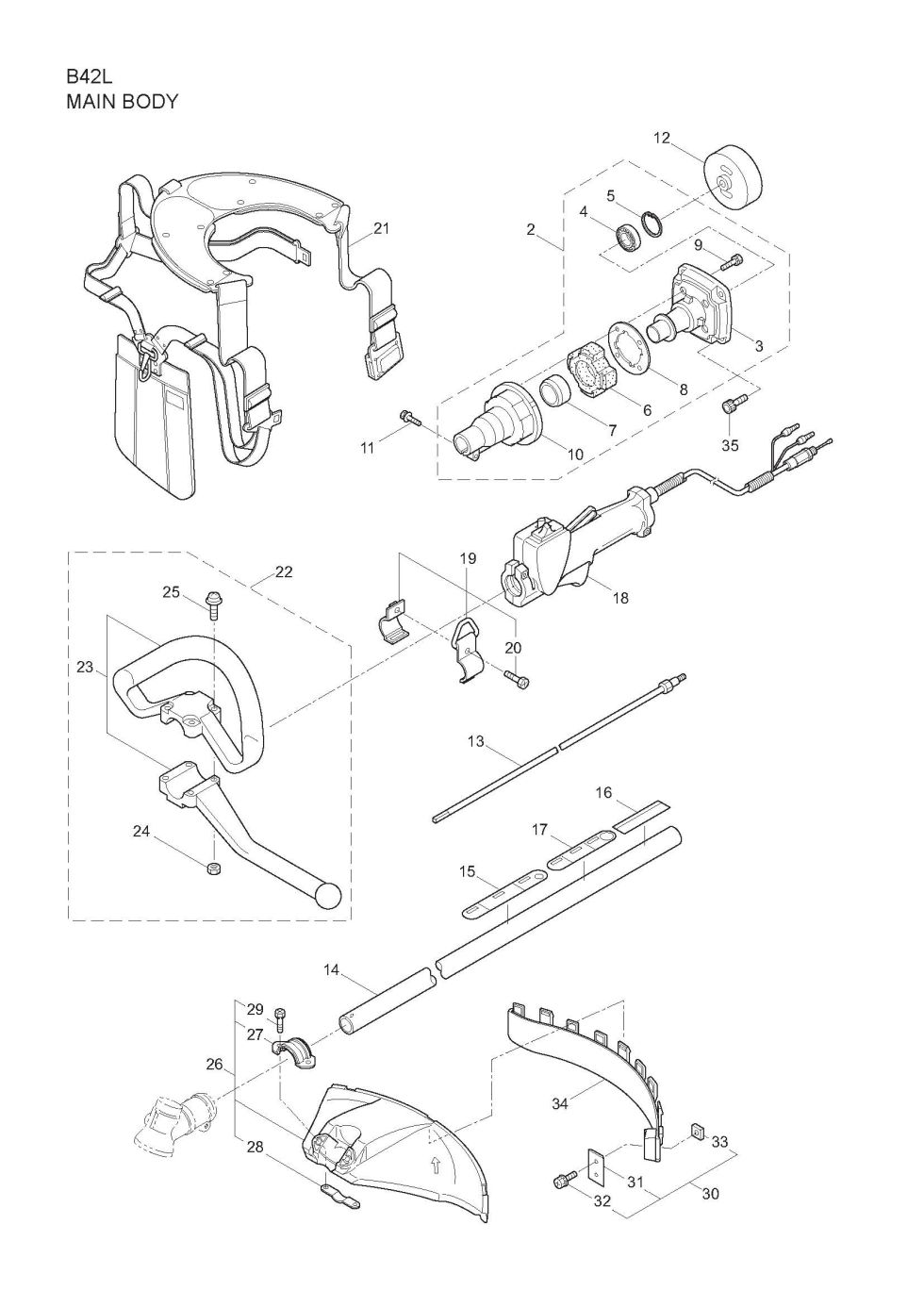

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your B42L. You have selected the Main Body diagram for the Maruyama B42L Trimmers and Brushcutters. Below you will find an interactive part diagram for the B42L Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the B42L parts not shown in this diagram you may select from one of the other B42L part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
2 222543 222543 - CLUTCH CASE ASS'Y
$90.99
3 222544 222544 - Bearing Case
$36.99
4 012649 012649 - BEARING
$19.99
5 016732 016732 - C SHAPED SNAP RING 3
$2.99
6 217045 217045 - BUFFER (A)
$17.99
7 217046 217046 - BUFFER (B)
$10.99
8 217047 217047 - WASHER
$8.99
9 092033 092033 - SCREW(M5X15)
$2.99
10 222370 222370 - Driveshaft Tube Adap
$40.99
11 092556 092556 - BOLT(M6X30)
$2.99
12 222546 222546 - CLUTCH DRUM
$26.99
13 222522 222522 - DRIVESHAFT ASS'Y
$27.99
14 220800 220800 - DRIVESHAFT TUBE
$77.99
15 221502 221502 - LABEL
$14.99
16 231951 231951 - USE: 232516
$30.99
17 221501 221501 - LABEL
$9.99
18 229002 229002 - THROTTLE TRIGGER
$56.99
19 210449 210449 - HANGING BRACKET ASSY
$14.99
20 089738 089738 - BOLT
$2.99
21 998384 998384 - USE: 234345
$48.99
22 226461 226461 - LOOP HANDLE ASSY
$39.99
23 226462 226462 - LOOP HANDLE
$36.99
24 081027 081027 - NUT M5
$2.99
25 222142 222142 - SCREW M5X28
$2.99
26 228303 228303 - SAFETY COVER ASSY
$29.99
27 223179 223179 - Bracket
$2.99
28 223180 223180 - Threaded Bracket
$6.99
29 092555 092555 - BOLT(M6X30)
$2.99
30 230789 230789 - LINE CUTTER ASSY
$12.99
31 230747 230747 - String Cutter
$8.99
32 817002 817002 - BOLT
$2.99
33 228325 228325 - Nut
$2.99
34 230748 230748 - EXTENSION
$14.99
35 219113 219113 - CAP SCREW(M6X20)
$6.99
