 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

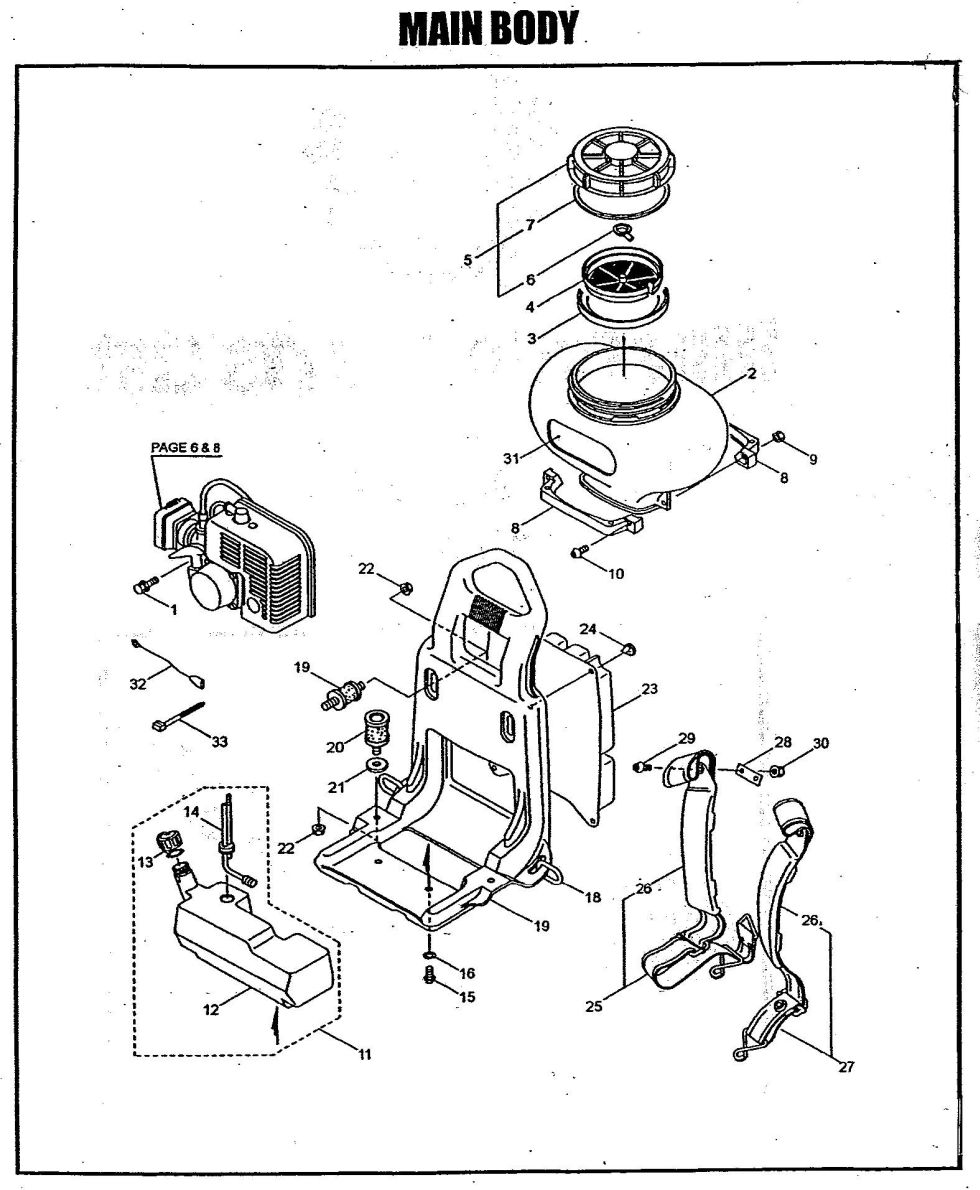

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 092543 | 092543 - BOLT |
$2.99
|
|
| 2.5 | 101387 | 101387 - MIST ATTACHMENT ASSY-WET-TANK |
$105.99
|
|
| 2 | 120638 | 120638 - CHEMICAL TANK-DRY |
$55.99
|
|
| 3 | 101834 | 101834 - COVER |
$12.99
|
|
| 4 | 022410 | 022410 - STRAINER |
$20.99
|
|
| 5 | 092206 | 092206 - CHEMICAL TANK LID |
$29.99
|
|
| 6 | 101915 | 101915 - INNER CAP |
$2.99
|
|
| 7 | 103194 |
103194 - USE: 100678 (obsolete) use part #100678 |
$17.99
|
|
| 8 | 112189 | 112189 - BRACKET |
$24.99
|
|
| 9 | 081241 | 081241 - NUT |
$2.99
|
|
| 10 | 088345 | 088345 - SCREW |
$2.99
|
|
| 11 | 119388 | 119388 - FUEL TANK ASSY |
$61.99
|
|
| 12 | 120154 |
120154 - FUEL TANK (obsolete) use part #127673 |
$31.99
|
|
| 13 | 119390 | 119390 - FUEL CAP ASSY |
$26.99
|
|
| 14 | 119391 | 119391 - FUEL FILTER |
$39.99
|
|
| 15 | 081414 | 081414 - SCREW |
$2.99
|
|
| 16 | 015479 | 015479 - WASHER |
$2.99
|
|
| 18 | 101353 | 101353 - RING |
$2.99
|
|
| 19 | 026223 | 026223 - BUFFER |
$17.99
|
|
| 20 | 114454 | 114454 - USE: 120615 |
$11.99
|
|
| 21 | 114185 | 114185 - SPACER |
$2.99
|
|
| 22 | 109704 | 109704 - USE: 127228 |
$2.99
|
|
| 23 | 119177 | 119177 - PAD |
$31.99
|
|
| 24 | 840543 | 840543 - NLA PAD RETAINER |
$2.99
|
|
| 26 | 114818 | 114818 - CUSHION PAD |
$9.99
|
|
| 27 | 114816 | 114816 - KNAP SACK BAND - R |
$32.99
|
|
| 30 | 550132 | 550132 - USE: 127237 |
$2.99
|
|
| 31 | 120710 | 120710 - LABEL |
$9.99
|
|
| 32 | 108634 | 108634 - GROUND CABLE |
$6.99
|
|
| 33 | 108954 | 108954 - CLAMP |
$2.99
|
