 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

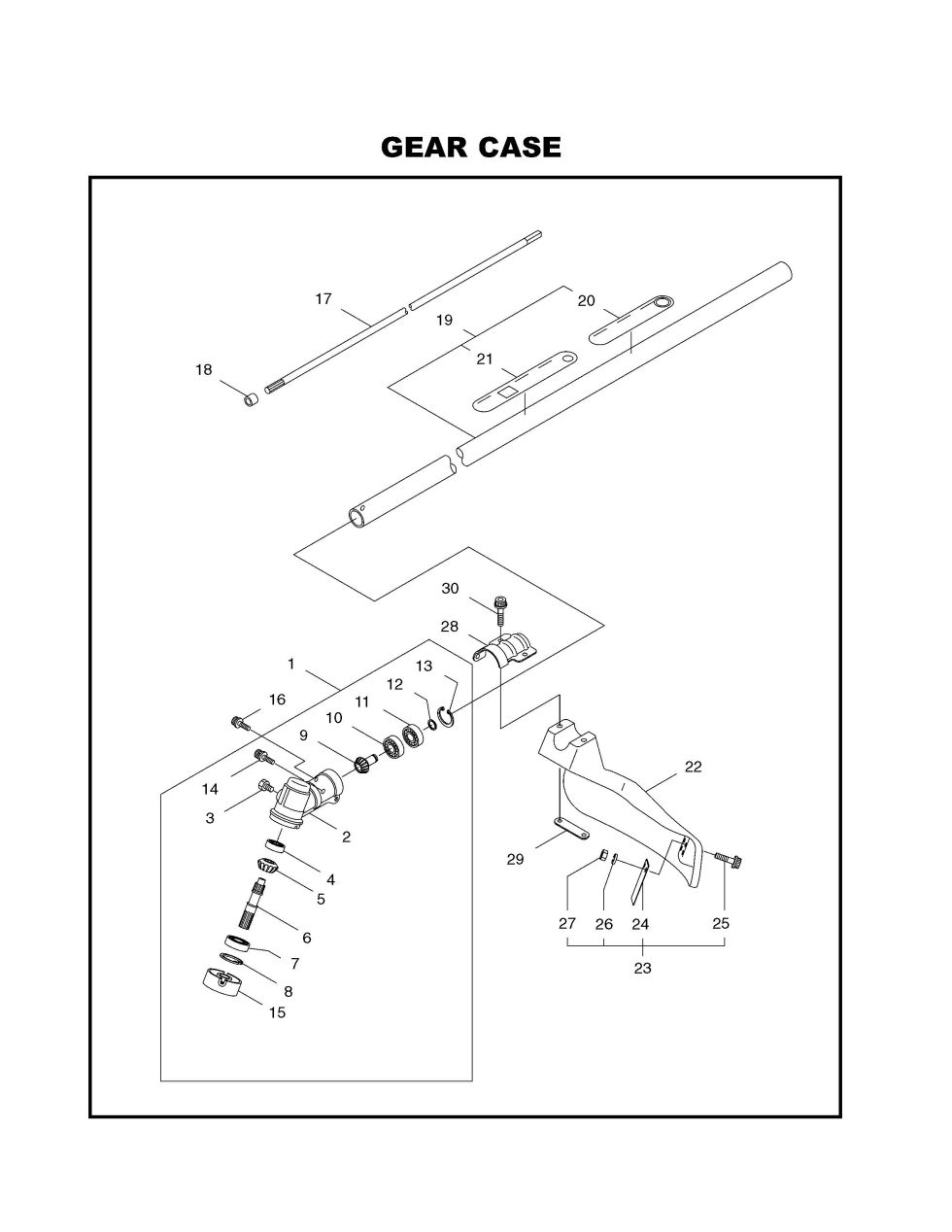

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 225959 | 225959 - GEARCASE ASSY. |
$154.99
|
|
| 2 | 225960 | 225960 - GEARCASE |
$37.99
|
|
| 3 | 089884 | 089884 - BOLT(M8X10) |
$2.99
|
|
| 4 | 210554 | 210554 - BEARING |
$9.99
|
|
| 5 | 225806 | 225806 - USE: 227106 |
$23.99
|
|
| 6 | 215762 | 215762 - BLADE SHAFT |
$46.99
|
|
| 7 | 212999 | 212999 - BEARING |
$21.99
|
|
| 8 | 055185 | 055185 - SNAP RING |
$2.99
|
|
| 9 | 225808 | 225808 - USE: 227106 |
$24.99
|
|
| 10 | 210560 | 210560 - BEARING |
$10.99
|
|
| 11 | 217042 | 217042 - USE: 140268 |
$19.99
|
|
| 12 | 140269 | 140269 - USE: 228477 |
$2.99
|
|
| 13 | 140270 | 140270 - SNAP RING |
$2.99
|
|
| 14 | 261246 | 261246 - CAP SCREW M5X25 |
$2.99
|
|
| 15 | 222890 | 222890 - BOSS ADAPTER |
$12.99
|
|
| 16 | 261233 | 261233 - SCREW |
$2.99
|
|
| 17 | 216090 | 216090 - DRIVESHAFT |
$37.99
|
|
| 18 | 216079 | 216079 - STOPPER |
$8.99
|
|
| 19 | 220086 | 220086 - DRIVESHAFT TUBE ASSY |
$72.99
|
|
| 20 | 221501 | 221501 - LABEL |
$9.99
|
|
| 21 | 221502 | 221502 - LABEL |
$14.99
|
|
| 22 | 225961 | 225961 - SAFETY COVER |
$27.99
|
|
| 23 | 226062 | 226062 - STRING CUTTER ASSY |
$11.99
|
|
| 24 | 222900 |
222900 - NLA STRING CUTTER (obsolete) use part #231493 |
$9.99
|
|
| 26 | 089901 | 089901 - WASHER |
$2.99
|
|
| 27 | 089846 |
089846 - NUT M5 (obsolete) use part #081027 |
$2.99
|
|
| 28 | 225962 | 225962 - BRACKET |
$7.99
|
|
| 29 | 225963 | 225963 - THREADED BRACKET |
$2.99
|
|
| 30 | 261612 | 261612 - BOLT |
$2.99
|
