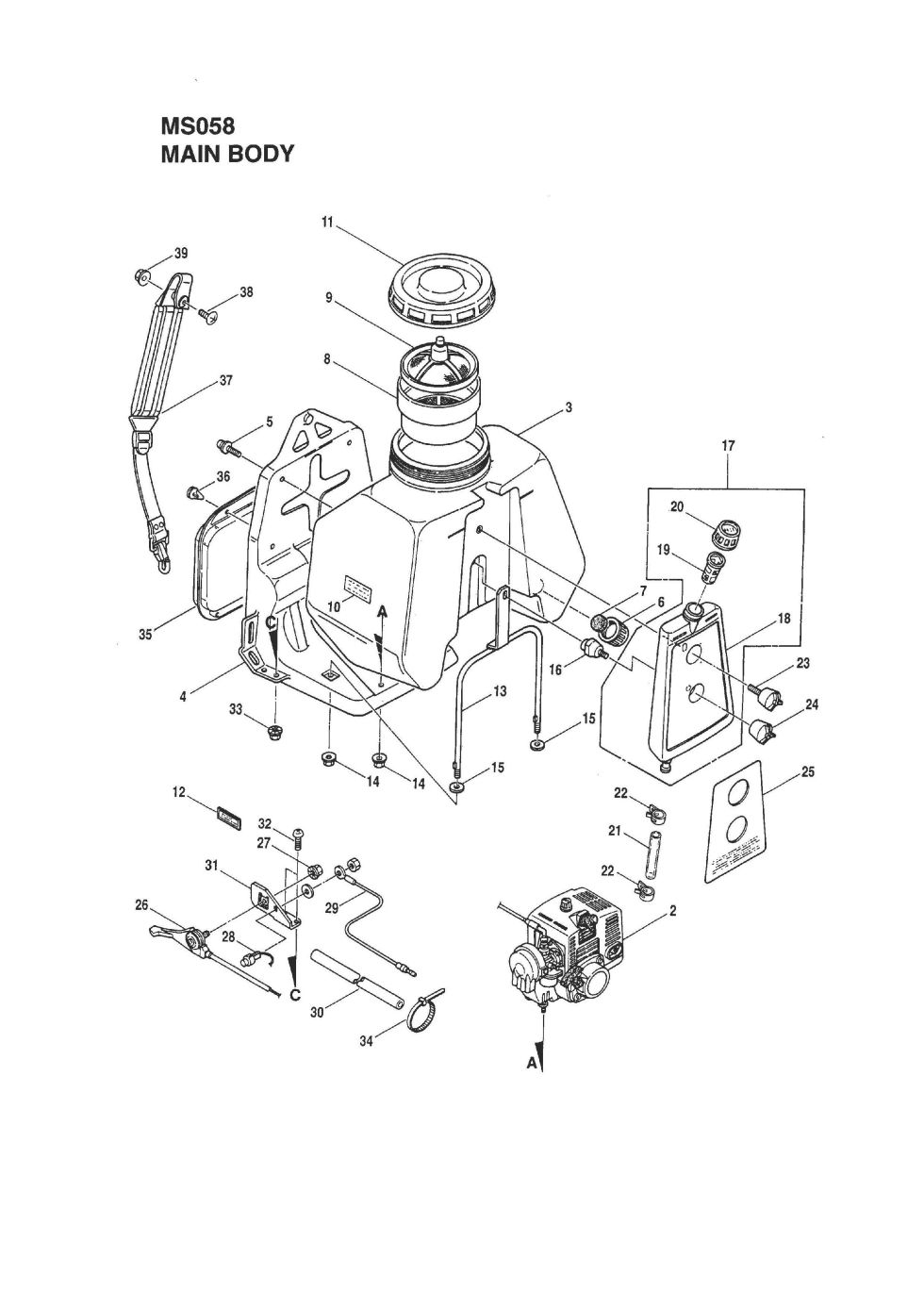

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS058. You have selected the Main Body diagram for the Maruyama MS058 Engine Driven Sprayers. Below you will find an interactive part diagram for the MS058 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS058 parts not shown in this diagram you may select from one of the other MS058 part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
3 103147 103147 - NLA CHEMICAL TANK
$75.99
4 115747 115747 - NLA BACKPACK FRAME
$67.99
5 816015 816015 - USE: 127238
$2.99
6 106333 106333 - CAP
$90.99
7 029299 029299 - BLIND PACKING
$2.99
8 106330 106330 - STRAINER
$21.99
9 102623 102623 - NLA UPPER STRAINER
$16.99
10 105982 105982 - LABEL (FREEZE INST)
$2.99
11 106331 106331 - CHEMICAL TANK CAP AS
$27.99
12 106067 106067 - LABEL (SPEED-CAUTION
$2.99
13 103150 103150 - STAY
$26.99
14 109704 109704 - USE: 127228
$2.99
16 103151 103151 - NLA SCREW COLLAR
$5.99
17 120538 120538 - FUEL TANK ASSY
$22.99
18 120539 120539 - FUEL TANK
$20.99
19 106920 106920 - FUEL STRAINER
$5.99
21 266056 266056 - HOSE
$6.99
22 103067 103067 - NLA HOSE BAND
$2.99
23 105938 105938 - FITTING BOLT
$2.99
24 103379 103379 - TANK FITTING SCREW
$6.99
25 120540 120540 - LABEL
$8.99
26 115148 115148 - THROTTLE LEVER
$17.99
27 103549 103549 - NLA FLANGE NUT
$2.99
28 114895 114895 - STOP BUTTON
$23.99
29 114896 114896 - GROUND WIRE
$6.99
30 114901 114901 - VINYL HOSE
$2.99
31 114881 114881 - BRACKET
$12.99
32 081415 081415 - SCREW M5X.8X16
$2.99
34 105337 105337 - BAND
$2.99
35 115748 115748 - NLA CUSHION PAD - RE
$33.99
36 100749 100749 - PAD RETAINER
$2.99
37 116688 116688 - NLA KNAPSACK BAN
$21.99
39 550132 550132 - USE: 127237
$2.99
