 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

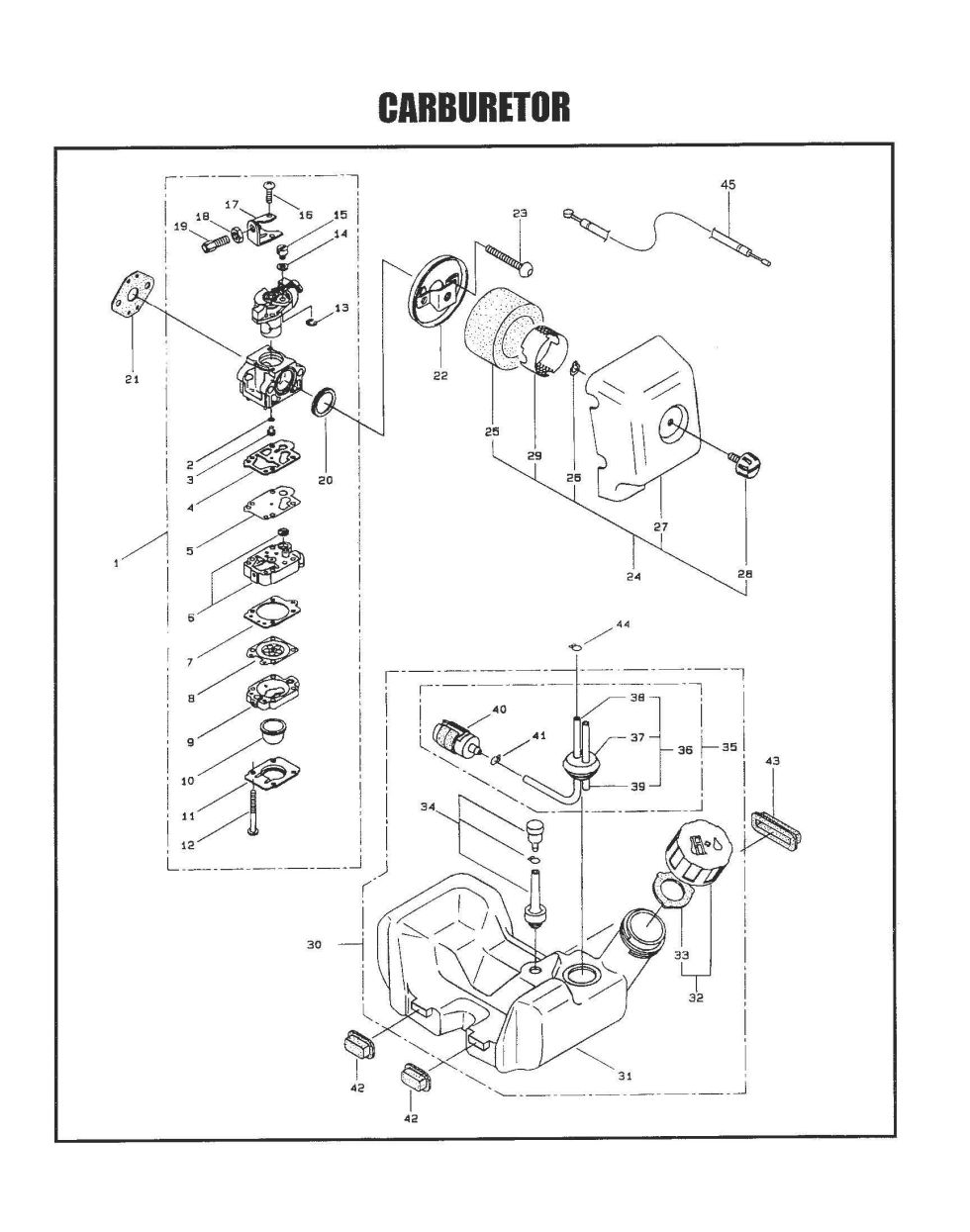

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 266598 | 266598 - CARBURETOR ASSY |
$85.99
|
|
| 2 | 261871 | 261871 - O-RING |
$2.99
|
|
| 3 | 266175 | 266175 - MAIN JET #40.5 |
$9.99
|
|
| 4 | 262995 | 262995 - GASKET |
$13.99
|
|
| 6 | 263739 | 263739 - PUMP BODY |
$49.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 261873 | 261873 - DIAPHRAGM ASSY |
$17.99
|
|
| 9 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 10 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 11 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 12 | 262996 | 262996 - SCREW |
$2.99
|
|
| 13 | 261876 | 261876 - E-RING |
$2.99
|
|
| 14 | 264678 | 264678 - WASHER |
$2.99
|
|
| 15 | 261658 | 261658 - SWIVEL |
$18.99
|
|
| 16 | 261875 | 261875 - SCREW |
$2.99
|
|
| 17 | 264677 | 264677 - BRACKET |
$20.99
|
|
| 18 | 261878 | 261878 - NUT |
$2.99
|
|
| 19 | 263994 | 263994 - ADJUSTER |
$16.99
|
|
| 20 | 261657 | 261657 - PACKING |
$10.99
|
|
| 21 | 261864 | 261864 - GASKET |
$2.99
|
|
| 22 | 261090 | 261090 - AIR FILTER PLATE |
$20.99
|
|
| 23 | 262720 | 262720 - BOLT |
$2.99
|
|
| 25 | 261598 | 261598 - ELEMENT |
$7.99
|
|
| 26 | 261734 | 261734 - SNAP RING |
$2.99
|
|
| 27 | 266785 | 266785 - CLEANER CASE |
$23.99
|
|
| 28 | 263129 | 263129 - KNOB |
$6.99
|
|
| 29 | 261993 | 261993 - SCREEN |
$8.99
|
|
| 30 | 266745 | 266745 - USE: 266128 |
$48.99
|
|
| 31 | 264750 | 264750 - FUEL TANK |
$38.99
|
|
| 32 | 264784 | 264784 - USE: 261584 |
$15.99
|
|
| 33 | 261105 | 261105 - PACKING |
$2.99
|
|
| 34 | 261696 | 261696 - BREATHER ASSY |
$8.99
|
|
| 35 | 266954 | 266954 - NLA FUEL PIPE ASSY. |
$23.99
|
|
| 36 | 266955 | 266955 - FUEL PIPE ASSY. |
$17.99
|
|
| 37 | 261115 |
261115 - USE: 266955 (obsolete) use part #266955 |
$17.99
|
|
| 38 | 265469 | 265469 - FUEL PIPE |
$2.99
|
|
| 39 | 263038 | 263038 - RETURN PIPE |
$2.99
|
|
| 40 | 261797 | 261797 - NLA FUEL FILTER ASSY |
$12.99
|
|
| 41 | 261117 | 261117 - CLIP |
$2.99
|
|
| 42 | 261118 | 261118 - PAD |
$2.99
|
|
| 43 | 261119 | 261119 - PAD |
$2.99
|
|
| 45 | 265552 | 265552 - THROTTLE CABLE |
$17.99
|
