 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

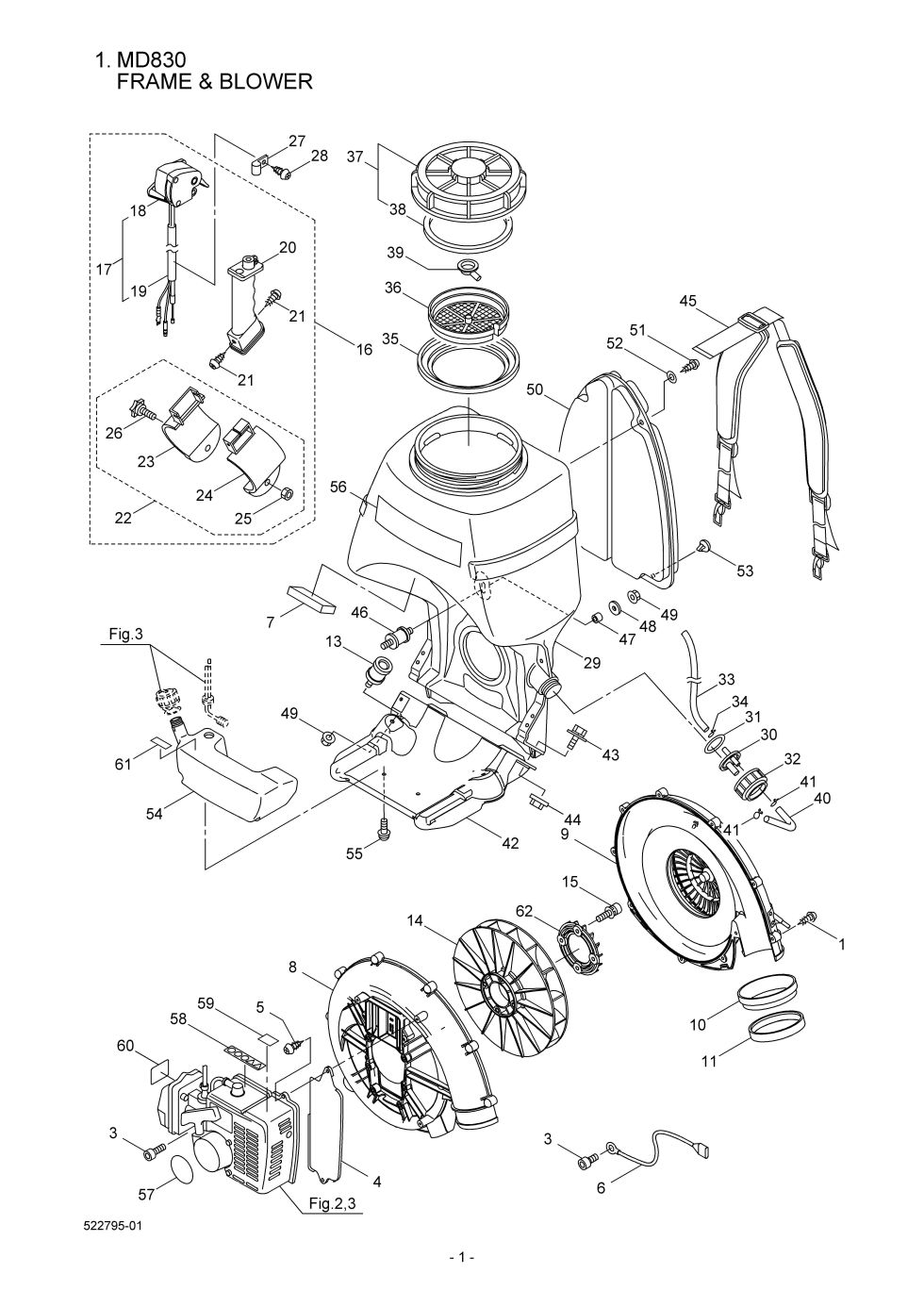

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 3 | 125588 | 125588 - BOLT |
$2.99
|
|
| 4 | 125404 | 125404 - GASKET |
$16.99
|
|
| 5 | 127295 | 127295 - SCREW |
$2.99
|
|
| 6 | 108634 | 108634 - GROUND CABLE |
$6.99
|
|
| 7 | 128143 | 128143 - SHEET |
$6.99
|
|
| 8 | 125405 | 125405 - FAN CASE / ENGINE SI |
$56.99
|
|
| 9 | 127718 | 127718 - FANCASE ASSY MC180DX |
$41.99
|
|
| 10 | 119160 | 119160 - COLLAR |
$5.99
|
|
| 11 | 119161 | 119161 - BAND |
$7.99
|
|
| 13 | 120615 | 120615 - SHOCK ABSORBER |
$22.99
|
|
| 14 | 128908 | 128908 - FAN FOR BL8200-HA SP |
$37.99
|
|
| 15 | 128911 | 128911 - CAP SCREW |
$2.99
|
|
| 16 | 125755 | 125755 - THROTTLE ASSY |
$68.99
|
|
| 17 | 125782 | 125782 - THROTTLE LEVER ASS'Y |
$55.99
|
|
| 18 | 125756 | 125756 - THROTTLE |
$34.99
|
|
| 19 | 125757 | 125757 - THROTTLE CABLE ASSY |
$56.99
|
|
| 20 | 118811 | 118811 - GRIP |
$23.99
|
|
| 21 | 127297 | 127297 - SCREW |
$2.99
|
|
| 22 | 122609 | 122609 - Band Assembly (Includes 122414 & 122416) |
$14.99
|
|
| 23 | 122414 |
122414 - BAND A (obsolete) use part #122609 |
$14.99
|
|
| 24 | 122416 |
122416 - BAND B (obsolete) use part #122609 |
$14.99
|
|
| 25 | 127298 | 127298 - NUT M6 |
$2.99
|
|
| 26 | 127299 |
127299 - KNOB BOLT (obsolete) use part #122610 |
$5.99
|
|
| 27 | 126049 | 126049 - Clamp |
$2.99
|
|
| 28 | 127300 | 127300 - Tapping Screw |
$2.99
|
|
| 29 | 128987 | 128987 - CHEMICAL TANK ASS'Y |
$172.99
|
|
| 30 | 127729 | 127729 - JOINT FOR MD180DX |
$2.99
|
|
| 31 | 108629 | 108629 - PACKING |
$2.99
|
|
| 32 | 127810 | 127810 - CAP MD180DX |
$6.99
|
|
| 33 | 128281 | 128281 - HOSE |
$2.99
|
|
| 34 | 125370 | 125370 - CLAMP |
$2.99
|
|
| 35 | 101834 | 101834 - COVER |
$12.99
|
|
| 36 | 022410 | 022410 - STRAINER |
$20.99
|
|
| 37 | 128351 | 128351 - CHEMICAL TANK LID |
$22.99
|
|
| 38 | 103194 |
103194 - USE: 100678 (obsolete) use part #100678 |
$17.99
|
|
| 39 | 101915 | 101915 - INNER CAP |
$2.99
|
|
| 40 | 127798 | 127798 - HOSE |
$2.99
|
|
| 41 | 112530 | 112530 - CLAMP |
$2.99
|
|
| 42 | 125765 | 125765 - BACKPACK FRAME B |
$35.99
|
|
| 43 | 127301 | 127301 - BOLT |
$2.99
|
|
| 44 | 127228 | 127228 - NUT |
$2.99
|
|
| 45 | 129216 | 129216 - BAND ASS'Y |
$48.99
|
|
| 46 | 101877 | 101877 - BUFFER |
$21.99
|
|
| 47 | 120616 | 120616 - SPACER |
$2.99
|
|
| 48 | 120617 | 120617 - WASHER |
$2.99
|
|
| 50 | 127513 | 127513 - PAD |
$19.99
|
|
| 51 | 126758 | 126758 - SCREW M6X8 |
$2.99
|
|
| 52 | 106352 | 106352 - PACKING |
$35.99
|
|
| 53 | 100749 | 100749 - PAD RETAINER |
$2.99
|
|
| 54 | 127673 | 127673 - FUEL TANK |
$31.99
|
|
| 55 | 125561 | 125561 - SCREW |
$2.99
|
|
| 57 | 123954 | 123954 - LABEL |
$2.99
|
|
| 58 | 266959 | 266959 - LABEL |
$6.99
|
|
| 59 | 285188 | 285188 - LABEL |
$2.99
|
|
| 61 | 121132 | 121132 - LABEL(BP400) |
$5.99
|
|
| 62 | 128910 | 128910 - RING |
$14.99
|
