 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

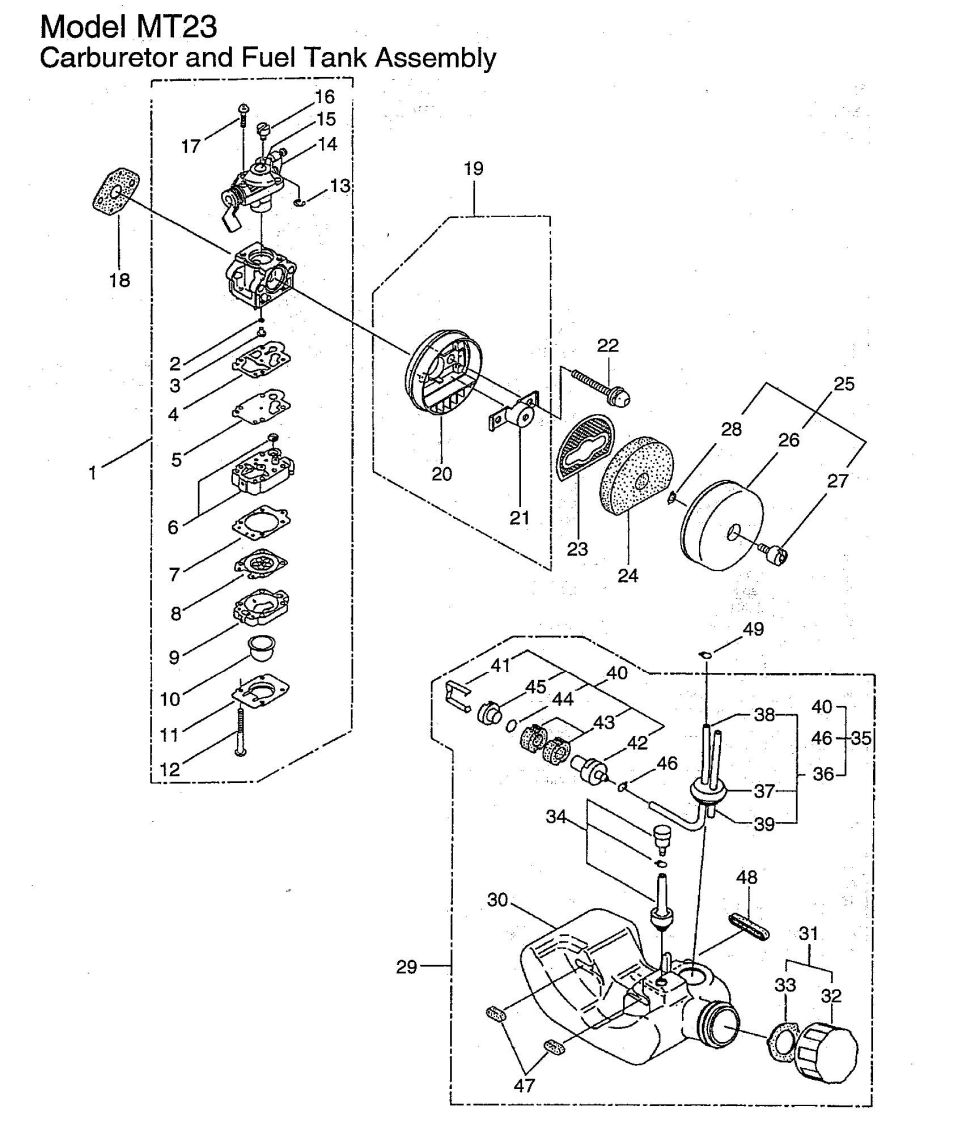

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 264783 | 264783 - CARB ASSY |
$132.99
|
|
| 2 | 261871 | 261871 - O-RING |
$2.99
|
|
| 3 | 262730 | 262730 - MAIN JET |
$11.99
|
|
| 4 | 261801 | 261801 - NS PACKING |
$2.99
|
|
| 4 | 262995 | 262995 - GASKET |
$13.99
|
|
| 5 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 6 | 264155 | 264155 - PUMP BODY |
$80.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 261873 | 261873 - DIAPHRAGM ASSY |
$17.99
|
|
| 9 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 10 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 11 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 12 | 262996 | 262996 - SCREW |
$2.99
|
|
| 13 | 261876 | 261876 - E-RING |
$2.99
|
|
| 15 | 261652 | 261652 - PLUG |
$2.99
|
|
| 16 | 261658 | 261658 - SWIVEL |
$18.99
|
|
| 17 | 264682 | 264682 - SCREW |
$5.99
|
|
| 18 | 261864 | 261864 - GASKET |
$2.99
|
|
| 19 | 264721 | 264721 - CASE ASSY |
$17.99
|
|
| 20 | 264722 | 264722 - CASE BODY |
$17.99
|
|
| 21 | 263815 | 263815 - STAY |
$8.99
|
|
| 22 | 264016 | 264016 - CAP SCREW M5X60 |
$2.99
|
|
| 23 | 263801 | 263801 - SCREEN |
$2.99
|
|
| 24 | 263819 | 263819 - FOAM ELEMENT |
$5.99
|
|
| 25 | 264344 | 264344 - NLA COVER ASSY |
$11.99
|
|
| 27 | 264022 |
264022 - USE: 286349 (obsolete) use part #286349 |
$2.99
|
|
| 28 | 261734 | 261734 - SNAP RING |
$2.99
|
|
| 29 | 264788 |
264788 - USE: 264316 (obsolete) use part #264316 |
$81.99
|
|
| 30 | 264317 |
264317 - FUEL TANK (obsolete) use part #ZZZ264317 |
$71.99
|
|
| 31 | 264784 | 264784 - USE: 261584 |
$15.99
|
|
| 32 | 264703 | 264703 - NLA FUEL TANK CAP AS |
$5.99
|
|
| 33 | 261105 | 261105 - PACKING |
$2.99
|
|
| 34 | 261696 | 261696 - BREATHER ASSY |
$8.99
|
|
| 35 | 263800 | 263800 - USE: 265752 |
$23.99
|
|
| 36 | 264031 | 264031 - FUEL PIPE ASSY |
$18.99
|
|
| 37 | 261115 |
261115 - USE: 266955 (obsolete) use part #266955 |
$17.99
|
|
| 38 | 261690 |
261690 - FUEL PIPE (obsolete) use part #262649 |
$2.99
|
|
| 39 | 263038 | 263038 - RETURN PIPE |
$2.99
|
|
| 40 | 261797 | 261797 - NLA FUEL FILTER ASSY |
$12.99
|
|
| 41 | 261798 | 261798 - NS CLIP |
$2.99
|
|
| 42 | 261799 | 261799 - NS BODY |
$8.99
|
|
| 43 | 261800 | 261800 - NLA FILTER |
$2.99
|
|
| 45 | 261802 | 261802 - RETAINER |
$6.99
|
|
| 46 | 261117 | 261117 - CLIP |
$2.99
|
|
| 47 | 264318 | 264318 - PAD |
$2.99
|
|
| 48 | 263824 | 263824 - PAD |
$2.99
|
