 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

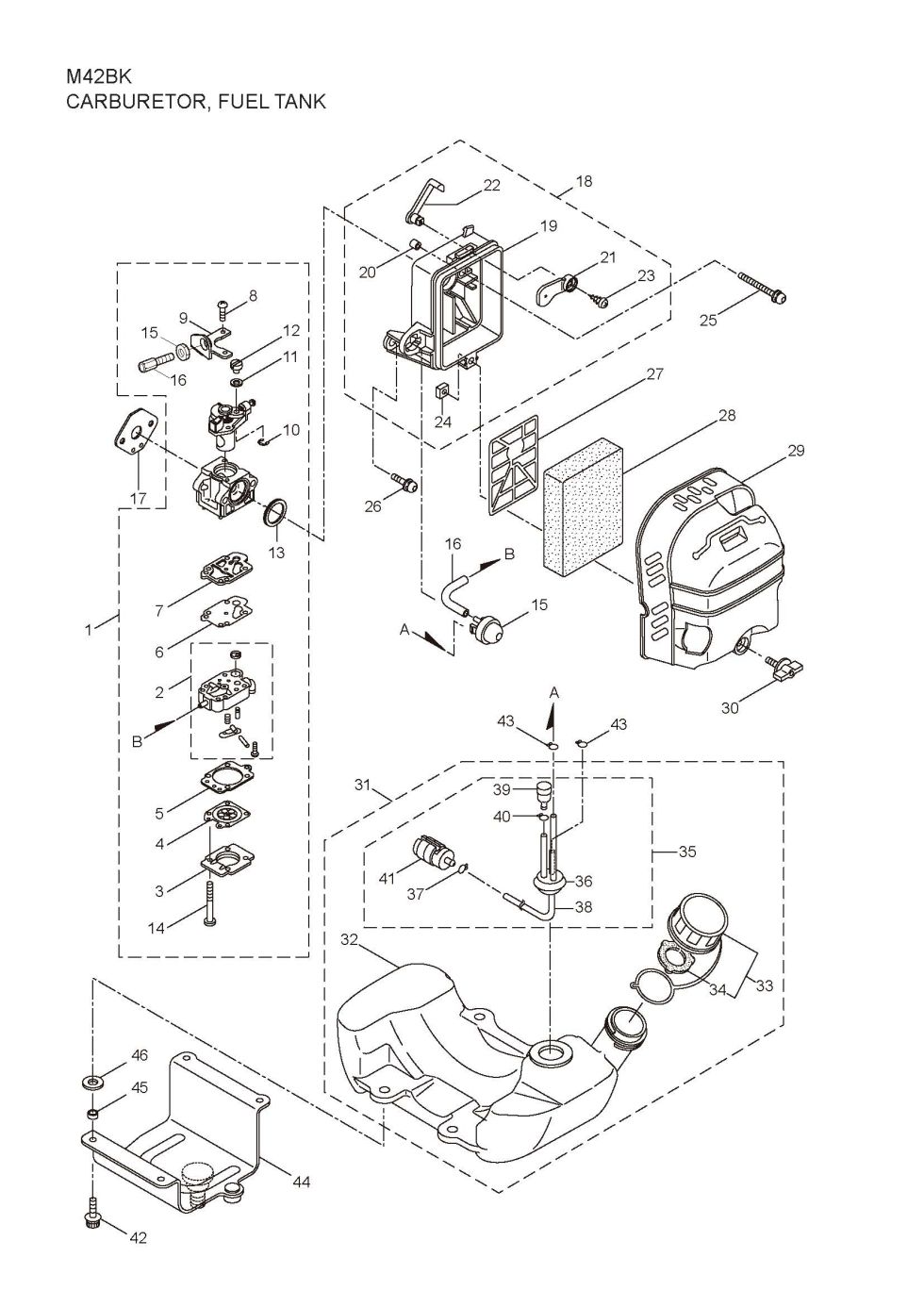

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 288451 | 288451 - CARBURETOR ASS'Y |
$85.99
|
|
| 2 | 283124 | 283124 - PUMP BODY |
$63.99
|
|
| 3 | 263726 | 263726 - COVER PLATE |
$6.99
|
|
| 4 | 283905 | 283905 - METERRING DIAPHRAGM |
$15.99
|
|
| 5 | 263727 | 263727 - GASKET |
$2.99
|
|
| 6 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 7 | 282576 | 282576 - GASKET |
$8.99
|
|
| 8 | 261875 | 261875 - SCREW |
$2.99
|
|
| 9 | 264677 | 264677 - BRACKET |
$20.99
|
|
| 10 | 261876 | 261876 - E-RING |
$2.99
|
|
| 11 | 264678 | 264678 - WASHER |
$2.99
|
|
| 12 | 261658 | 261658 - SWIVEL |
$18.99
|
|
| 13 | 261657 | 261657 - PACKING |
$10.99
|
|
| 14 | 263737 | 263737 - Screw |
$2.99
|
|
| 15 | 261878 | 261878 - NUT |
$2.99
|
|
| 16 | 263994 | 263994 - ADJUSTER |
$16.99
|
|
| 17 | 282301 | 282301 - GASKET |
$2.99
|
|
| 18 | 282302 | 282302 - CASE ASSY |
$19.99
|
|
| 19 | 282303 | 282303 - CASE BODY |
$14.99
|
|
| 20 | 282484 | 282484 - Sleeve |
$2.99
|
|
| 21 | 282304 | 282304 - VALVE |
$2.99
|
|
| 22 | 282305 | 282305 - LEVER |
$2.99
|
|
| 23 | 269032 | 269032 - SCREW |
$2.99
|
|
| 24 | 269423 | 269423 - NUT |
$2.99
|
|
| 25 | 261814 | 261814 - BOLT |
$2.99
|
|
| 26 | 264807 | 264807 - CAP SCREW M5X16 |
$2.99
|
|
| 27 | 282481 | 282481 - PLATE |
$2.99
|
|
| 28 | 282306 | 282306 - ELEMENT |
$6.99
|
|
| 29 | 285814 | 285814 - CLEANER COVER |
$9.99
|
|
| 30 | 281438 | 281438 - KNOB |
$7.99
|
|
| 31 | 285816 | 285816 - FUEL TANK ASSY |
$63.99
|
|
| 32 | 285817 | 285817 - FUEL TANK |
$29.99
|
|
| 33 | 281564 |
281564 - FUEL TANK CAP ASSY (obsolete) use part #289046 |
$19.99
|
|
| 34 | 269377 |
269377 - GASKET (obsolete) use part #287058 |
$10.99
|
|
| 35 | 286794 | 286794 - FUEL PIPE ASSY |
$33.99
|
|
| 36 | 268065 | 268065 - GROMMET |
$8.99
|
|
| 37 | 261117 | 261117 - CLIP |
$2.99
|
|
| 38 | 262649 | 262649 - FUEL PIPE |
$2.99
|
|
| 39 | 261590 | 261590 - BREATHER SUB ASSY |
$12.99
|
|
| 41 | 267328 |
267328 - FUEL FILTER ASSY (obsolete) use part #277887 |
$11.99
|
|
| 42 | 261250 | 261250 - BOLT M5X20 |
$2.99
|
|
| 44 | 287270 | 287270 - BRACKET |
$45.99
|
|
| 45 | 288592 | 288592 - SLEEVE |
$2.99
|
|
| 46 | 285735 | 285735 - PACKING |
$2.99
|
