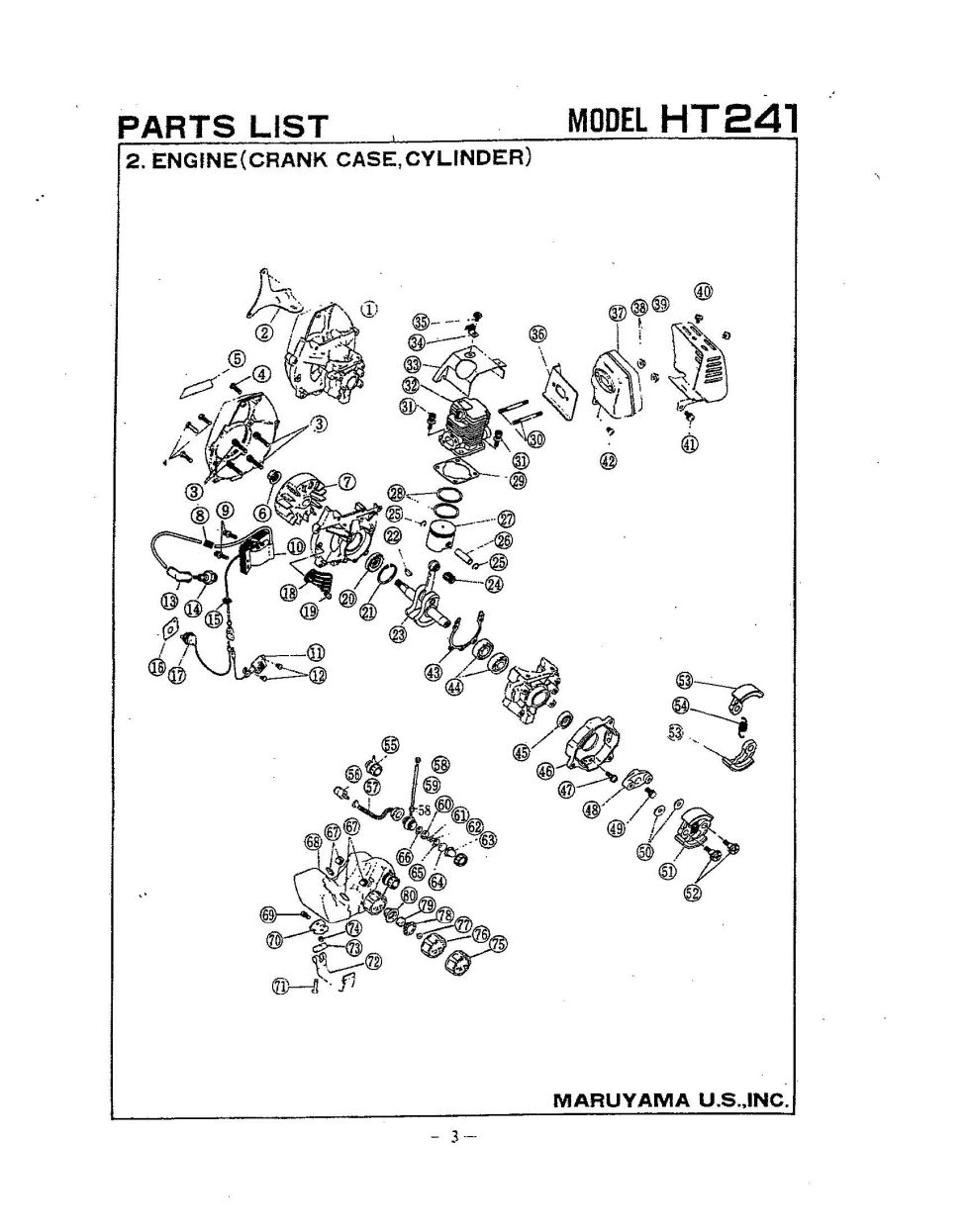

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT241. You have selected the Engine (Crankcase, Cylinder) diagram for the Maruyama HT241 Hedge Trimmers. Below you will find an interactive part diagram for the HT241 Engine (Crankcase, Cylinder). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT241 parts not shown in this diagram you may select from one of the other HT241 part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
1 997330 997330 - NLA CRANK CASE ASSY
$173.99
2 997255 997255 - NLA BRACKET
$11.99
3 971819 971819 - NLA CASE SCREW
$2.99
4 912606 912606 - NLA SCREW
$2.99
5 997331 997331 - NAME PLATE
$11.99
6 990136 990136 - NLA NUT
$5.99
7 997332 997332 - NLA FLYWHEEL
$124.99
8 971733 971733 - USE: 583085 No Longer Available
Obsolete.
9 977301 977301 - NLA BOLT
$2.99
10 991092 991092 - NLA IGNITION COIL
$95.99
11 991100 991100 - NLA UNIT ELECTRONIC
$71.99
12 970899 970899 - NLA SCREW
$2.99
13 971724 971724 - USE: 573183 No Longer Available
Obsolete.
15 971732 971732 - USE: 912618
$2.99
16 977445 977445 - BRACKET
$5.99
17 977442 977442 - NLA STOP SWITCH
$19.99
18 977311 977311 - NLA CLAMP
$2.99
19 972891 972891 - NLA SCREW
$2.99
20 972843 972843 - NLA OIL SEAL
$17.99
21 971824 971824 - USE: 912607 No Longer Available
Obsolete.
22 972897 972897 - NLA KEY
$11.99
23 997343 997343 - USE: 585294
$144.99
24 972869 972869 - NLA NEEDLE BEARING
$13.99
25 972823 972823 - NLA PISTON PIN SNAP
$2.99
26 990675 990675 - NLA PISTON PIN
$10.99
27 972821 972821 - NLA PISTON PIN SET
$30.99
28 972822 972822 - NLA PISTON RING
$18.99
29 972825 972825 - NLA CYLINDER PACKING
$2.99
30 972881 972881 - NLA STUD BOLT
$6.99
32 996355 996355 - NLA CYLINDER
$137.99
33 997333 997333 - NLA CYLINDER COVER
$19.99
34 971797 971797 - NLA CLAMP
$2.99
35 971821 971821 - NLA SCREW
$2.99
36 997334 997334 - NLA MUFFLER GASKET
$7.99
37 997335 997335 - NLA MUFFLER
$104.99
38 991103 991103 - NLA FLANGE NUT
$6.99
39 997336 997336 - NLA MUFFLER COVER
$45.99
40 971820 971820 - NLA SCREW
$2.99
41 979338 979338 - USE: 260015 No Longer Available
Obsolete.
42 997337 997337 - SCREW
$2.99
43 972820 972820 - NLA GASKET
$11.99
44 971823 971823 - USE: 12693
$15.99
45 971734 971734 - USE: 912612 No Longer Available
Obsolete.
46 997256 997256 - NLA CLUTCH CASE
$23.99
47 971817 971817 - NLA SCREW
$2.99
48 997301 997301 - NLA CLUTCH HOLDER
$28.99
49 997302 997302 - NLA BOLT, WASHER
$2.99
50 912642 912642 - NLA WASHER
$11.99
51 997338 997338 - NLA CLUTCH ASSY
$101.99
52 990679 990679 - NLA CLUTCH DRUM BOLT
$13.99
53 997339 997339 - NLA SHOE CLUTCH
$34.99
54 997340 997340 - NLA SPRING
$10.99
55 971736 971736 - USE: 260109 No Longer Available
Obsolete.
56 971737 971737 - USE: 912658 No Longer Available
Obsolete.
57 977571 977571 - USE: 260340
$30.99
58 971781 971781 - NLA FUEL PIPE CLIP
$2.99
59 912652 912652 - USE: 972815 No Longer Available
Obsolete.
60 972811 972811 - NLA SEAT, MACHINED D
$12.99
61 972813 972813 - NLA BALL (NO SUPERSE
$13.99
62 972817 972817 - NLA SPONGE
$2.99
63 972814 972814 - USE: 996357
$6.99
64 972818 972818 - NLA SEAT, MACHINED D
$12.99
65 972812 972812 - NLA PACKING A
$8.99
66 972819 972819 - NLA PACKING B
$10.99
67 971738 971738 - NLA PAD
$7.99
68 997341 997341 - NLA FUEL TANK ASSY
$70.99
69 976743 976743 - SCREW
$2.99
70 997342 997342 - TANK HANGER
$16.99
72 991101 991101 - NLA TANK BAND
$17.99
73 972883 972883 - NLA BAND SUPPORT BAR
$9.99
74 979339 979339 - NLA NUT
$2.99
75 977314 977314 - USE: 996490
$20.99
76 977317 977317 - NLA FUEL TANK CAP
$11.99
77 977316 977316 - NLA COMBINATION VALV
$14.99
78 977318 977318 - NLA HOLDER, MACHINED
$11.99
79 977535 977535 - USE: 996490 No Longer Available
Obsolete.
80 977315 977315 - USE: 260309
$7.99
