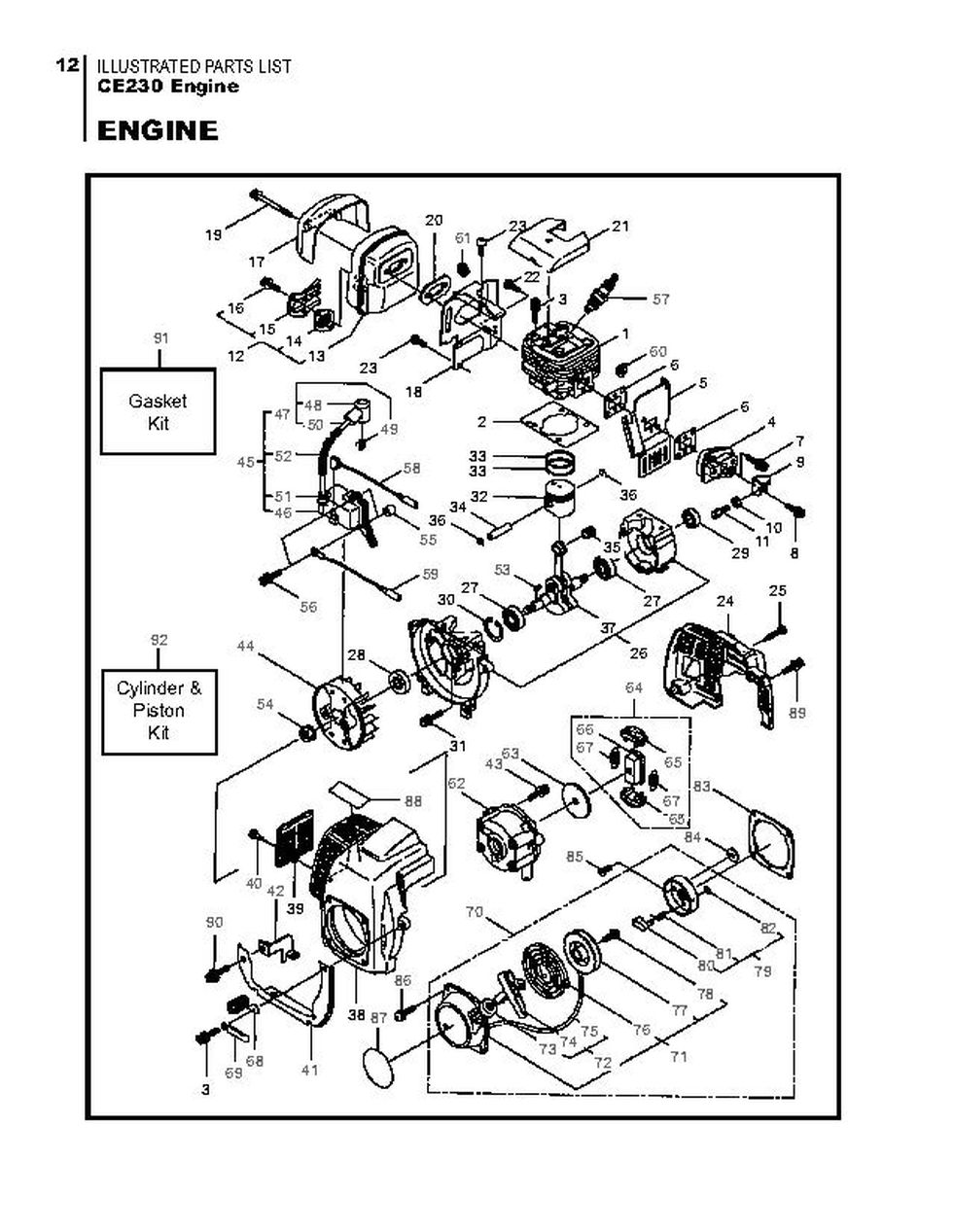

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT2320, HT2320L, HT2320DR. You have selected the Engine diagram for the Maruyama HT2320, HT2320L, HT2320DR Hedge Trimmers. Below you will find an interactive part diagram for the HT2320, HT2320L, HT2320DR Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT2320, HT2320L, HT2320DR parts not shown in this diagram you may select from one of the other HT2320, HT2320L, HT2320DR part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 268005 | 268005 - CYLINDER |
$114.99
|
|
| 2 | 268070 | 268070 - GASKET |
$2.99
|
|
| 3 | 261250 | 261250 - BOLT M5X20 |
$2.99
|
|
| 4(HT2320, HT2320L) | 267924 | 267924 - INSULATOR BLOCK |
$19.99
|
|
| 4(HT2320DR) | 265802 | 265802 - INSULATOR |
$27.99
|
|
| 5 | 268014 | 268014 - AIR DUCT |
$14.99
|
|
| 6 | 261171 | 261171 - GASKET |
$2.99
|
|
| 7 | 265924 | 265924 - CAP SCREW 5X25 |
$2.99
|
|
| 8 | 265925 | 265925 - CAP SCREW M5X25 |
$2.99
|
|
| 9 | 268593 | 268593 - STAY |
$8.99
|
|
| 10 | 261878 | 261878 - NUT |
$2.99
|
|
| 11 | 264736 | 264736 - ADAPTER |
$10.99
|
|
| 12 | 268016 | 268016 - MUFFLER ASSY |
$99.99
|
|
| 13 | 268017 | 268017 - MUFFLER |
$73.99
|
|
| 14 | 267056 | 267056 - SPARK ARRESTER |
$7.99
|
|
| 15 | 268171 | 268171 - MUFFLER TAIL |
$11.99
|
|
| 16 | 265107 | 265107 - BOLT |
$2.99
|
|
| 17 | 268461 | 268461 - HOLDER |
$7.99
|
|
| 18 | 268020 | 268020 - PLATE |
$21.99
|
|
| 19 | 266402 | 266402 - CAP SCREW |
$5.99
|
|
| 20 | 268019 | 268019 - GASKET |
$5.99
|
|
| 21 | 268460 | 268460 - AIR BAFFLE STEEL |
$7.99
|
|
| 23 | 268195 | 268195 - USE: 285189 |
$2.99
|
|
| 24 | 268580 | 268580 - CYLINDER COVER |
$21.99
|
|
| 25 | 266000 | 266000 - TAPPING SCREW |
$2.99
|
|
| 26 | 268576 | 268576 - CRANKCASE |
$60.99
|
|
| 27 | 261491 | 261491 - BEARING |
$21.99
|
|
| 28 | 262198 | 262198 - NLA OIL SEAL |
$5.99
|
|
| 29 | 261386 | 261386 - OIL SEAL |
$2.99
|
|
| 30 | 055185 | 055185 - SNAP RING |
$2.99
|
|
| 31 | 261246 | 261246 - CAP SCREW M5X25 |
$2.99
|
|
| 32 | 268032 | 268032 - USE: 283379 |
$45.99
|
|
| 33 | 264891 | 264891 - PISTON RING |
$14.99
|
|
| 34 | 261036 | 261036 - PISTON PIN |
$16.99
|
|
| 35 | 263957 | 263957 - BEARING NEEDLE |
$21.99
|
|
| 36 | 261576 | 261576 - CIRCLIP |
$2.99
|
|
| 37 | 268585 | 268585 - CRANKSHAFT/CONN. ROD |
$85.99
|
|
| 38 | 268474 | 268474 - FAN COVER |
$30.99
|
|
| 39 | 268388 | 268388 - COVER |
$11.99
|
|
| 40 | 268390 | 268390 - SCREW |
$2.99
|
|
| 41 | 268590 | 268590 - PLATE |
$13.99
|
|
| 42 | 268591 | 268591 - STAY |
$8.99
|
|
| 43 | 261607 | 261607 - BOLT M5X16 |
$2.99
|
|
| 44 | 268039 | 268039 - ROTOR/FAN |
$46.99
|
|
| 45 | 268041 |
268041 - NLA IGNITION COIL AS (obsolete) use part #287278 |
$50.99
|
|
| 46 | 268040 | 268040 - NLA CAN USE ASSY 287 |
$65.99
|
|
| 47 | 268042 | 268042 - SPARK PLUG WIRE ASSY |
$30.99
|
|
| 48 | 261074 | 261074 - PLUG CAP |
$13.99
|
|
| 49 | 261075 | 261075 - CONNECTOR |
$2.99
|
|
| 50 | 268043 | 268043 - SPARK PLUG WIRE |
$2.99
|
|
| 51 | 261072 | 261072 - CAP |
$2.99
|
|
| 52(HT2320, HT2320L) | 268882 | 268882 - LEAD |
$5.99
|
|
| 52 | 268584 | 268584 - COIL WIRE INSULATOR |
$2.99
|
|
| 53 | 261076 | 261076 - WOODRUFF KEY |
$2.99
|
|
| 54 | 261417 | 261417 - ROTOR NUT |
$8.99
|
|
| 55 | 268380 | 268380 - USE: 280381 |
$2.99
|
|
| 56 | 261256 | 261256 - BOLT M4X25 |
$2.99
|
|
| 57 | 261200 | 261200 - SPARK PLUG |
$20.99
|
|
| 58(HT2320,HT2320L) | 261772 | 261772 - LEAD |
$2.99
|
|
| 58(HT2320DR) | 268932 | 268932 - LEAD |
$5.99
|
|
| 59(HT2320DR) | 265269 | 265269 - LEAD |
$2.99
|
|
| 60 | 261202 | 261202 - GROMMET |
$2.99
|
|
| 61 | 268036 | 268036 - GROMMET |
$2.99
|
|
| 62 | 268581 | 268581 - CLUTCH CASE |
$21.99
|
|
| 63 | 264646 | 264646 - NLA WASHER |
$5.99
|
|
| 64 | 264959 | 264959 - NLA CLUTCH ASSY |
$29.99
|
|
| 65 | 264960 | 264960 - CLUTCH SHOE |
$22.99
|
|
| 66 | 264963 | 264963 - CLUTCH BOSS |
$20.99
|
|
| 67 | 264964 | 264964 - SPRING |
$6.99
|
|
| 68 | 268592 | 268592 - CLAMP |
$5.99
|
|
| 69 | 264588 | 264588 - CLAMP |
$2.99
|
|
| 70 | 268668 | 268668 - RECOIL STARTER ASSY |
$27.99
|
|
| 71 | 268669 | 268669 - STARTER ASSY |
$33.99
|
|
| 72 | 268813 | 268813 - ROPE ASSY |
$20.99
|
|
| 73 | 268670 | 268670 - DAMPER |
$2.99
|
|
| 74 | 267219 | 267219 - STARTER GRIP |
$2.99
|
|
| 75 | 268201 | 268201 - STARTER ROPE |
$2.99
|
|
| 76 | 267214 | 267214 - SPIRAL SPRING |
$15.99
|
|
| 77 | 268050 | 268050 - PULLEY |
$19.99
|
|
| 78 | 267213 | 267213 - SCREW |
$2.99
|
|
| 79 | 264085 | 264085 - STARTER PAWL ASSY |
$17.99
|
|
| 80 | 261630 | 261630 - PAWL |
$10.99
|
|
| 81 | 261631 | 261631 - RETURN SPRING |
$2.99
|
|
| 82 | 020299 | 020299 - E-SHAPED SNAP RING |
$2.99
|
|
| 83 | 268671 | 268671 - PLATE |
$5.99
|
|
| 84 | 261189 | 261189 - WASHER |
$2.99
|
|
| 85 | 264535 | 264535 - SCREW(M6X20) |
$2.99
|
|
| 87(a) | 268845 | 268845 - NLA LABEL |
$2.99
|
|
| 87(b)(HT2320DR) | 269034 | 269034 - LABEL |
$5.99
|
|
| 88 | 268518 | 268518 - LABEL |
$2.99
|
|
| 90 | 268940 | 268940 - SCREW |
$2.99
|
|
| 91 | 636697 | 636697 - GASKET KIT(CE ENGINE |
$17.99
|
|
| 92 | 634608 | 634608 - CYLINDER & PISTON KI |
$168.99
|
