 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

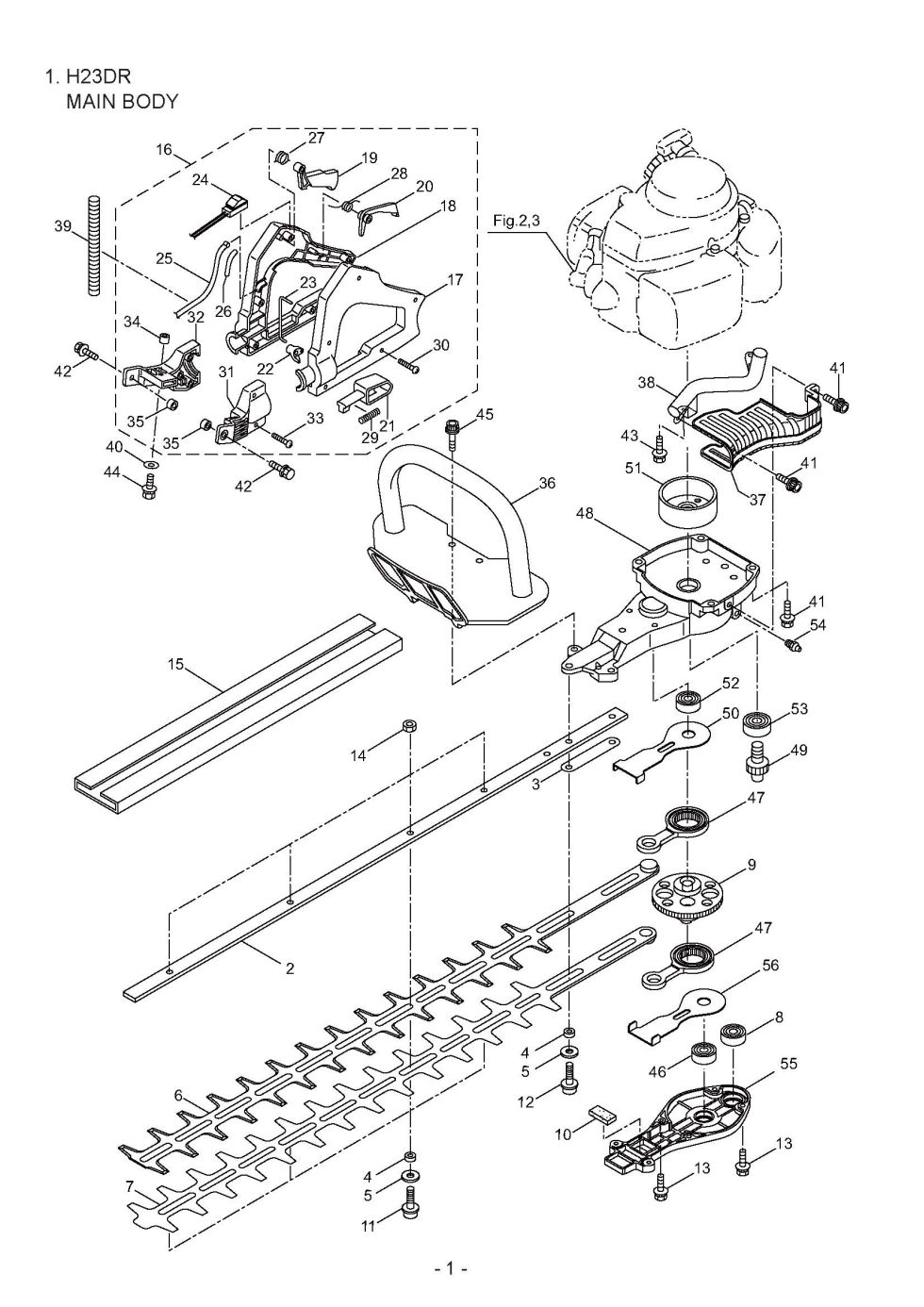

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 271887 | 271887 - GUIDE PLATE |
$31.99
|
|
| 3 | 271888 | 271888 - SPACER PLATE |
$14.99
|
|
| 4 | 271889 | 271889 - SPACER |
$2.99
|
|
| 5 | 271890 | 271890 - WASHER |
$2.99
|
|
| 6 | 271891 | 271891 - UPPER BLADE |
$113.99
|
|
| 7 | 271892 | 271892 - LOWER BLADE |
$122.99
|
|
| 8 | 271925 | 271925 - BEARING |
$41.99
|
|
| 9 | 271926 | 271926 - CRANK COMP. |
$213.99
|
|
| 10 | 271927 | 271927 - FELT |
$18.99
|
|
| 11 | 271896 | 271896 - SCREW |
$5.99
|
|
| 12 | 271897 | 271897 - SCREW |
$5.99
|
|
| 13 | 271910 | 271910 - SCREW |
$2.99
|
|
| 14 | 271899 | 271899 - NUT |
$2.99
|
|
| 15 | 271901 | 271901 - COVER OF BLADE |
$27.99
|
|
| 16 | 271902 | 271902 - REAR HANDLE ASS'Y |
$104.99
|
|
| 17 | 271278 | 271278 - REAR HANDLE (L) |
$33.99
|
|
| 18 | 271279 | 271279 - REAR HANDLE (R) |
$34.99
|
|
| 19 | 271280 | 271280 - LEVER,THROTTLE |
$14.99
|
|
| 20 | 271281 | 271281 - STOP LEVER |
$2.99
|
|
| 21 | 271282 | 271282 - LOCK LEVER |
$16.99
|
|
| 22 | 271283 | 271283 - LOCK LEVER STOPPER |
$54.99
|
|
| 23 | 271284 | 271284 - ROD |
$8.99
|
|
| 24 | 271285 | 271285 - SWITCH |
$48.99
|
|
| 25 | 271904 | 271904 - CABLE COMP. |
$37.99
|
|
| 26 | 271287 | 271287 - SPACER |
$13.99
|
|
| 27 | 271288 | 271288 - SPRING |
$8.99
|
|
| 28 | 271289 | 271289 - SPRING |
$9.99
|
|
| 29 | 270400 | 270400 - SPRING |
$18.99
|
|
| 30 | 271276 | 271276 - SCREW |
$2.99
|
|
| 31 | 271274 | 271274 - HANDLE STAY (L) |
$19.99
|
|
| 32 | 271275 | 271275 - HANDLE STAY (R) |
$21.99
|
|
| 34 | 270424 | 270424 - SPACER |
$5.99
|
|
| 35 | 271277 | 271277 - SPACER |
$5.99
|
|
| 36 | 271905 | 271905 - FRONT HANDLE |
$42.99
|
|
| 37 | 271906 | 271906 - TAIL PIPE COVER |
$48.99
|
|
| 38 | 271907 | 271907 - TAIL PIPE COMP. |
$53.99
|
|
| 39 | 271221 | 271221 - TUBE |
$5.99
|
|
| 40 | 270843 | 270843 - WASHER |
$2.99
|
|
| 41 | 271908 | 271908 - SCREW |
$7.99
|
|
| 42 | 271909 | 271909 - SCREW |
$7.99
|
|
| 44 | 271911 | 271911 - SCREW |
$5.99
|
|
| 45 | 271912 | 271912 - SCREW |
$5.99
|
|
| 46 | 270423 | 270423 - BEARING |
$22.99
|
|
| 47 | 271914 | 271914 - ROD ASS'Y |
$105.99
|
|
| 48 | 271918 | 271918 - UPPER CASE |
$133.99
|
|
| 49 | 271919 | 271919 - PINION |
$115.99
|
|
| 50 | 271920 | 271920 - PLATE |
$8.99
|
|
| 51 | 270021 | 270021 - DRUM |
$45.99
|
|
| 52 | 271921 | 271921 - BEARING |
$19.99
|
|
| 53 | 580767 | 580767 - BALL BEARING (#6001- |
$29.99
|
|
| 54 | 991937 | 991937 - NIPPLE, GREASE |
$6.99
|
|
| 55 | 271923 | 271923 - LOWER CASE |
$66.99
|
|
| 56 | 271924 | 271924 - PLATE |
$8.99
|
