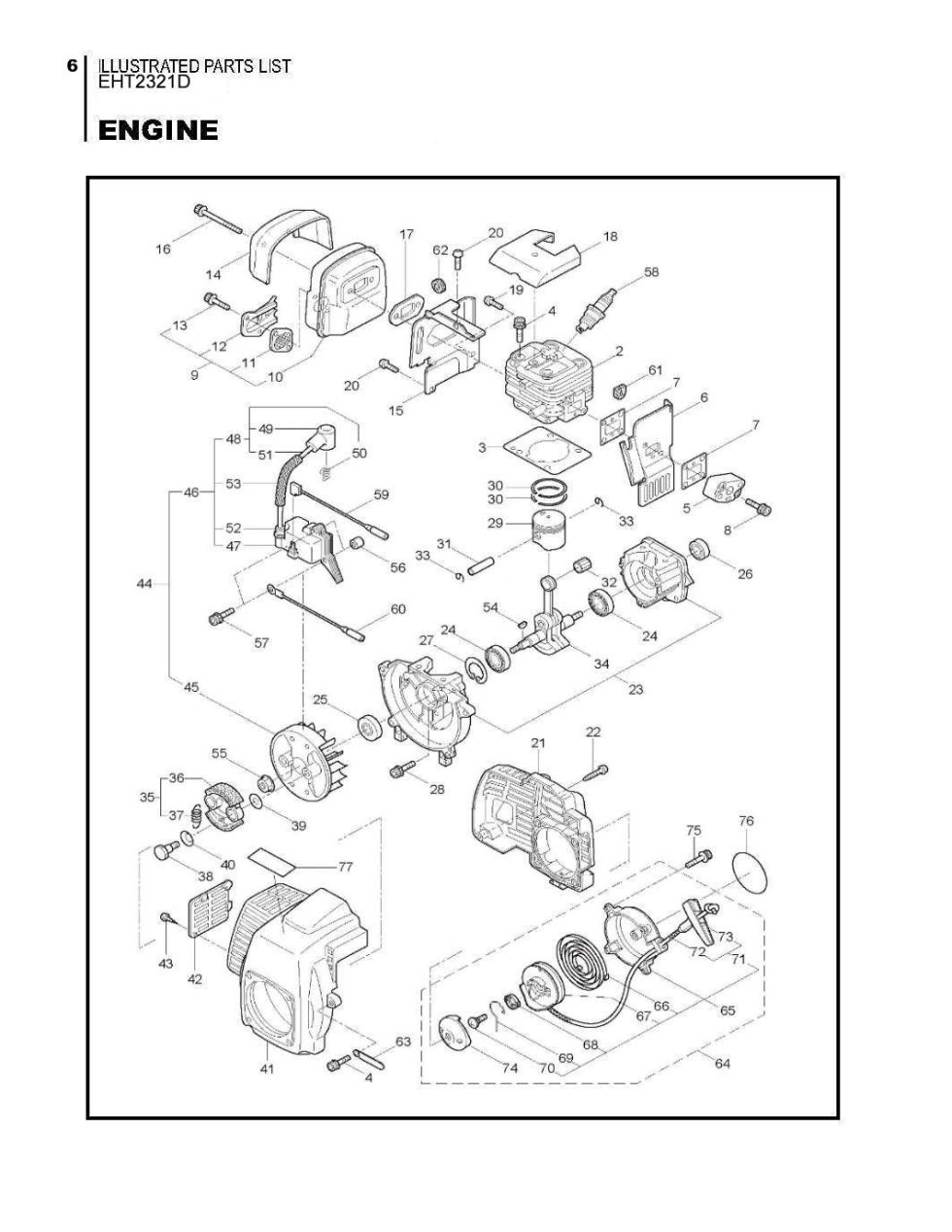

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your EHT2321D. You have selected the Engine diagram for the Maruyama EHT2321D Hedge Trimmers. Below you will find an interactive part diagram for the EHT2321D Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the EHT2321D parts not shown in this diagram you may select from one of the other EHT2321D part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
2 268005 268005 - CYLINDER
$114.99
3 268070 268070 - GASKET
$2.99
4 261250 261250 - BOLT M5X20
$2.99
5 266317 266317 - INSULATOR
$28.99
6 268014 268014 - AIR DUCT
$14.99
7 261171 261171 - GASKET
$2.99
8 265924 265924 - CAP SCREW 5X25
$2.99
9 268016 268016 - MUFFLER ASSY
$99.99
10 268017 268017 - MUFFLER
$73.99
11 267056 267056 - SPARK ARRESTER
$7.99
12 268171 268171 - MUFFLER TAIL
$11.99
13 265107 265107 - BOLT
$2.99
14 268461 268461 - HOLDER
$7.99
15 268020 268020 - PLATE
$21.99
16 266402 266402 - CAP SCREW
$5.99
17 268019 268019 - GASKET
$5.99
18 268460 268460 - AIR BAFFLE STEEL
$7.99
20 268195 268195 - USE: 285189
$2.99
21 268159 268159 - NLA CYLINDER COVER (
$21.99
22 266000 266000 - TAPPING SCREW
$2.99
23 268026 268026 - CRANKCASE
$63.99
24 280488 280488 - USE: 261491
$13.99
25 261492 261492 - OIL SEAL
$2.99
26 261386 261386 - OIL SEAL
$2.99
27 055185 055185 - SNAP RING
$2.99
28 261612 261612 - BOLT
$2.99
29 268032 268032 - USE: 283379
$45.99
30 264891 264891 - PISTON RING
$14.99
31 261036 261036 - PISTON PIN
$16.99
33 261576 261576 - CIRCLIP
$2.99
34 268187 268187 - CRANKSHAFT/CONN ROD
$82.99
36 267342 267342 - CLUTCH SHOE
$23.99
37 267345 267345 - CLUTCH SPRING
$10.99
38 264505 264505 - CLUTCH BOLT
$5.99
39 261189 261189 - WASHER
$2.99
40 261777 261777 - WAVE WASHER
$2.99
41 268474 268474 - FAN COVER
$30.99
42 268388 268388 - COVER
$11.99
43 268390 268390 - SCREW
$2.99
44 268038 268038 - NLA MAGNETO ASSY (NO
$93.99
45 268039 268039 - ROTOR/FAN
$46.99
46 268041 268041 - NLA IGNITION COIL AS (obsolete)
use part #287278
$50.99
47 268040 268040 - NLA CAN USE ASSY 287
$65.99
48 268042 268042 - SPARK PLUG WIRE ASSY
$30.99
49 261074 261074 - PLUG CAP
$13.99
50 261075 261075 - CONNECTOR
$2.99
51 268043 268043 - SPARK PLUG WIRE
$2.99
52 261072 261072 - CAP
$2.99
53 268584 268584 - COIL WIRE INSULATOR
$2.99
54 261076 261076 - WOODRUFF KEY
$2.99
55 261417 261417 - ROTOR NUT
$8.99
56 268380 268380 - USE: 280381
$2.99
57 261256 261256 - BOLT M4X25
$2.99
58 261200 261200 - SPARK PLUG
$20.99
59 261772 261772 - LEAD
$2.99
60 268044 268044 - LEAD
$5.99
61 261202 261202 - GROMMET
$2.99
62 268036 268036 - GROMMET
$2.99
63 264588 264588 - CLAMP
$2.99
64 268161 268161 - RECOIL STARTER ASSY
$30.99
65 268163 268163 - RECOIL ASSY
$28.99
66 267214 267214 - SPIRAL SPRING
$15.99
67 268050 268050 - PULLEY
$19.99
68 267215 267215 - COLLAR
$2.99
69 267216 267216 - SWING ARM
$2.99
70 267213 267213 - SCREW
$2.99
71 268202 268202 - ROPE ASSY
$9.99
72 268201 268201 - STARTER ROPE
$2.99
73 267219 267219 - STARTER GRIP
$2.99
74 267098 267098 - STARTER PULLEY
$2.99
75 265726 265726 - SCREW
$2.99
76 268442 268442 - LABEL
$5.99
77 268518 268518 - LABEL
$2.99
