Home :: Parts Lookup :: Hedge Trimmers :: EHT2321D Driveshaft breadcrumb_end

Model Type:

Model:

Assembly:

All Diagrams for this Model

Driveshaft

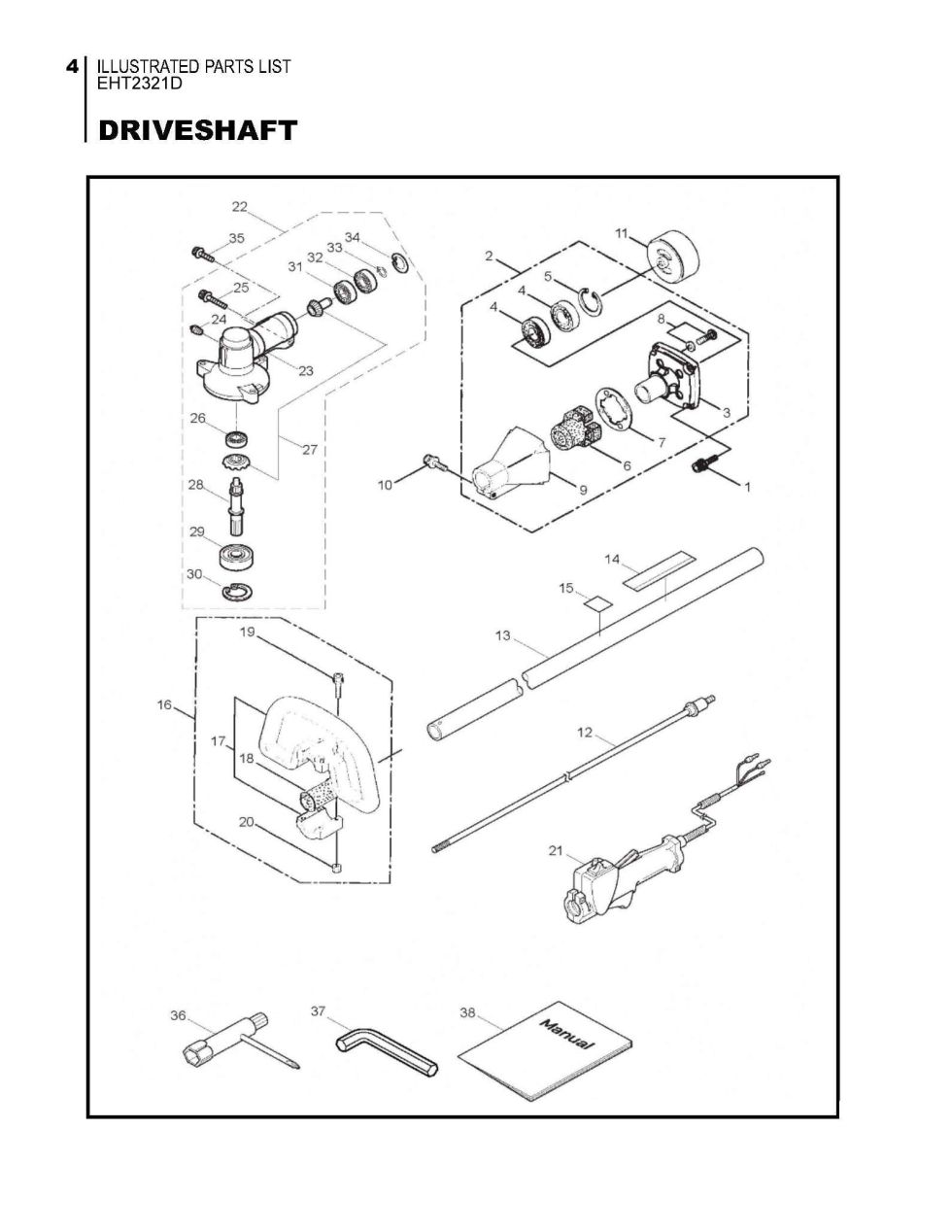

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your EHT2321D. You have selected the Driveshaft diagram for the Maruyama EHT2321D Hedge Trimmers. Below you will find an interactive part diagram for the EHT2321D Driveshaft. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the EHT2321D parts not shown in this diagram you may select from one of the other EHT2321D part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number	SKU	Product title	Price
1	261250	261250 - BOLT M5X20	$2.99
2	219469	219469 - CLUTCH CASE ASSY	$136.99
3	218879	218879 - BEARING CASE	$29.99
4	214161	214161 - USE: 102680	$13.99
5	054676	054676 - SNAP RING	$2.99
6	214162	214162 - BUFFER	$28.99
7	214163	214163 - WASHER	$11.99
8	092033	092033 - SCREW(M5X15)	$2.99
9	218880	218880 - DRIVESHAFT TUBE ADAP	$36.99
10	261246	261246 - CAP SCREW M5X25	$2.99
11	219083	219083 - CLUTCH DRUM	$28.99
12	220357	220357 - DRIVESHAFT	$42.99
13	217648	217648 - DRIVESHAFT TUBE	$56.99
14	227196	227196 - NAME PLATE	$13.99
15	217879	217879 - LABEL	$6.99
16	215601	215601 - LOOP HANDLE ASSY	$27.99
17	214982	214982 - HANDLE ASSY	$28.99
18	213171	213171 - PACKING	$8.99
19	215608	215608 - CAP SCREW	$2.99
20	089846	089846 - NUT M5 (obsolete) use part #081027	$2.99
21	223153	223153 - THROTTLE TRIGGER ASS	$42.99
22	217655	217655 - GEARCASE ASSY	$114.99
23	217656	217656 - GEARCASE	$50.99
24	069553	069553 - GREASE FITTING	$2.99
26	210554	210554 - BEARING	$9.99
27	227104	227104 - GEAR SET	$39.99
28	210556	210556 - BLADE AXIS	$38.99
29	217659	217659 - BEARING #6201 2RK	$21.99
30	016732	016732 - C SHAPED SNAP RING 3	$2.99
31	210560	210560 - BEARING	$10.99
32	140268	140268 - BEARING	$12.99
33	140269	140269 - USE: 228477	$2.99
34	140270	140270 - SNAP RING	$2.99
35	215993	215993 - CAP SCREW, ALIGNMENT	$2.99
36	210418	210418 - BOX WRENCH/DRIVER	$16.99
37	219432	219432 - 4MM HEX WRENCH	$2.99
