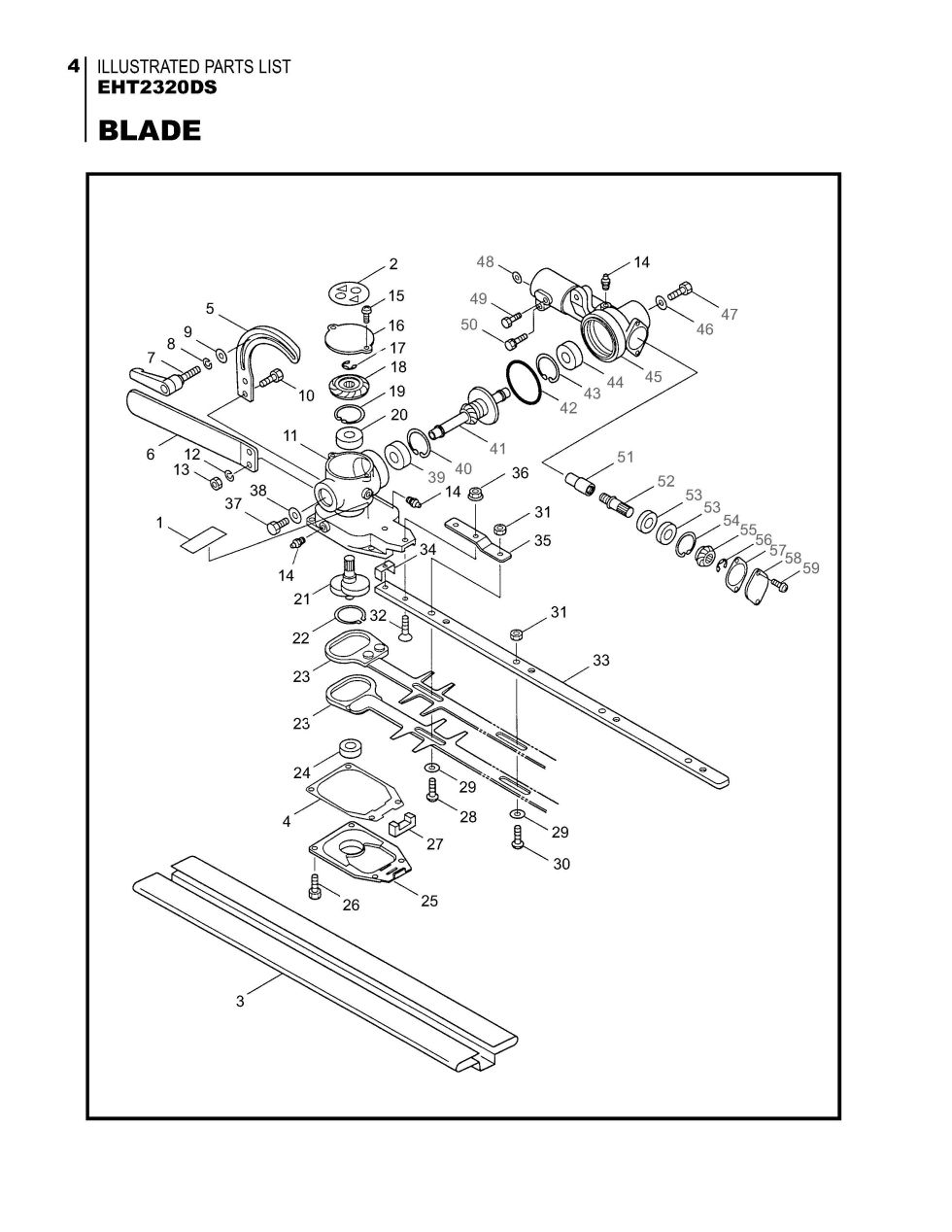

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your EHT2320DS. You have selected the Blade diagram for the Maruyama EHT2320DS Hedge Trimmers. Below you will find an interactive part diagram for the EHT2320DS Blade. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the EHT2320DS parts not shown in this diagram you may select from one of the other EHT2320DS part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 223925 | 223925 - LABEL |
$2.99
|
|
| 3 | 631785 | 631785 - BLADE COVER |
$15.99
|
|
| 4 | 634571 | 634571 - PACKING |
$14.99
|
|
| 5 | 223873 | 223873 - STAY |
$24.99
|
|
| 6 | 223872 | 223872 - HANDLE |
$16.99
|
|
| 7 | 631748 | 631748 - CLAMP LEVER |
$82.99
|
|
| 8 | 631749 | 631749 - SPRING WASHER |
$2.99
|
|
| 9 | 631750 | 631750 - WASHER |
$2.99
|
|
| 10 | 631751 | 631751 - SCREW |
$2.99
|
|
| 11 | 634568 | 634568 - CASING (A) |
$79.99
|
|
| 13 | 582438 | 582438 - USE: 997253 |
$2.99
|
|
| 14 | 991937 | 991937 - NIPPLE, GREASE |
$6.99
|
|
| 15 | 631753 | 631753 - SCREW |
$2.99
|
|
| 16 | 631754 | 631754 - PLATE A |
$10.99
|
|
| 17 | 631755 | 631755 - SNAP RING |
$2.99
|
|
| 18 | 631756 | 631756 - GEAR |
$66.99
|
|
| 19 | 631757 | 631757 - SNAP RING |
$2.99
|
|
| 20 | 991933 | 991933 - USE: 14490 |
$9.99
|
|
| 21 | 631758 | 631758 - CRANK COMPLETE |
$78.99
|
|
| 22 | 631759 | 631759 - SNAP RING |
$2.99
|
|
| 23 | 631760 | 631760 - BLADE 16 INCH |
$67.99
|
|
| 24 | 580768 | 580768 - BALL BEARING |
$33.99
|
|
| 25 | 634570 | 634570 - COVER |
$30.99
|
|
| 26 | 634572 | 634572 - SCREW M4X12 |
$2.99
|
|
| 27 | 631763 | 631763 - FELT |
$9.99
|
|
| 28 | 631764 | 631764 - SCREW |
$8.99
|
|
| 29 | 991913 | 991913 - WASHER |
$2.99
|
|
| 30 | 631765 | 631765 - SCREW |
$8.99
|
|
| 31 | 991941 | 991941 - USE: 290560 |
$2.99
|
|
| 32 | 631766 | 631766 - SCREW |
$2.99
|
|
| 33 | 631767 | 631767 - GUIDE PLATE |
$35.99
|
|
| 34 | 631768 | 631768 - STOPPER |
$6.99
|
|
| 35 | 631769 | 631769 - REINFORCING PLATE |
$16.99
|
|
| 36 | 997244 | 997244 - USE: 127226 |
$2.99
|
|
| 37 | 631770 | 631770 - SCREW |
$2.99
|
|
| 40 | 631772 | 631772 - SNAP RING (RTW22) |
$2.99
|
|
| 41 | 631773 | 631773 - GEAR SHAFT |
$140.99
|
|
| 42 | 631774 | 631774 - O-RING (P41) |
$9.99
|
|
| 45 | 634569 | 634569 - CASING (B) |
$69.99
|
|
| 48 | 631776 | 631776 - WASHER |
$2.99
|
|
| 49 | 631777 | 631777 - CAP SCREW |
$6.99
|
|
| 50 | 631778 | 631778 - CAP SCREW |
$8.99
|
|
| 51 | 631779 | 631779 - JOINT |
$34.99
|
|
| 52 | 631780 | 631780 - GEAR SHAFT B |
$57.99
|
|
| 53 | 631781 | 631781 - BEARING |
$36.99
|
|
| 55 | 631782 | 631782 - GEAR |
$38.99
|
|
| 57 | 631783 | 631783 - PACKING |
$10.99
|
|
| 58 | 643721 | 643721 - PLATE GUARD |
$15.99
|
|
| 59 | 643722 | 643722 - SCREW(M4X10) |
$2.99
|
