Blade

Blade

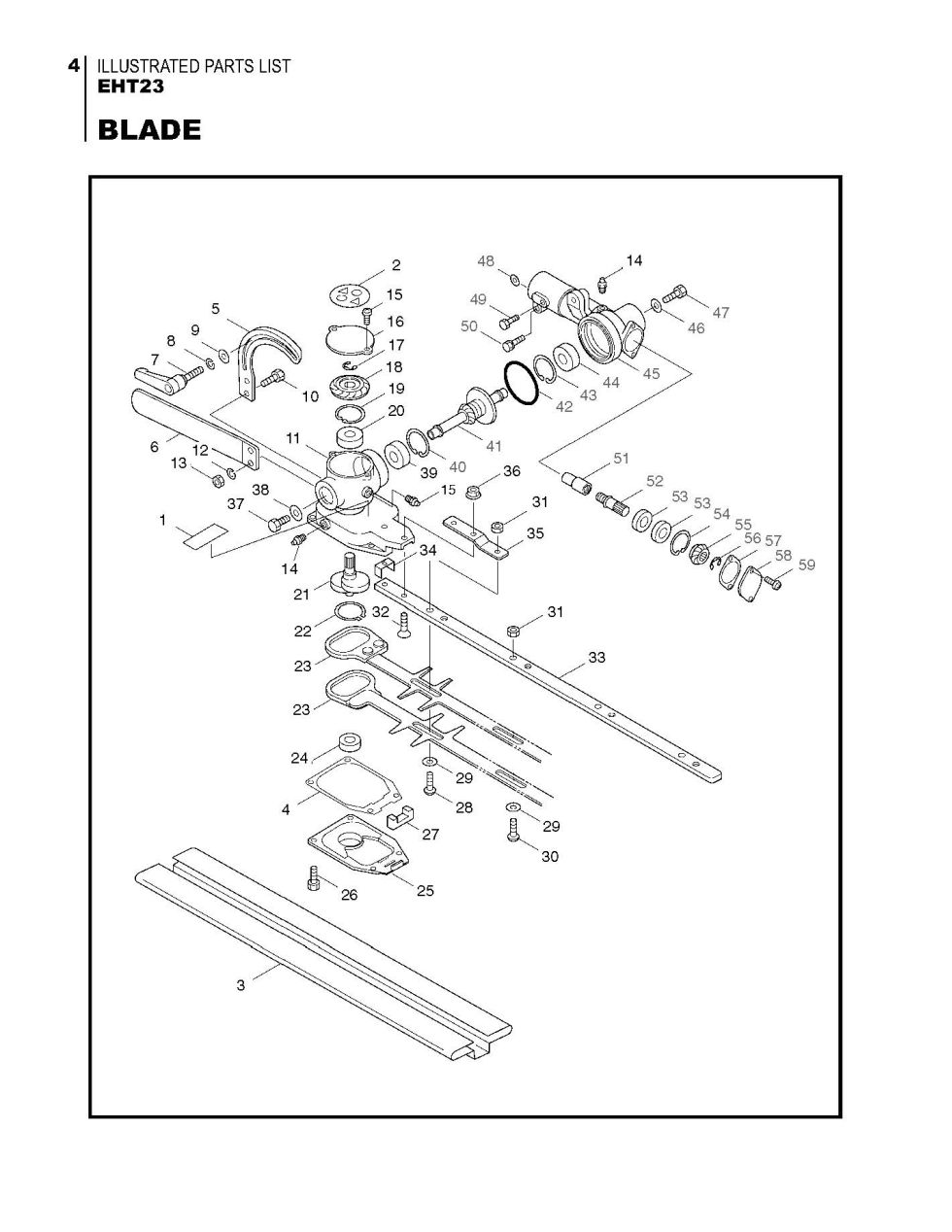

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your EHT23. You have selected the Blade diagram for the Maruyama EHT23 Hedge Trimmers. Below you will find an interactive part diagram for the EHT23 Blade. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the EHT23 parts not shown in this diagram you may select from one of the other EHT23 part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
1 223925 223925 - LABEL
$2.99
3 631785 631785 - BLADE COVER
$15.99
4 634571 634571 - PACKING
$14.99
5 223873 223873 - STAY
$24.99
6 223872 223872 - HANDLE
$16.99
7 631748 631748 - CLAMP LEVER
$82.99
8 631749 631749 - SPRING WASHER
$2.99
9 631750 631750 - WASHER
$2.99
10 631751 631751 - SCREW
$2.99
11 634568 634568 - CASING (A)
$79.99
13 997253 997253 - HEX NUT(M6)
$2.99
14 991937 991937 - NIPPLE, GREASE
$6.99
15 631753 631753 - SCREW
$2.99
16 631754 631754 - PLATE A
$10.99
17 631755 631755 - SNAP RING
$2.99
18 631756 631756 - GEAR
$66.99
19 631757 631757 - SNAP RING
$2.99
20 991933 991933 - USE: 14490
$9.99
21 631758 631758 - CRANK COMPLETE
$78.99
22 631759 631759 - SNAP RING
$2.99
23 631760 631760 - BLADE 16 INCH
$67.99
24 580768 580768 - BALL BEARING
$33.99
25 634570 634570 - COVER
$30.99
26 634572 634572 - SCREW M4X12
$2.99
27 631763 631763 - FELT
$9.99
28 631764 631764 - SCREW
$8.99
29 991913 991913 - WASHER
$2.99
30 631765 631765 - SCREW
$8.99
31 991941 991941 - USE: 290560
$2.99
32 631766 631766 - SCREW
$2.99
33 631767 631767 - GUIDE PLATE
$35.99
34 631768 631768 - STOPPER
$6.99
35 631769 631769 - REINFORCING PLATE
$16.99
36 997244 997244 - USE: 127226
$2.99
37 631770 631770 - SCREW
$2.99
39 631771 631771 - BEARING
$21.99
40 631772 631772 - SNAP RING (RTW22)
$2.99
41 631773 631773 - GEAR SHAFT
$140.99
42 631774 631774 - O-RING (P41)
$9.99
45 634569 634569 - CASING (B)
$69.99
48 631776 631776 - WASHER
$2.99
49 631777 631777 - CAP SCREW
$6.99
50 631778 631778 - CAP SCREW
$8.99
51 631779 631779 - JOINT
$34.99
52 631780 631780 - GEAR SHAFT B
$57.99
53 631781 631781 - BEARING
$36.99
55 631782 631782 - GEAR
$38.99
57 631783 631783 - PACKING
$10.99
58 631784 631784 - PLATE B
$11.99
