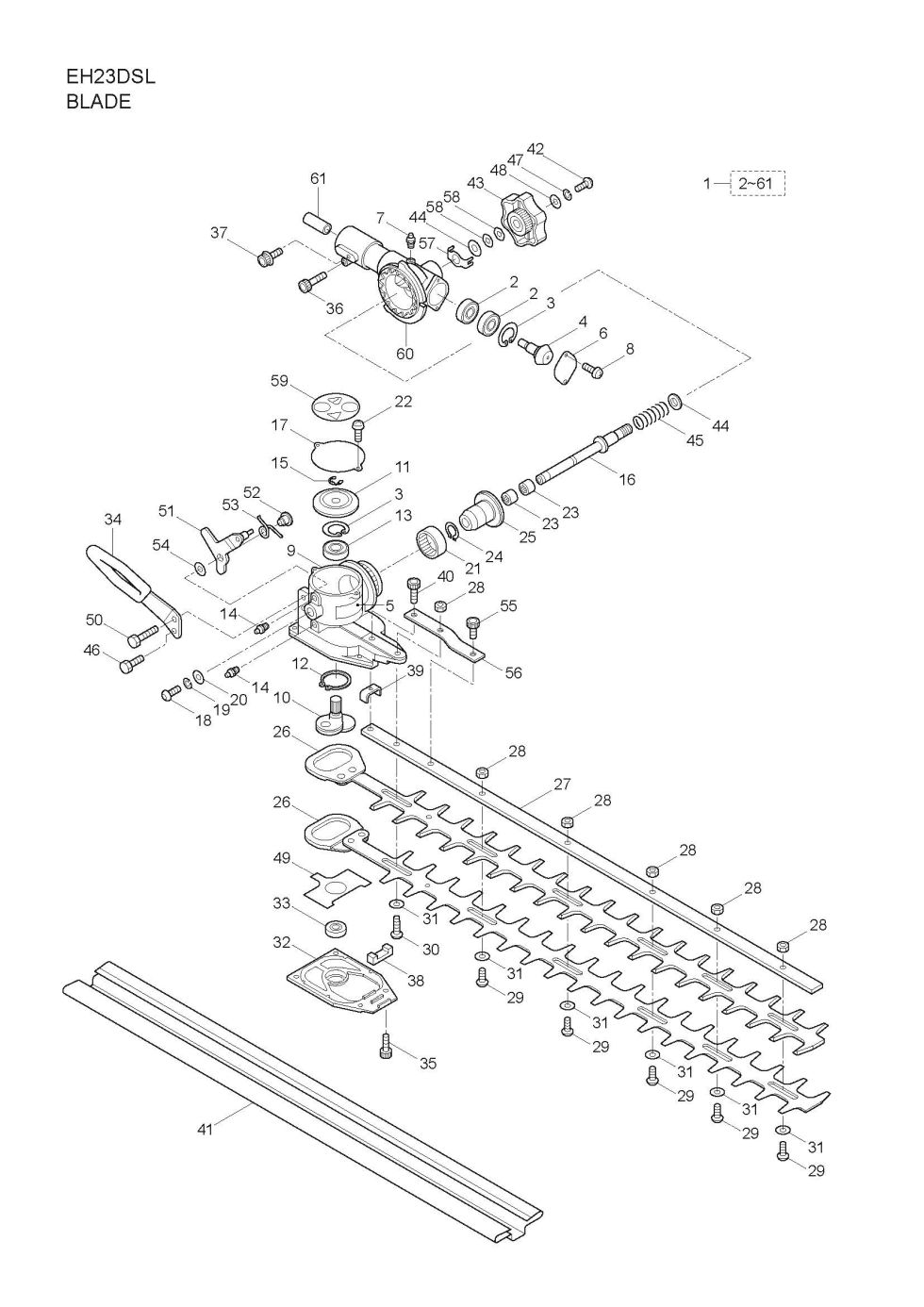

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your EH23DSL. You have selected the Blade diagram for the Maruyama EH23DSL Hedge Trimmers. Below you will find an interactive part diagram for the EH23DSL Blade. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the EH23DSL parts not shown in this diagram you may select from one of the other EH23DSL part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
1 230806 230806 - NS BLADE ASSY
$418.99
2 407313 407313 - BEARING 6000ZZ
$18.99
3 631757 631757 - SNAP RING
$2.99
4 407314 407314 - BEVEL GEAR
$59.99
5 223925 223925 - LABEL
$2.99
6 407315 407315 - COVER
$6.99
7 580766 580766 - USE: 991937
$2.99
8 631753 631753 - SCREW
$2.99
9 407316 407316 - GEARCASE
$155.99
10 407317 407317 - CRANKSHAFT
$77.99
11 407318 407318 - BEVEL GEAR
$70.99
12 631759 631759 - SNAP RING
$2.99
13 582443 582443 - USE: 991933
$9.99
15 631755 631755 - SNAP RING
$2.99
16 407319 407319 - SHAFT
$176.99
17 407320 407320 - COVER
$10.99
18 407321 407321 - SCREW
$2.99
19 631749 631749 - SPRING WASHER
$2.99
20 582436 582436 - WASHER
$2.99
21 407322 407322 - BEARING BTM2512
$45.99
23 407323 407323 - BEARING
$33.99
24 407324 407324 - C-SHAPED STOP RING
$2.99
25 407325 407325 - BEVEL GEAR
$84.99
26 407326 407326 - BLADE
$91.99
27 407327 407327 - SUPPORT S600
$30.99
28 580764 580764 - USE: 991941
$2.99
29 631765 631765 - SCREW
$8.99
30 407328 407328 - SCREW
$6.99
31 991913 991913 - WASHER
$2.99
32 407329 407329 - RECEIVER
$36.99
33 631771 631771 - BEARING
$21.99
34 407330 407330 - HANDLE
$27.99
35 407331 407331 - BOLT
$2.99
36 631777 631777 - CAP SCREW
$6.99
37 631778 631778 - CAP SCREW
$8.99
38 407332 407332 - FELT
$20.99
39 407333 407333 - PLATE
$6.99
40 407334 407334 - BOLT
$5.99
41 407335 407335 - BLADE COVER
$28.99
42 407336 407336 - CAP SCREW
$2.99
43 407337 407337 - KNOB
$12.99
44 407338 407338 - WASHER
$2.99
45 407339 407339 - SPRING
$11.99
46 631770 631770 - SCREW
$2.99
49 407340 407340 - SLIDE PLATE
$21.99
50 407341 407341 - BOLT
$2.99
51 407342 407342 - LEVER
$38.99
52 407343 407343 - BUSHING
$10.99
53 407344 407344 - SPRING
$6.99
54 646471 646471 - WASHER
$2.99
55 407345 407345 - BOLT
$2.99
56 407346 407346 - REINFORCING PLATE
$9.99
57 407347 407347 - PLATE
$24.99
58 407348 407348 - WAVE WASHER
$2.99
59 407349 407349 - LABEL
$9.99
60 407312 407312 - JOINT CASE
$73.99
61 631779 631779 - JOINT
$34.99
