 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
.jpg) |

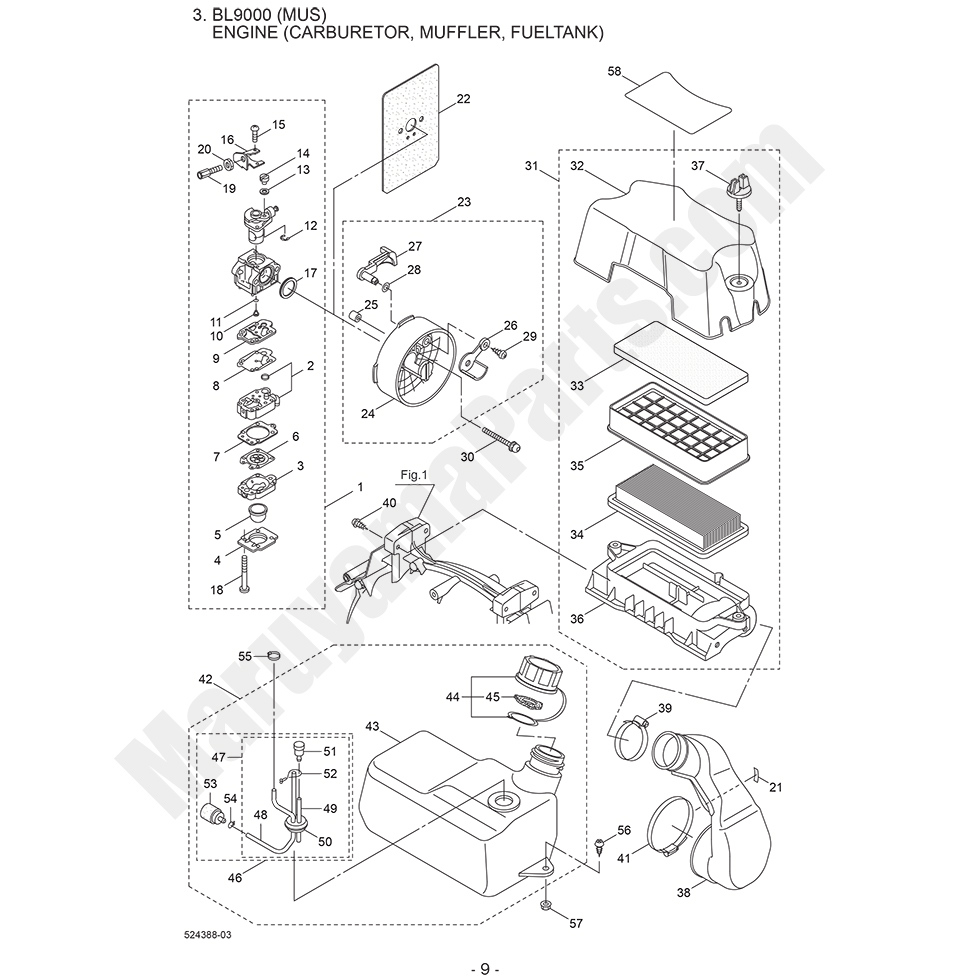

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 276045 | 276045 - CARBURETOR ASS'Y BL9 |
$127.99
|
|
| 2 | 263739 | 263739 - PUMP BODY |
$49.99
|
|
| 3 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 4 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 5 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 6 | 283905 | 283905 - METERRING DIAPHRAGM |
$15.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 9 | 282576 | 282576 - GASKET |
$8.99
|
|
| 10 | 286900 |
$20.99
|
||
| 11 | 261871 | 261871 - O-RING |
$2.99
|
|
| 12 | 261876 | 261876 - E-RING |
$2.99
|
|
| 13 | 264678 | 264678 - WASHER |
$2.99
|
|
| 14 | 261658 | 261658 - SWIVEL |
$18.99
|
|
| 15 | 261875 | 261875 - SCREW |
$2.99
|
|
| 16 | 264677 | 264677 - BRACKET |
$20.99
|
|
| 17 | 261657 | 261657 - PACKING |
$10.99
|
|
| 18 | 262996 | 262996 - SCREW |
$2.99
|
|
| 19 | 261877 | 261877 - ADJUSTER |
$6.99
|
|
| 20 | 261878 | 261878 - NUT |
$2.99
|
|
| 21 | 277762 |
$2.99
|
||
| 22 | 276134 | 276134 - GASKET BL9000 |
$2.99
|
|
| 23 | 276150 | 276150 - Case Assembly |
$20.99
|
|
| 24 | 276151 |
$15.99
|
||
| 25 | 277830 | 277830-SLEEVE-BL9000 |
$5.99
|
|
| 26 | 276152 | 276152 |
$2.99
|
|
| 27 | 276153 | 276153 - LEVER BL9000 |
$2.99
|
|
| 28 | 284816 | 284816 - Washer |
$2.99
|
|
| 29 | 269032 | 269032 - SCREW |
$2.99
|
|
| 30 | 274106 | 274106-CAP SCREW BL9000 |
$2.99
|
|
| 31 | 276463 |
$90.99
|
||
| 32 | 276155 |
$38.99
|
||
| 33 | 276143 | 276143-ELEMENT BL9000 |
$8.99
|
|
| 34 | 276139 | 276139-ELEMENT BL9000 |
$28.99
|
|
| 35 | 276157 | 276157-AIR CLEANER CASE BL9000 |
$9.99
|
|
| 36 | 276159 |
$30.99
|
||
| 37 | 276999 | 276999 |
$11.99
|
|
| 38 | 276161 | 276161 - Intake Pipe |
$36.99
|
|
| 39 | 277547 |
$16.99
|
||
| 40 | 123194 | 123194 - TAPPING SCREW(M6X18) |
$2.99
|
|
| 41 | 277548 |
$23.99
|
||
| 42 | 276351 |
$106.99
|
||
| 43 | 275903 | 275903 - Fuel Tank |
$50.99
|
|
| 44 | 131319 |
131319 - Fuel Cap Assembly (obsolete) use part #289046 |
$19.99
|
|
| 45 | 287058 | 287058 - GASKET |
$10.99
|
|
| 46 | 276092 | 276092 - Fuel Pipe Pickup Ass |
$63.99
|
|
| 47 | 276355 |
$46.99
|
||
| 50 | 268065 | 268065 - GROMMET |
$8.99
|
|
| 51 | 261590 | 261590 - BREATHER SUB ASSY |
$12.99
|
|
| 52 | 261117 | 261117 - CLIP |
$2.99
|
|
| 53 | 267328 |
267328 - FUEL FILTER ASSY (obsolete) use part #277887 |
$11.99
|
|
| 55 | 131328 | 131328 - CLAMP |
$2.99
|
|
| 56 | 127221 | 127221 - SCREW M6X16 |
$2.99
|
|
| 57 | 125277 | 125277 - NUT |
$2.99
|
|
| 58 | 275978 |
$20.99
|
