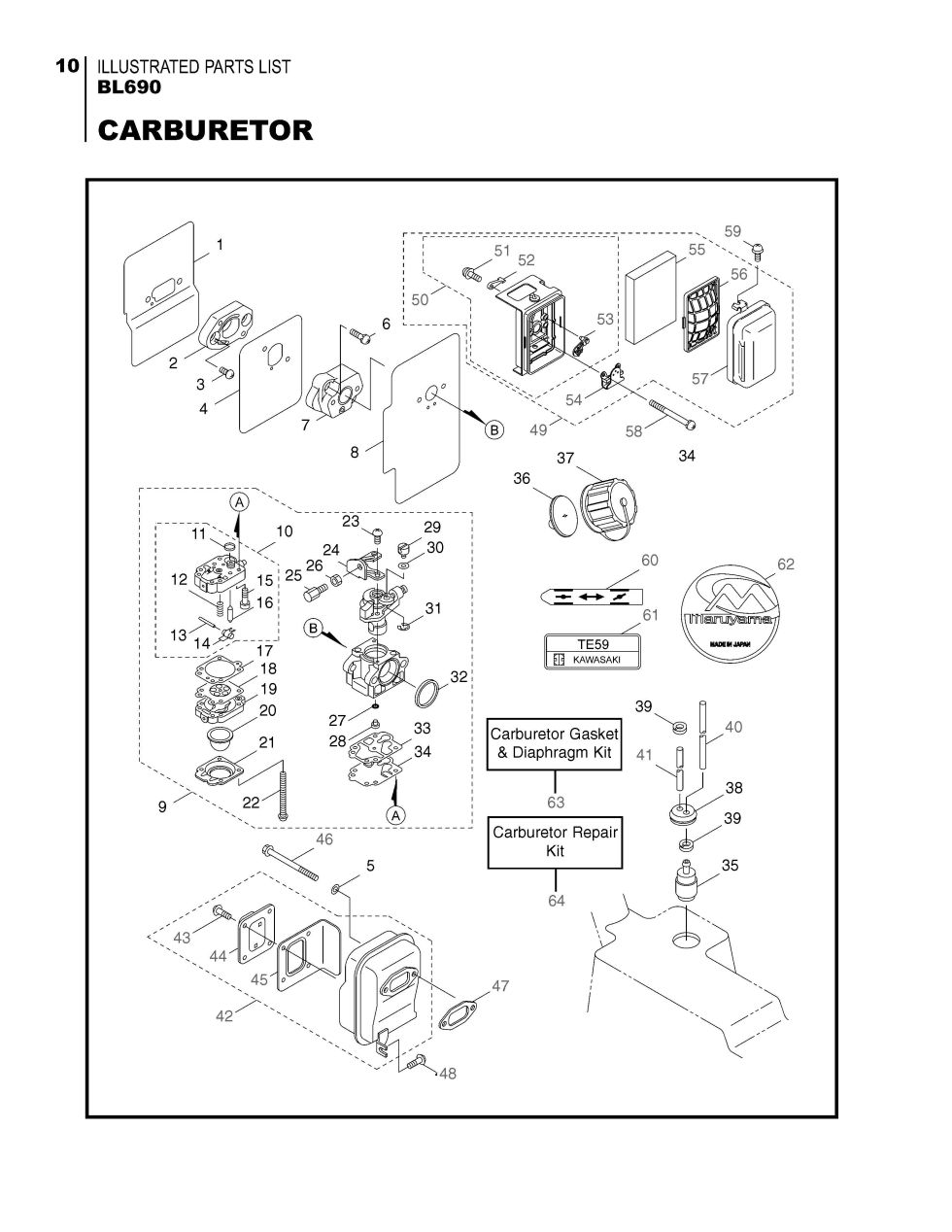

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL690. You have selected the Carburetor diagram for the Maruyama BL690 Blowers. Below you will find an interactive part diagram for the BL690 Carburetor. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL690 parts not shown in this diagram you may select from one of the other BL690 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 645932 | 645932 - GASKET |
$19.99
|
|
| 2 | 625867 | 625867 - ADAPTER |
$38.99
|
|
| 3 | 625868 | 625868 - SCREW |
$2.99
|
|
| 5 | 636764 | 636764 - NLA WASHER |
$2.99
|
|
| 6 | 579565 | 579565 - SCREW |
$2.99
|
|
| 7 | 645934 | 645934 - INSULATOR |
$19.99
|
|
| 8 | 645933 | 645933 - GASKET |
$14.99
|
|
| 10 | 626822 | 626822 - BODY |
$61.99
|
|
| 11 | 624430 | 624430 - FILTER |
$23.99
|
|
| 12 | 624434 | 624434 - SPRING |
$13.99
|
|
| 13 | 624433 | 624433 - PIN |
$8.99
|
|
| 14 | 624429 | 624429 - LEVER |
$19.99
|
|
| 15 | 624432 | 624432 - SCREW |
$11.99
|
|
| 16 | 624431 | 624431 - FLOAT VALVE |
$18.99
|
|
| 18 | 261873 | 261873 - DIAPHRAGM ASSY |
$17.99
|
|
| 19 | 598413 | 598413 - BODY |
$79.99
|
|
| 20 | 261874 | 261874 - PRIMER |
$10.99
|
|
| 21 | 598409 | 598409 - COVER, PRIMER PUMP |
$27.99
|
|
| 22 | 262996 | 262996 - SCREW |
$2.99
|
|
| 23 | 577179 | 577179 - SCREW |
$8.99
|
|
| 24 | 624525 | 624525 - BRACKET |
$35.99
|
|
| 25 | 598418 | 598418 - SCREW |
$14.99
|
|
| 26 | 261878 | 261878 - NUT |
$2.99
|
|
| 27 | 261871 | 261871 - O-RING |
$2.99
|
|
| 28 | 628092 | 628092 - MAIN JET #52 |
$26.99
|
|
| 29 | 598415 | 598415 - ARM |
$21.99
|
|
| 30 | 624532 | 624532 - WASHER |
$7.99
|
|
| 31 | 577175 | 577175 - SNAP RING |
$8.99
|
|
| 32 | 261657 | 261657 - PACKING |
$10.99
|
|
| 33 | 577184 | 577184 - GASKET |
$22.99
|
|
| 34 | 577185 | 577185 - DIAPHRAGM |
$18.99
|
|
| 35 | 625872 | 625872 - FILTER, FUEL |
$28.99
|
|
| 36 | 630564 |
630564 - USE: 425442 (obsolete) use part #425442 |
$29.99
|
|
| 37 | 625871 | 625871 - CAP ASSY |
$26.99
|
|
| 38 | 597949 | 597949 - GROMMET |
$18.99
|
|
| 39 | 597948 | 597948 - USE: 649366 |
$2.99
|
|
| 40 | 625873 | 625873 - TUBE |
$24.99
|
|
| 41 | 625874 | 625874 - TUBE(3X6X130L) |
$13.99
|
|
| 42 | 636763 | 636763 - MUFFLER ASSY |
$113.99
|
|
| 43 | 634366 | 634366 - SCREW |
$2.99
|
|
| 44 | 634430 | 634430 - SPARK ARRESTER |
$39.99
|
|
| 45 | 645930 | 645930 - NLA GASKET |
$10.99
|
|
| 46 | 636765 | 636765 - BOLT |
$11.99
|
|
| 47 | 636762 | 636762 - GASKET |
$21.99
|
|
| 48 | 943276 | 943276 - SCREW |
$2.99
|
|
| 49 | 645935 | 645935 - AIR FILTER ASSY. |
$76.99
|
|
| 50 | 645936 | 645936 - AIR FILTER CASE ASSY |
$39.99
|
|
| 51 | 628550 | 628550 - SCREW |
$2.99
|
|
| 52 | 640943 | 640943 - LEVER |
$12.99
|
|
| 53 | 645937 | 645937 - MACHINED DISC |
$13.99
|
|
| 54 | 645938 | 645938 - BAFFLE |
$12.99
|
|
| 55 | 642040 | 642040 - AIR FILTER ELEMENT |
$30.99
|
|
| 56 | 640946 | 640946 - GRATE |
$16.99
|
|
| 57 | 642041 | 642041 - CAP |
$23.99
|
|
| 58 | 645939 | 645939 - SCREW |
$8.99
|
|
| 59 | 642043 | 642043 - SCREW |
$2.99
|
|
| 60 | 598438 | 598438 - NLA LABEL |
$2.99
|
|
| 61 | 627554 | 627554 - NLA LABEL |
$2.99
|
|
| 62 | 123954 | 123954 - LABEL |
$2.99
|
|
| 63 | 840260 | 840260 - CARB GASKET/DIAPHRAG |
$26.99
|
