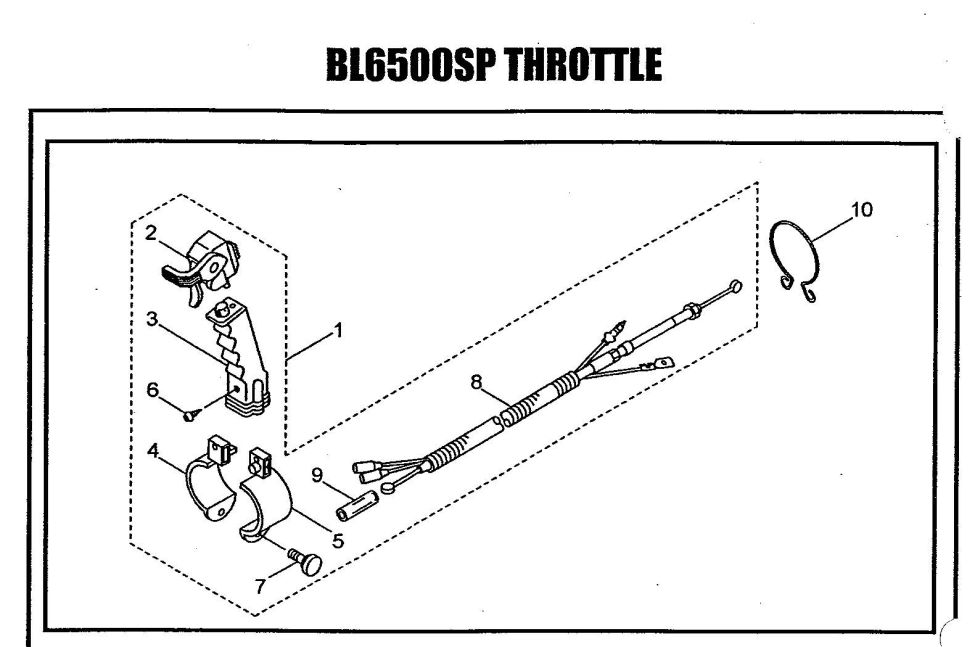

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL6500SP, BL6500HA. You have selected the BL6500SP Throttle diagram for the Maruyama BL6500SP, BL6500HA Blowers. Below you will find an interactive part diagram for the BL6500SP, BL6500HA BL6500SP Throttle. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL6500SP, BL6500HA parts not shown in this diagram you may select from one of the other BL6500SP, BL6500HA part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
.jpg) |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 121756 | 121756 - THROTTLE ASSY. |
$83.99
|
|
| 2 | 116049 | 116049 - THROTTLE ASSY |
$32.99
|
|
| 3 | 118811 | 118811 - GRIP |
$23.99
|
|
| 4 | 118813 | 118813 - BAND A |
$8.99
|
|
| 5 | 118814 | 118814 - BAND B |
$8.99
|
|
| 6 | 120319 | 120319 - USE: 127300 |
$2.99
|
|
| 7 | 117488 | 117488 - KNOB BOLT |
$10.99
|
|
| 8 | 121634 | 121634 - USE: 636757 |
$29.99
|
|
| 9 | 121427 | 121427 - TUBE |
$2.99
|
|
| 10 | 119173 | 119173 - CLAMP |
$19.99
|
