 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |

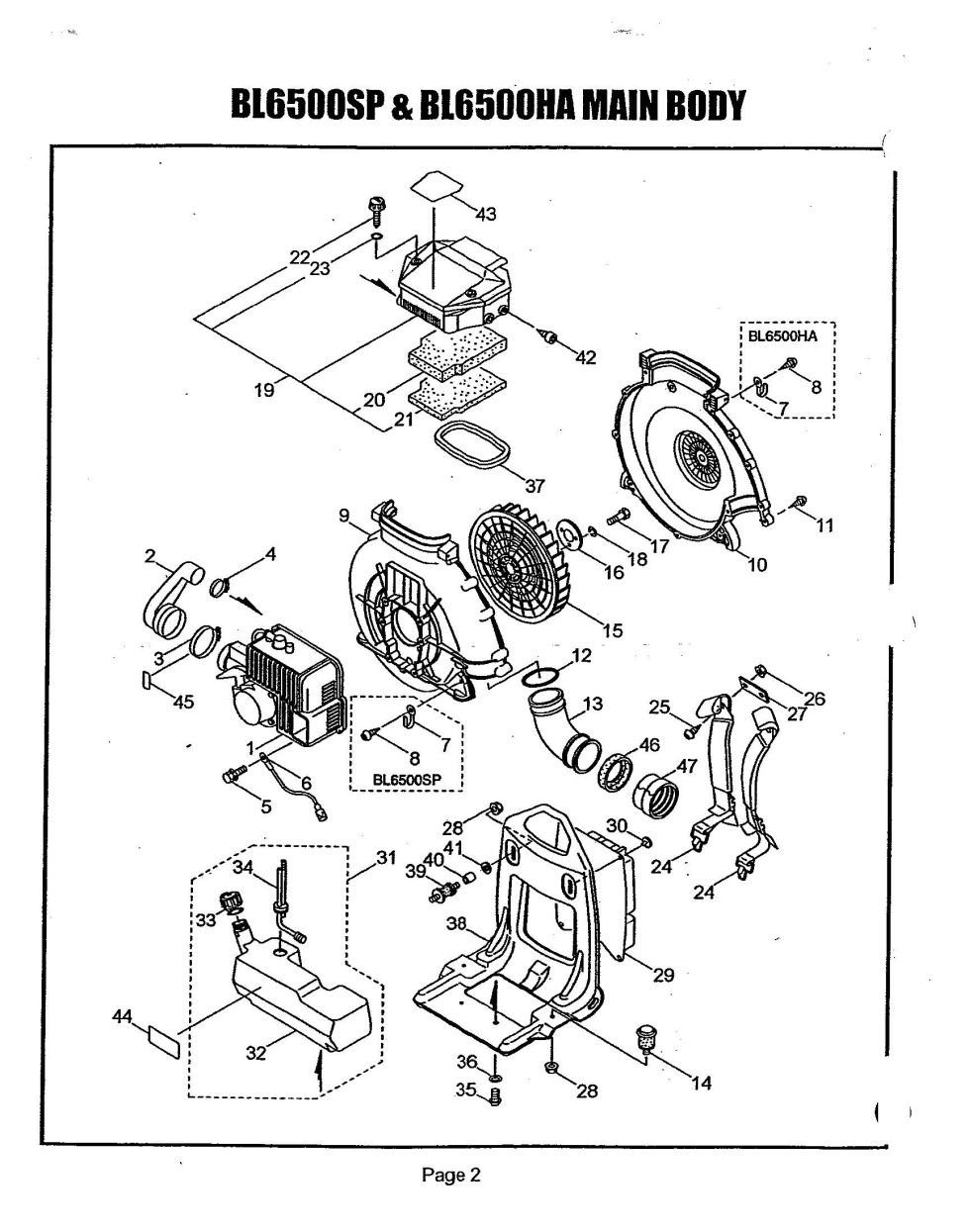

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL6500SP, BL6500HA. You have selected the Main Body diagram for the Maruyama BL6500SP, BL6500HA Blowers. Below you will find an interactive part diagram for the BL6500SP, BL6500HA Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL6500SP, BL6500HA parts not shown in this diagram you may select from one of the other BL6500SP, BL6500HA part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 121763 | 121763 - ENGINE SHROUD |
$103.99
|
|
| 2 | 119616 | 119616 - INLET PIPE |
$28.99
|
|
| 3 | 119685 | 119685 - NLA HOSE BAND |
$8.99
|
|
| 4 | 119684 | 119684 - HOSE BAND |
$7.99
|
|
| 5 | 092544 | 092544 - BOLT |
$2.99
|
|
| 6 | 108634 | 108634 - GROUND CABLE |
$6.99
|
|
| 7 | 103550 | 103550 - CLAMP |
$2.99
|
|
| 9 | 121706 | 121706 - NLA FAN CASE (E) |
$59.99
|
|
| 10 | 121707 | 121707 - FAN CASE (S) |
$59.99
|
|
| 11 | 118530 | 118530 - USE: 89538 |
$2.99
|
|
| 12 | 018236 | 018236 - O-RING |
$6.99
|
|
| 13 | 115243 | 115243 - ELBOW |
$31.99
|
|
| 14 | 120615 | 120615 - SHOCK ABSORBER |
$22.99
|
|
| 15 | 118724 | 118724 - FAN |
$68.99
|
|
| 16 | 118248 | 118248 - SS DOUGHNUT PLATE |
$5.99
|
|
| 17 | 119558 | 119558 - BOLT |
$2.99
|
|
| 18 | 012502 | 012502 - SPRING WASHER |
$2.99
|
|
| 19 | 119364 |
119364 - AIR FILTER ASSY. W/ (obsolete) use part #634055 |
$50.99
|
|
| 20 | 119664 |
119664 - NS ELEMENT (obsolete) use part #122951 |
$24.99
|
|
| 21 | 119665 |
119665 - NS ELEMENT (obsolete) use part #122951 |
$24.99
|
|
| 22 | 114463 | 114463 - KNOB |
$8.99
|
|
| 23 | 014187 | 014187 - O-RING |
$2.99
|
|
| 24 | 120625 | 120625 - KNAPSACK BAND |
$30.99
|
|
| 26 | 550132 | 550132 - USE: 127237 |
$2.99
|
|
| 28 | 109704 | 109704 - USE: 127228 |
$2.99
|
|
| 29 | 119177 | 119177 - PAD |
$31.99
|
|
| 30 | 840543 | 840543 - NLA PAD RETAINER |
$2.99
|
|
| 31 | 119388 | 119388 - FUEL TANK ASSY |
$61.99
|
|
| 32 | 120154 |
120154 - FUEL TANK (obsolete) use part #127673 |
$31.99
|
|
| 33 | 119390 | 119390 - FUEL CAP ASSY |
$26.99
|
|
| 34 | 119391 | 119391 - FUEL FILTER |
$39.99
|
|
| 35 | 081414 | 081414 - SCREW |
$2.99
|
|
| 36 | 015479 | 015479 - WASHER |
$2.99
|
|
| 37 | 120536 | 120536 - PACKING |
$19.99
|
|
| 39 | 026223 | 026223 - BUFFER |
$17.99
|
|
| 40 | 120616 | 120616 - SPACER |
$2.99
|
|
| 41 | 120617 | 120617 - WASHER |
$2.99
|
|
| 42 | 120077 | 120077 - SCREW |
$2.99
|
|
| 43(BL6500SP) | 121764 | 121764 - LABEL |
$20.99
|
|
| 44 | 121132 | 121132 - LABEL(BP400) |
$5.99
|
|
| 45 | 119613 | 119613 - LABEL |
$5.99
|
|
| 46 | 119161 | 119161 - BAND |
$7.99
|
|
| 47 | 119160 | 119160 - COLLAR |
$5.99
|
|
| 48(BL6500HA) | 121782 | 121782 - NLA LABEL |
$17.99
|
