 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

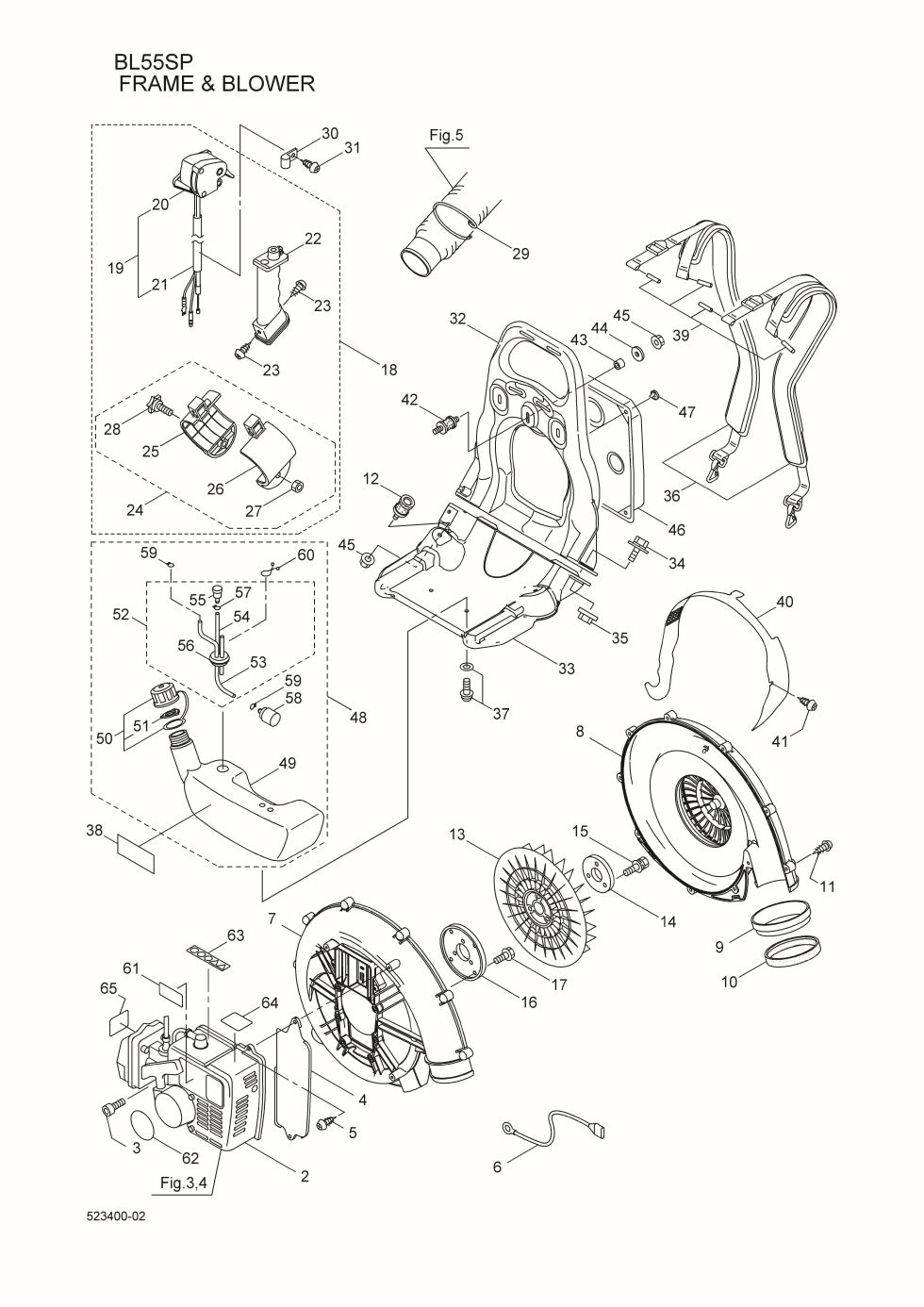

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 125623 | 125623 - NS ENGINE TK45 |
$511.99
|
|
| 3 | 128142 | 128142 - BOLT |
$2.99
|
|
| 4 | 125624 | 125624 - GASKET |
$15.99
|
|
| 5 | 127295 | 127295 - SCREW |
$2.99
|
|
| 6 | 108634 | 108634 - GROUND CABLE |
$6.99
|
|
| 7 | 126625 | 126625 - VALVE SEAT |
$13.99
|
|
| 8 | 125410 | 125410 - FAN CASE / FRAME SID |
$46.99
|
|
| 9 | 119160 | 119160 - COLLAR |
$5.99
|
|
| 10 | 119161 | 119161 - BAND |
$7.99
|
|
| 11 | 129618 | 129618 - TAPPING SCREW |
$2.99
|
|
| 12 | 120615 | 120615 - SHOCK ABSORBER |
$22.99
|
|
| 13 | 118724 | 118724 - FAN |
$68.99
|
|
| 14 | 118248 | 118248 - SS DOUGHNUT PLATE |
$5.99
|
|
| 15 | 189369 | 189369 - BOLT |
$2.99
|
|
| 16 | 126344 | 126344 - ADAPTOR |
$17.99
|
|
| 17 | 125629 | 125629 - BOLT |
$2.99
|
|
| 18 | 126302 | 126302 - THROTTLE ASSY |
$90.99
|
|
| 19 | 125782 | 125782 - THROTTLE LEVER ASS'Y |
$55.99
|
|
| 20 | 125756 | 125756 - THROTTLE |
$34.99
|
|
| 21 | 125757 | 125757 - THROTTLE CABLE ASSY |
$32.99
|
|
| 22 | 118811 | 118811 - GRIP |
$23.99
|
|
| 23 | 127297 | 127297 - SCREW |
$2.99
|
|
| 24 | 125184 | 125184 - BAND ASS'Y |
$8.99
|
|
| 25 | 123132 | 123132 - BAND |
$2.99
|
|
| 26 | 123134 | 123134 - BAND |
$2.99
|
|
| 27 | 127298 | 127298 - NUT M6 |
$2.99
|
|
| 28 | 127299 |
127299 - KNOB BOLT (obsolete) use part #122610 |
$5.99
|
|
| 29 | 128924 | 128924 - CLAMP |
$2.99
|
|
| 30 | 126049 | 126049 - Clamp |
$2.99
|
|
| 31 | 127300 | 127300 - Tapping Screw |
$2.99
|
|
| 32 | 130766 | 130766 - BACKPACK FRAME A |
$61.99
|
|
| 33 | 125429 | 125429 - BACKPACK FRAME B |
$35.99
|
|
| 34 | 127301 | 127301 - BOLT |
$2.99
|
|
| 35 | 127228 | 127228 - NUT |
$2.99
|
|
| 36 | 130036 | 130036 - SHOULDER STRAP ASS'Y |
$29.99
|
|
| 37 | 125561 | 125561 - SCREW |
$2.99
|
|
| 38 | 121132 | 121132 - LABEL(BP400) |
$5.99
|
|
| 39 | 125717 | 125717 - SHAFT |
$2.99
|
|
| 40 | 131374 | 131374 - SHEET |
$27.99
|
|
| 41 | 127786 | 127786 - Screw |
$2.99
|
|
| 42 | 101877 | 101877 - BUFFER |
$21.99
|
|
| 43 | 120616 | 120616 - SPACER |
$2.99
|
|
| 44 | 120617 | 120617 - WASHER |
$2.99
|
|
| 46 | 130221 | 130221 - CUSHION PAD |
$21.99
|
|
| 47 | 100749 | 100749 - PAD RETAINER |
$2.99
|
|
| 48 | 131498 | 131498 - FUEL TANK ASS'Y |
$93.99
|
|
| 49 | 131493 | 131493 - FUEL TANK |
$39.99
|
|
| 50 | 289046 | 289046 - TANK CAP ASS'Y |
$19.99
|
|
| 51 | 287058 | 287058 - GASKET |
$10.99
|
|
| 52 | 131292 | 131292 - FUEL TUBE ASS'Y |
$41.99
|
|
| 53 | 131291 | 131291 - PIPE |
$22.99
|
|
| 54 | 131290 | 131290 - OVER FLOW PIPE |
$12.99
|
|
| 55 | 261590 | 261590 - BREATHER SUB ASSY |
$12.99
|
|
| 56 | 268065 | 268065 - GROMMET |
$8.99
|
|
| 57 | 261117 | 261117 - CLIP |
$2.99
|
|
| 58 | 267328 |
267328 - FUEL FILTER ASSY (obsolete) use part #277887 |
$11.99
|
|
| 60 | 131328 | 131328 - CLAMP |
$2.99
|
|
| 62 | 130600 | 130600 - LABEL |
$9.99
|
|
| 63 | 266959 | 266959 - LABEL |
$6.99
|
|
| 64 | 285188 | 285188 - LABEL |
$2.99
|
|
| 65 | 125749 | 125749 - LABEL |
$2.99
|
